Equipments

Clinical Centrifuges

<h2>What Are Clinical Centrifuges?</h2>
&nbsp;
Clinical centrifuges separate whole blood into diagnostic components&mdash;serum or plasma, red blood cells, white blood cells, and platelets&mdash;by spinning standard blood collection tubes (5&ndash;50 mL vacutainer formats) at 300&ndash;6,000 RPM (typically 3,000&ndash;3,500 &times;g) for defined cycle times. They are the core specimen-processing instrument in clinical chemistry, hematology, immunology, coagulation, and molecular diagnostic laboratories. Standard serum separation runs at 3,000 &times;g for 10 minutes after a 30-minute clotting period; plasma preparation from anticoagulated tubes runs at 2,000&ndash;3,000 &times;g for 10&ndash;15 minutes. Clinical centrifuges used in CLIA-regulated labs must meet Clinical Laboratory Improvement Amendments performance requirements and be documented for routine calibration and maintenance.
&nbsp;
<h2 dir="ltr">What you will find:</h2>
&nbsp;
<ul>
<li dir="ltr" style="font-family: helvetica, arial, sans-serif;" aria-level="1">
Z207-A Clinical Centrifuge: Compact clinical centrifuge with an 8 x 15 mL rotor for routine sample processing
</li>
<li dir="ltr" style="font-family: helvetica, arial, sans-serif;" aria-level="1">
Sprint&trade; Clinical Centrifuge (6H): Reliable unit designed for consistent clinical lab applications
</li>
<li dir="ltr" style="font-family: helvetica, arial, sans-serif;" aria-level="1">
Sprint&trade; 8 Clinical Centrifuge: Fixed-angle rotor centrifuge for efficient sample separation
</li>
<li dir="ltr" style="font-family: helvetica, arial, sans-serif;" aria-level="1">
Sprint&trade; 6H Plus Clinical Centrifuge: Swing-out rotor centrifuge for improved sample handling
</li>
<li dir="ltr" style="font-family: helvetica, arial, sans-serif;" aria-level="1">
DLAB DM0412 Clinical Centrifuge: Complete system with rotor and adapter for versatile lab use
</li>
</ul>
&nbsp;
<h2>How to Choose a Clinical Centrifuge</h2>
&nbsp;
Speed Range and Maximum RCF
Most routine clinical serum and plasma preparation requires 3,000&ndash;3,500 &times;g. Clinical centrifuges with a maximum RCF of 3,500&ndash;6,000 &times;g cover all standard blood tube protocols and allow headroom for gel separator tube requirements, which vary by manufacturer. Platelet-poor plasma preparation requires up to 10,000 &times;g, making higher-speed models appropriate for coagulation laboratories.
Rotor Type: Swing-Out vs. Fixed-Angle
Swing-out rotors produce a horizontal sediment layer perpendicular to the tube wall, simplifying serum and plasma aspiration while reducing red blood cell carryover into the supernatant. Fixed-angle rotors pellet at higher RCF per RPM and are faster for pelleting applications, although the diagonal sediment interface is less convenient for aspiration. Swing-out rotors are commonly preferred for routine blood tube processing, while fixed-angle models are often selected for higher-throughput workflows.
Tube Capacity and Format
Clinical centrifuge rotors typically hold 6&ndash;24 blood collection tube positions per run. Confirm that the rotor accommodates your required tube dimensions, including 13 mm OD tubes for 5&ndash;7 mL samples and 16 mm OD tubes for 10 mL samples, and verify adapter availability for 15 mL and 50 mL conical tubes when needed.
Refrigerated vs. Room Temperature
Refrigerated models operating between 2&ndash;8&deg;C are commonly used for coagulation factors, complement panels, cryoglobulin testing, and research specimens where analyte stability is temperature-sensitive. Room-temperature centrifuges are generally sufficient for routine chemistry and immunology workflows completed within standard processing times.
Programmable Acceleration and Deceleration
Adjustable acceleration and deceleration profiles help prevent gel barrier displacement in serum separator tubes and preserve platelet and buffy coat layers in specialized protocols. Manufacturers of gel separator tubes often specify both maximum RCF and acceleration limits, making programmable controls beneficial in high-throughput environments.
CLIA and CAP Compliance
Maintain documentation for centrifuge model numbers, serial numbers, rotor identification, and calibration verification schedules. Many laboratory quality programs include periodic speed verification using a calibrated tachometer, with records retained to support audit and accreditation requirements.
&nbsp;
<h2>Specifications Context</h2>
&nbsp;
Serum separation at 3,000 &times;g for 10 minutes is a commonly referenced protocol for routine chemistry and immunology testing. Gel separator tube manufacturers, including BD Vacutainer, Greiner, and Sarstedt, publish recommended RCF ranges to support proper gel barrier migration and minimize sample rejection due to displacement. Laboratory protocols should follow the specific recommendations provided for each tube type.
RCF is calculated using the formula RCF = 1.118 &times; 10&minus;5&nbsp;&times; r &times; N2, where&nbsp;r&nbsp;is the rotor radius in millimeters and&nbsp;N is RPM. Rotor-specific calculations provide more accurate results than generic RPM conversion tables. Modern clinical centrifuges commonly feature brushless DC motors, offering quieter operation, reduced maintenance requirements, and extended service life, along with programmable acceleration and deceleration settings to support sensitive specimen processing.
Ready to upgrade your lab's performance? <a href="https://mbpinc.net/contact-us">Contact with the expert team</a> at Molecular Biology Products and find the best clinical centrifuge for your lab today.&nbsp;

Clinical Centrifuge

GCC-S-Group-GCC-E Quick Start Guide

GCC-S-Group-GCC-S Quick Start Guide

Flyer

GCC-S-Group- Equipment Catalog

Series Dx Balance Specifications

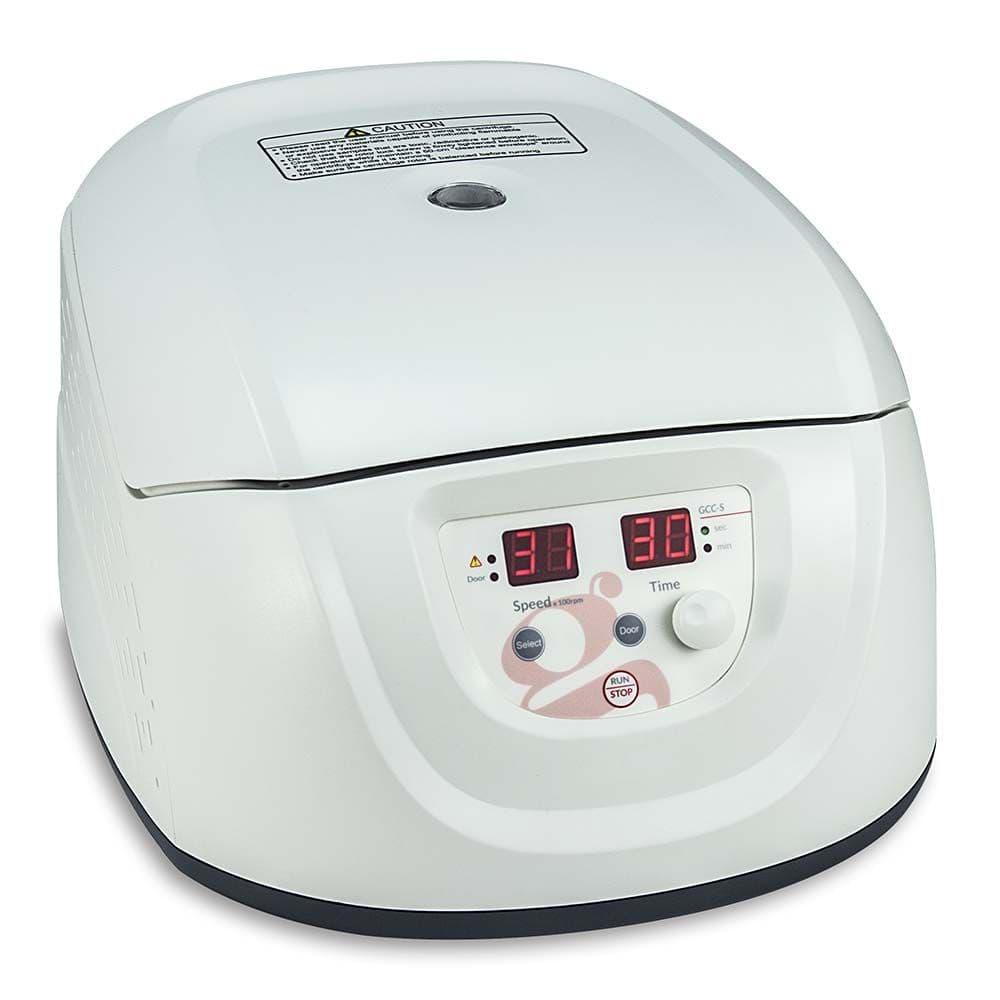

GCC Clinical Centrifuge Series

GCC-S by MBP is the GCC Clinical Centrifuge Series — bench-top clinical centrifuge with 300–4500 rpm speed range, 12-position rotor, LED display, independent speed and time control, fast acceleration/deceleration, door interlock, and excessive-speed detection. Tube adapters included. Available in GCC-S, GCC-E, and GCC-E50 configurations. Order from MBP, USA.

Manufacture

Centrifuge, Clinical, 12-Place, 120-240v, 50/60Hz, US Plug (Includes: 12-Place Rotor for use with: 5mL, 7mL and 10mL Tubes and 8 x 15mL Tubes, Sleeves and Risers)

Centrifuge, Clinical, Enhanced Model, 12-Place, 120-240v, 50/60Hz (Includes: 12-Place Rotor for use with: 5mL, 7mL and 10mL Tubes and 8 x 15mL Tubes, Sleeves and Risers)

Centrifuge, Clinical, Enhanced Model, 6-Place, 120-240v, 50/60Hz (Includes: 6-Place Rotor with Sleeves & Risers)

GCC-P-Group-GCC-P Quick Start Guide

GCC-P-Group-Equipment Catalog

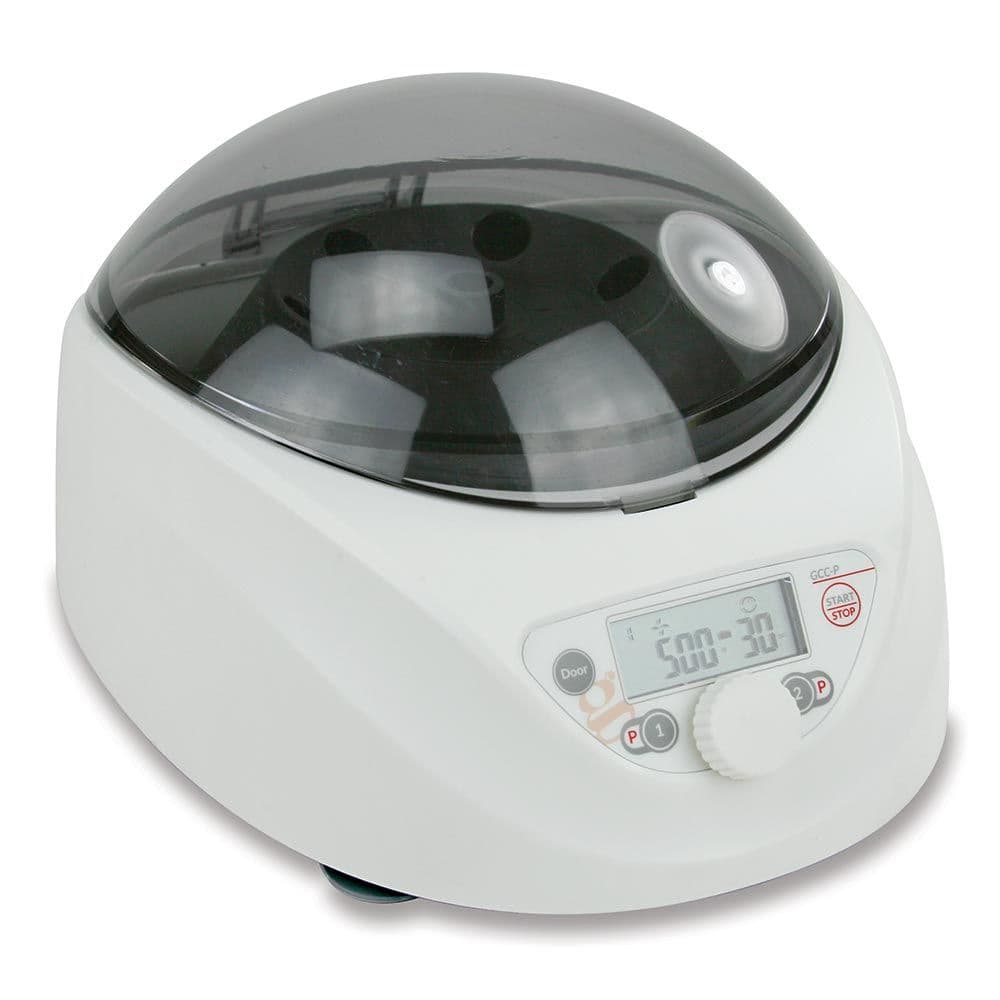

GCC-P Portable Clinical Centrifuge Series

GCC-P by Globe Scientific is a portable clinical centrifuge running on 12 VDC (car adapter included) or optional 110/240 VAC. Speed range 300&#8211;5,000 rpm; max RCF 3,250 &times; g; 6-position fixed-angle rotor for 15 mL tubes (adapters included for 5, 7, 10, 1.5, and 2.0 mL tubes). Timer: 1 sec to 99 min; 2 programmable memory locations; automatic lid lock; 11.5 lb / 5.2 kg. Order at mbpinc.net or contact customerservice@mbpinc.net.

Speed Range

Maximum RCF

Speed Accuracy

Rotor Capacity

Run Time

Power

Display

Acceleration Time

Braking Time

Dimensions

Weight

Centrifuge, Clinical, Portable, with Two Program Locations, 12VDC Car Adaptor, w/ 6-Place 15mL Rotor

Car Power Adaptor, GCC-P, 12VDC

Tube Adaptors, GCC-P, for 1.5/2.0mL tubes, 6 EA

Tube Adaptors, GCC-P, for 5mL tubes, 6 EA

Wall Power Adaptor, GCC-P, 100-240VAC, 50/60Hz

Microcentrifuges

<h2>What Are Microcentrifuges?</h2>
&nbsp;
Microcentrifuges are compact, high-speed benchtop centrifuges designed specifically for 0.2&ndash;2.0 mL microtubes and PCR strips, operating at 10,000&ndash;21,000 &times;g in a fixed-angle rotor. They are the primary centrifugation instrument in molecular biology, biochemistry, and clinical molecular diagnostics labs: nucleic acid pellet formation after ethanol precipitation, spin-column DNA/RNA extraction and PCR cleanup steps (typically specified at 10,000&ndash;16,000 &times;g for 30&ndash;60 seconds), cell debris clearance from lysates, protein precipitation supernatant recovery, and brief sample clarification before downstream analysis. Standard benchtop microcentrifuges reach 14,000&ndash;15,000 RPM (16,000&ndash;21,000 &times;g), while high-speed models reach up to 21,000 RPM and approximately 31,000 &times;g. Refrigerated variants maintain 0&ndash;4&deg;C for temperature-sensitive workflows.
&nbsp;
<h2>What You Will Find:</h2>
&nbsp;
<ul>
<li>High-Speed Microcentrifuges: For faster sample processing</li>
<li>Refrigerated Microcentrifuges: For temperature-sensitive handling</li>
<li>Benchtop Microcentrifuge Systems: For routine lab working</li>
<li>5D Digital Microcentrifuge: With customizable time and speed options</li>
<li>Mini Microcentrifuges: Compact units for rapid spin-down tasks</li>
<li>MC-24 High-Speed Microcentrifuge: Features touch screen control and high speed</li>
<li>Microplate Centrifuges: Developed for PCR plates and strip formats</li>
<li>Microcentrifuge Accessories: For expanded tube flexibility and compatibility</li>
</ul>
&nbsp;
<h2>How to Choose a Microcentrifuge</h2>
&nbsp;
Maximum RCF vs. Protocol Requirements
Most spin-column kit protocols specify 10,000&ndash;16,000 &times;g. A standard microcentrifuge reaching 14,000&ndash;16,000 &times;g covers these requirements. If your lab performs alcohol-precipitation DNA/RNA pelleting (12,000&ndash;16,000 &times;g) or virus concentration steps (20,000+ &times;g), choose a model reaching at least 16,000 &times;g. High-speed models reaching 21,000&ndash;31,000 &times;g are available for specialized applications.
Rotor Tube Positions and Capacity
Most microcentrifuge rotors hold 12&ndash;24 &times; 1.5/2.0 mL tubes per run. Laboratories processing larger batches benefit from 24-position rotors, while smaller research groups may find 12-position models sufficient. Confirm that adapters for 0.5 mL and 0.2 mL tubes are available if required by your workflows.
Refrigerated vs. Ambient Temperature
Refrigerated microcentrifuges are recommended for RNA extraction, protein stability studies, cell viability applications, and any protocol requiring 4&deg;C centrifugation. Standard room-temperature models are suitable for routine DNA extraction and PCR cleanup procedures.
Noise Level and Footprint
Modern brushless DC motor microcentrifuges typically operate at &le;52 dB, making them quieter than older brush-motor systems. Most units occupy 200&ndash;300 mm of bench width, so confirm that sufficient clearance is available when the lid is fully open.
Safety Features
Essential safety features include lid-lock mechanisms, imbalance detection, and over-speed protection. Laboratories handling infectious materials should verify that aerosol-tight sealed rotor lids are available for the selected model.
&nbsp;
<h2>Specifications Context</h2>
&nbsp;
The standard spin-column step in most commercial DNA/RNA extraction kits specifies 10,000&ndash;16,000 &times;g for 30&ndash;60 seconds. Always confirm the rotor's maximum RCF from manufacturer specifications, since RPM values alone do not account for differences in rotor radius.
Microcentrifuge rotors are typically fixed-angle designs positioned at approximately 45&deg;, providing efficient pelleting and short sedimentation paths. Aerosol-tight sealed lids allow safe handling of BSL-2 samples and other applications requiring biocontainment. Modern brushless DC motors offer quieter performance, improved speed accuracy, and longer service intervals than legacy brush-motor systems.
Your search for high-performance microcentrifuges is over. <a href="https://mbpinc.net/contact-us">Contact now</a> with the expert team at Molecular Biology Products Inc. and get the right microcentrifuge for your lab today.

Microcentrifuge

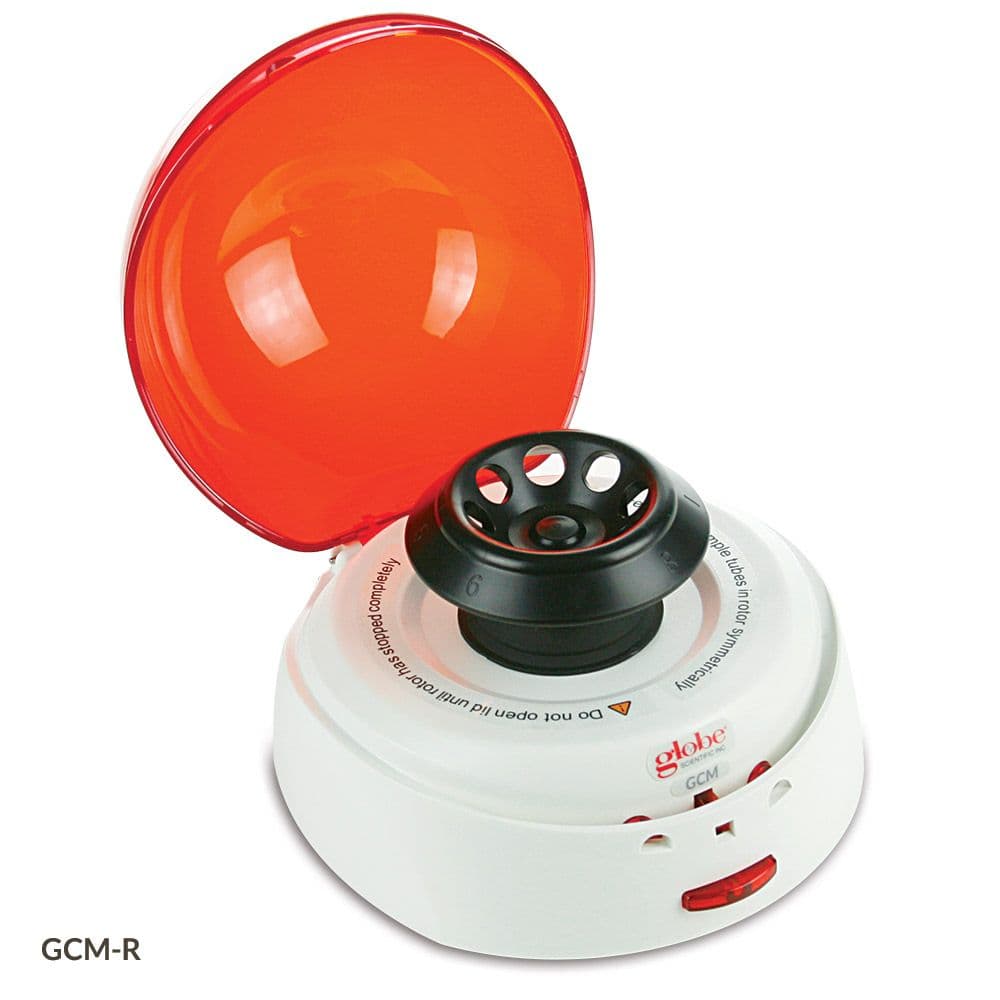

GCM Refrigerated Microcentrifuge Series

GCM-R-24 by Globe Scientific is a high-speed refrigerated microcentrifuge reaching 15,000 RPM (21,380 &times; g) with a temperature range of -20&deg;C to 40&deg;C, cooling to 4&deg;C within 7 minutes at full capacity. The 24-place aluminum rotor and aerosol containment lid are fully autoclavable, supporting safe processing of temperature-sensitive biological samples at noise levels below 54 dB.

Maximum Speed

Temperature Range

Dimension (W x D x H)

Warranty

Centrifuge, Micro, Refrigerated, 24-Place, High Speed, 120v, 60Hz, US Plug (Includes: 24-Place Rotor with Lid for 1.5mL and 2.0mL Microcentrifuge Tubes #MC-24-2ML)

Centrifuge, Micro, Refrigerated, 24-Place, High Speed, 230v, 50Hz, UK Plug (Includes: 24-Place Rotor with Lid for 1.5mL and 2.0mL Microcentrifuge Tubes #MC-24-2ML)

Centrifuge, Micro, Refrigerated, 24-Place, High Speed, 230v, 50Hz, EU Plug (Includes: 24-Place Rotor with Lid for 1.5mL and 2.0mL Microcentrifuge Tubes #MC-24-2ML)
