Dry Baths Accessories

<h2>What Are Dry Bath Incubator Accessories?</h2>
&nbsp;
Dry bath accessories are the secondary components that extend or optimize the functionality of a dry block heater: aluminum insert blocks that define the tube format capacity; heated lids that eliminate condensation; external temperature reference probes for calibration verification; and carrying and storage cases for portability. Because the aluminum insert block physically determines which tube formats the dry bath can process, insert block selection is the single most impactful purchase decision after the base unit itself. Most manufacturers supply one insert format as standard with the base unit; labs processing multiple tube formats must purchase additional inserts separately. Select accessories based on the tube formats used in your primary protocols, confirming that inserts are brand- and model-compatible before ordering.
&nbsp;
<h2 dir="ltr">What You Will Find:</h2>
&nbsp;
<ul>
<li dir="ltr" aria-level="1">
Specialized Heating Blocks: High-conductivity aluminum blocks tailored for everything from 0.2ml PCR strips and 1.5ml centrifuge tubes to larger 50ml conical vessels.
</li>
<li dir="ltr" aria-level="1">
Custom &amp; Solid Block Options: Versatile solid blocks suitable for slides or custom machining, alongside blocks specifically drilled for HPLC vials and cuvettes.
</li>
<li dir="ltr" aria-level="1">
Precision Monitoring &amp; Power: External temperature probes for direct sample tracking and 12V vehicle adapters to maintain thermal control during mobile laboratory work.
</li>
</ul>
&nbsp;
<h2>How to Choose Dry Bath Accessories</h2>
&nbsp;
Aluminum insert blocks: format selection
Insert blocks are precision-machined from aluminum to accept specific tube formats with tight well tolerances (typically within plus or minus 0.1 mm of the tube's outer diameter). Common formats include: 24 wells for 0.5 mL tubes; 15-16 wells for 1.5 mL microcentrifuge tubes; 12-15 wells for 2 mL microcentrifuge tubes; 8-strip configuration for 0.2 mL PCR strip tubes; 12 wells for 15 mL conical tubes; 6 wells for 50 mL conical tubes; and a flat surface (no wells) for microplates or irregular vessels. Inserts are not universally interchangeable across brands; confirm the insert fits the specific dry bath model's block holder dimensions and, for models with auto-recognition, that the insert carries the required auto-recognition contact.
Insert material and thermal conductivity.
Aluminum (Al 6061 alloy) is the standard material for dry bath inserts due to its high thermal conductivity (approximately 167 W/m K), low density, and machinability for tight tolerances. Some specialty inserts for aggressive chemical applications use hard-anodized aluminum or stainless steel, with lower thermal conductivity but better chemical resistance. Always use manufacturer-supplied or manufacturer-approved aluminum inserts; after-market inserts with inferior tolerances reduce thermal contact and degrade temperature uniformity.
Heated lid accessories
Heated lid accessories for dry baths are sold separately for many base unit models or as an upgrade kit. When selecting a heated lid, confirm: (1) it fits the specific block footprint and height of your dry bath model; (2) the lid temperature range covers the required anti-condensation temperature (typically 60-110 degrees C); (3) the lid temperature is independently controlled from the block; and (4) the lid surface material is non-reactive with samples. For protein and enzyme protocols, a lid temperature 5-10 degrees C above the block temperature is the typical starting point.
External temperature reference probe
An external calibration probe (typically a thin RTD or thermocouple probe rated for direct insertion into a tube well, connected to a calibrated digital reference thermometer) verifies that the temperature inside the well matches the instrument's displayed setpoint. External probe verification is required for GLP-compliant and regulated laboratory protocols (ISO 9001, CLIA, cGxP) and is good practice annually for any research dry bath. Confirm that the probe diameter fits the insert well format (most probes are 2-5 mm diameter; well diameter varies by tube format) before ordering.
Carrying case for portable dry baths
Mini and portable dry bath models (Labnet PR1MA Mini, and similar) are available with dedicated carrying cases for field applications: point-of-care diagnostics, on-site environmental sampling, and field isothermal PCR or LAMP assays using a 12 V DC automotive power adapter. Carrying cases provide impact protection, secure block holder positioning, and cable management for field use.
&nbsp;
<h2>Specifications Context</h2>
&nbsp;
Aluminum insert block well tolerances of plus or minus 0.1 mm ensure full circumferential contact between the tube outer wall and the block well, maximizing heat transfer and minimizing temperature gradients between the sample and the block setpoint. A loose-fitting insert with 0.5 mm or more of air gap between tube and well reduces heat transfer and can introduce a temperature lag of 1-3 degrees C compared to the block setpoint, systematically underheating samples. Heated lid accessories eliminate condensation-related volume errors of 5-15% that can occur in short (&lt;10 microliter) enzyme reactions at 37-55 degrees C over 30-60 minute incubations. Auto-recognized interchangeable block inserts (where the dry bath unit automatically detects which format insert is installed) are a standard feature on Labnet and similar mid-range dry bath models, improving setup speed and reducing configuration errors.&nbsp;
&nbsp;
Enhance your dry bath setup today&mdash;check out our full range of blocks and <a href="https://mbpinc.net/contact-us">reach out to the MBP team</a> for a quote.

12v vehicle power adapter

The BSH100-A12 by Benchmark Scientific is an optional 12V DC vehicle power adapter for the MyBlock Mini Dry Bath (BSH100 series). Connects to a standard automobile cigarette lighter socket to enable dry-bath incubation in vehicles and mobile field labs without AC wall power.

Manufacture

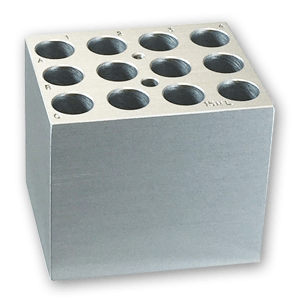

Block, 12 x 15ml centrifuge tubes

BSW15 by Benchmark Scientific is an aluminum dry bath block for 12 x 15 mL centrifuge tubes, with a block height of 3.25 inches. Compatible with Benchmark Scientific BSH5002 myBlock II and BSH1001 dry bath platforms. Delivers uniform dry heat across all 12 tube positions for incubation, thawing, and reagent preparation workflows.

Block, 12 x 15mm or 16mm test tubes

The BSW1516 by Benchmark Scientific is an aluminum dry bath block for 12 x 10 mL test tubes or blood collection tubes (15 mm or 16 mm OD). Block dimensions: 3 x 3.75 x 2 in. Fits BSH1000, BSH5000 MyBlock, and BSH6000 IsoBlock dry bath series. Precision-machined cylindrical wells for consistent temperature uniformity. Sold individually.

Block, 12 x 5.0ml centrifuge tubes (17mm diameter)

The BSW5MT by Benchmark Scientific is an aluminum dry bath block for 12 x 5.0 mL centrifuge tubes (17 mm diameter wells). Compatible with MyBlock BSH5001/BSH5002 and IsoBlock BSH6000 dry baths. Precision-machined wells provide close metal-to-tube contact for consistent temperature delivery across all 12 positions. Sold individually.

Block, 15 x 1.5ml Centrifuge Tubes for Dry Bath with Heated Lid

BSH100-15HL by Benchmark Scientific is a 15 x 1.5 ml aluminum dry bath block designed exclusively for the Benchmark Scientific MyBlock Mini with Heated Lid (BSH200-HL). The heated lid interface prevents condensation on tube caps during incubation, protecting reaction volumes in restriction digests, ligations, and nucleic acid hybridization protocols. Order at mbpinc.net/quickorder using catalog number BSH100-15HL or contact customerservice@mbpinc.net.

Block, 15 x 1.5ml or 2.0ml centrifuge tubes (conical)

BSH100-1520 by Benchmark Scientific is a 15-well conical aluminum dry bath block for the MyBlock™ Mini (BSH100/BSH200), accepting 1.5 mL or 2.0 mL Eppendorf-style centrifuge tubes. Conical well geometry maximizes tube-to-aluminum contact for uniform ±0.2°C heating across all 15 positions — for enzyme incubation, denaturation, heat-shock, hybridization, and bead-based assay protocols.

Block, 15 x 12-13mm tubes, 60mm tall, no lid

The BSH100-1213 by Benchmark Scientific is a 15-position dry bath block for the MyBlock Mini (BSH100) incubator, sized for 12–13 mm diameter tubes (vacutainers and 13 mm glass tubes) at 60 mm well depth. No lid included. Sold individually; MyBlock Mini instrument sold separately.

Block, 15 x HPLC or Cryovial tubes

The BSH100-1232 by Benchmark Scientific is a machined-aluminum dry bath block with 15 positions for 2ml HPLC autosampler vials or 2ml cryovial tubes (standard 12mm OD), designed for the MyBlock Mini dry bath incubator (BSH100 series). Its 15-position layout matches HPLC autosampler tray increments and supports batch cryovial thawing, bioanalytical sample incubation, and parallel derivatization reactions without water bath contamination risk. Order via mbpinc.net/quickorder using SKU BSH100-1232 or contact customerservice@mbpinc.net.

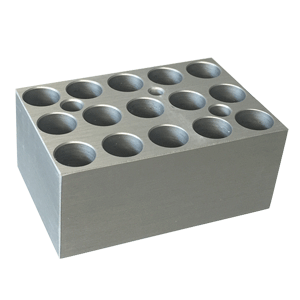

Block, 15 x1.5ml centrifuge tubes

BSH100-15 by Benchmark Scientific is a 15-tube 1.5 mL microtube heating block for the MyBlock Mini dry bath incubator (B3000-M / B3001-M), rated from ambient +5°C to 100°C.

Block, 2 x 50ml centrifuge tubes

BSH100-500 by Benchmark Scientific is an interchangeable aluminum block for the MyBlock Mini Dry Bath, configured with 2 positions for standard 50 ml centrifuge tubes (Falcon-style conical bottom). It replaces any other MyBlock Mini block in seconds and extends the dry bath to large-volume heating and cooling applications. Note: not compatible with the MyBlock Mini lid/cover. Order with catalog number BSH100-500 at <a href="https://www.mbpinc.net/quickorder">mbpinc.net/quickorder</a> or contact <a href="mailto:customerservice@mbpinc.net">customerservice@mbpinc.net</a>.

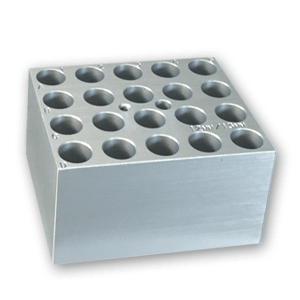

Block, 20 x 12mm or 13mm test tubes

BSW13 by Benchmark Scientific is a 20-well aluminum dry bath block for 12 mm or 13 mm OD test tubes — the standard format for 5/7 mL round-bottom glass and blood collection tubes used in serology, biochemistry, and clinical chemistry. Holds 20 tubes per run for batch colorimetric, agglutination, and enzyme assays at precise temperatures. Contact MBP to confirm instrument compatibility before ordering.

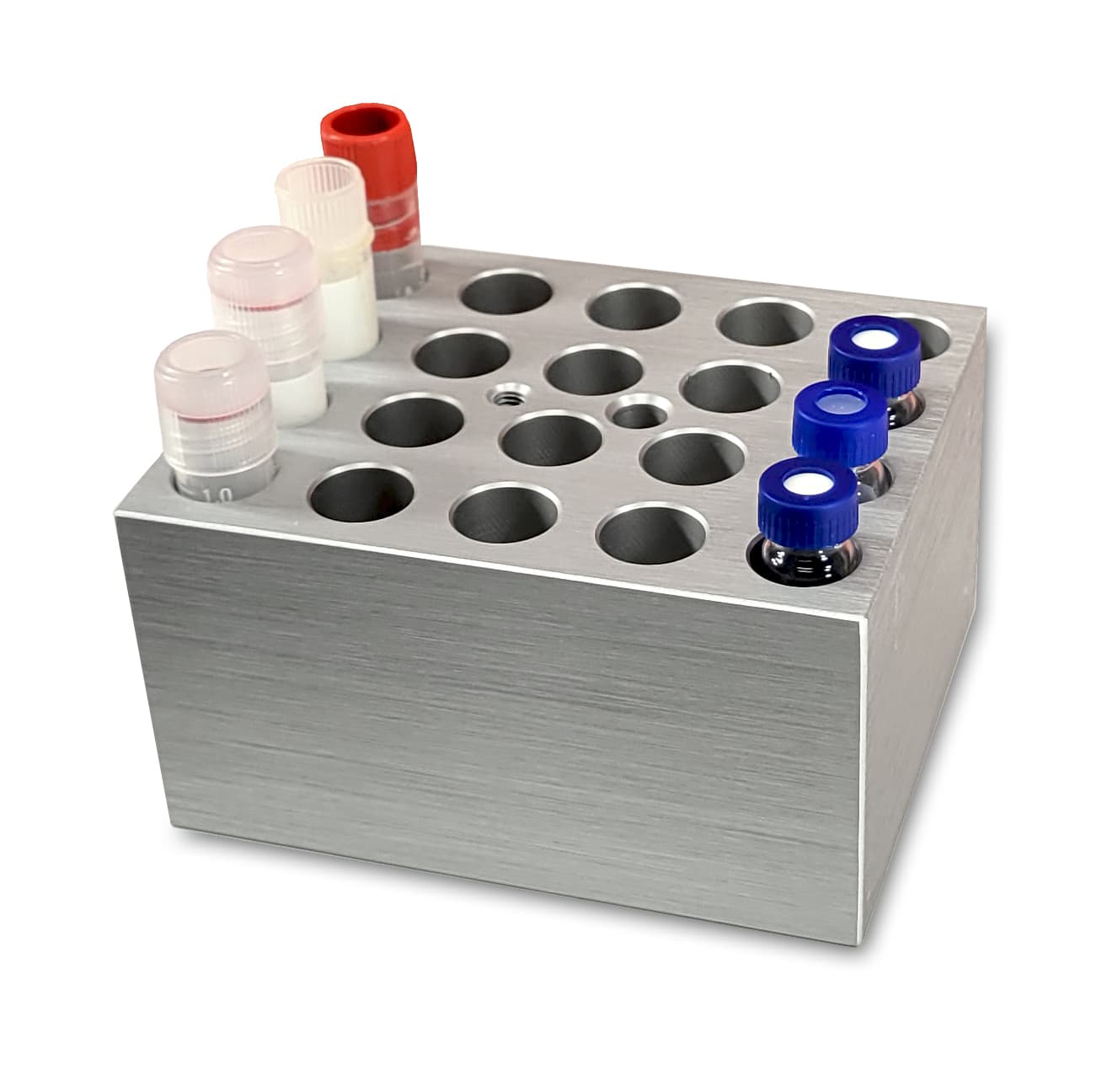

Block, 20 x HPLC/ CryoVial

The BSW1232 by Benchmark Scientific is a precision-machined aluminum dry bath block with 20 wells for 12 mm x 32 mm HPLC autosampler vials and CryoVials. Compatible with BSH1000 Traditional, BSH5000 myBlock, and BSH6000 IsoBlock digital dry baths. Sold separately from dry bath units. Not a Quick-Flip block.
