Reversible Combs, 22/12 teeth, for E1200-CS1 and E1101-CS1 Casting Stand, pk 2

E1101-COMB1 by Accuris is a pack of two reversible SureCast™ gel combs with 22 teeth on one side and 12 teeth on the reverse, for the E1200-CS1 and E1101-CS1 gel casting stands. The tapered double-sided design handles both small-volume (22-tooth) and large-volume (12-tooth) wells without stocking separate combs; both sides are multichannel-pipette compatible.

Manufacture

UV Transilluminators Accessories

<h2>What Are UV Transilluminator Accessories?</h2>
&nbsp;
UV transilluminator accessories fall into four functional groups: personal protective equipment (PPE) that guards operators against UV radiation; optical components that improve image quality and camera compatibility; maintenance and consumable parts that sustain instrument performance; and light-conversion accessories that extend the transilluminator's functional range. Together, these accessories make gel visualization workflows safer, more reproducible, and more cost-effective over the instrument's lifespan. PPE includes UV-blocking polycarbonate face shields and safety glasses that block radiation below 380 nm; standard glass lab safety glasses transmit UV and are inadequate. Optical accessories include orange/amber emission filter plates (longpass above 500-580 nm), portable darkroom viewing hoods, and UV-to-blue light converter plates (Visi-Blue style) that place a phosphor layer over UV lamps to emit 460-470 nm blue light, enabling SYBR Safe and GelGreen imaging without purchasing a separate blue-LED instrument. Match each accessory to the transilluminator model (wavelength, viewing surface dimensions, lamp power, and pin configuration) to ensure compatibility before ordering.
&nbsp;
<h2 dir="ltr">What You Will Find:</h2>
&nbsp;
<ul>
<li dir="ltr" aria-level="1">
SmartBlue Viewing Glasses for UV and blue light provide high-contrast protection, allowing you to visualize fluorescent bands safely and clearly.
</li>
<li dir="ltr" aria-level="1">
Amber Covers for Transilluminators act as durable, high-clarity replacement shields that ensure a secure viewing experience during gel documentation.
</li>
</ul>
&nbsp;
<h2>How to Choose UV Transilluminator Accessories</h2>
&nbsp;
Personal protective equipment
All operators using open-top UV transilluminators at 254-365 nm require UV-blocking polycarbonate face shields or safety glasses rated to block UV below 380 nm. Orange-tinted polycarbonate viewing glasses - such as Accuris SmartBlue Plus Viewing Glasses - serve a dual function: blocking UV from 302 nm transilluminators and blocking blue-LED light at 470 nm from blue-light systems, while allowing band fluorescence above 500 nm to pass for direct visualization. Arms and forearms require UV-opaque lab coat sleeves during gel cutting.
Emission filters for photography
Orange and amber longpass filter plates (cutoff at 515-580 nm) block the UV excitation source while transmitting the gel-band fluorescence (590 nm for EtBr and GelRed; 525 nm for SYBR Safe and SafeView Safe-Green). For EtBr at 590 nm emission, a 560 nm longpass is standard. For SYBR Safe/SafeView Safe-Green at 525 nm emission, a 500-515 nm longpass provides better signal transmission. Clip-on filter plates attach to handheld cameras or smartphones for photography without a dedicated gel doc system; the amber filter unit in blue-LED transilluminators filters to approximately 580 nm.
Portable viewing hoods
Portable viewing hoods create a contained darkroom environment over the transilluminator surface by blocking ambient room light, enabling gel photography using a handheld digital camera or smartphone with an amber filter without requiring a dedicated gel documentation enclosure. Most hoods include a UV-blocking face shield integrated into the hood opening, a removable bottom panel for placement over the transilluminator, and a felt or light-proof curtain. These are particularly useful for lower-throughput labs that do not justify a standalone gel doc system.
UV-to-blue light converter plates
Converter plates contain a phosphor layer that, when placed on a UV transilluminator surface, absorbs UV emission and re-emits blue light at 460-470 nm. This converts an existing UV system into a functional blue-LED transilluminator for SYBR Safe, GelGreen, and SafeView Safe-Green gels without purchasing a separate instrument. Three sizes are typically available to match standard transilluminator viewing areas; an amber camera filter is required for photography with converter plates.
Filter glass protectors
UV-transmitting filter protectors are thermoplastic (UV-transparent polycarbonate) sheets placed directly on the filter glass surface to protect the costly UV filter from gel cuts, scrapes, and dropped objects during gel manipulation. They are solarization-resistant and maintain UV transmission above 85% for their rated lifespan. Replacing a protector is far less expensive than replacing a cracked filter glass.
Replacement UV lamp tubes
Fluorescent UV lamp tubes are rated at 2,000-5,000 hours and degrade progressively; bands requiring longer exposure times or appearing dimmer at standard settings signal that replacement is needed. Tubes must match the transilluminator's wavelength (254, 302, or 365 nm), wattage (8 W or 15 W), tube length (15-25 cm), and pin configuration (bi-pin G13 is common). Confirm the exact specifications from the transilluminator manual before ordering replacements.
&nbsp;
<h2>Specifications Context</h2>
&nbsp;
UV lamp output intensity is expressed in milliwatts per square centimeter at the filter surface; research-grade transilluminators specify 5-25 mW/cm2 at 302 nm. Replacement tubes should be sourced to match the original lamp's wavelength and pin configuration exactly; using the wrong wavelength (e.g., 365 nm instead of 302 nm) changes dye excitation efficiency and may require different exposure times. Polycarbonate UV shields block over 99% of UV radiation at 302 nm; acrylic-based covers block UV below 380 nm and are used on hinged blocking covers. UV-to-blue converter plates are increasingly popular in labs transitioning from EtBr to safer dyes, as they allow the use of existing UV equipment with new non-mutagenic stains without capital equipment replacement.&nbsp;
&nbsp;
Don&rsquo;t settle for substandard protection. Browse our transilluminator accessories and <a href="https://mbpinc.net/contact-us">hit up the MBP team</a> for a custom quote today.

SmartBlue Viewing Glasses

E4000-VG1 by Accuris are SmartBlue amber-filtered viewing glasses that block 465 nm blue LED emission and 100% of UV for hands-free, eye-protective gel visualization and DNA band excision. Compatible with SmartBlue (E4000), other 465 nm blue LED transilluminators, and UV transilluminators. Works with SYBR Green, SmartGlow, GelGreen, SYBR Safe, and ethidium bromide-stained gels.

SmartBlue™ Replacement Amber Cover

The E4000-AC by Accuris Instruments is a replacement amber filter cover for the SmartBlue™ Blue Light Transilluminator series (E4000, E4100 Mini). Measures 10 × 12 × 0.5 inches; latex-free. Restores blue-light eye protection and gel-viewing performance to the SmartBlue instrument.

Imaging and Gel Visualization Accessories

SmartDoc Orange photo filter, for imaging Green Stains on Blue Light Illuminators

E5001-ORANGE by Accuris Instruments is an orange PMMA photo filter (12 mm aperture) for the SmartDoc imaging enclosure, blocking ~465 nm blue LED excitation and passing green fluorescent emission from SYBR Green, SmartGlow™, GelStar™, and GelGreen stains for clear smartphone gel documentation. Included with E5001-SDB; sold separately as a replacement or spare.

SmartDoc UV Blocking Mat

E5000-MAT by Benchmark Scientific (Accuris) is the UV Blocking Mat for the SmartDoc gel imaging enclosure, used when the SmartDoc's 19 × 19 cm base sits on a larger UV transilluminator. The mat covers the exposed transilluminator surround to block UV scatter during gel documentation.

SmartDoc band UV Blocking Filter, optimized for use with E3100 transilluminator

E5001-UVBLOCK by Accuris Instruments is a UV-blocking filter for the SmartDoc imaging enclosure, optimized for use with the Accuris E3100 myView UV transilluminator — blocking UV excitation wavelengths and passing visible gel band emission for safe, clear smartphone or camera gel photography without UV sensor damage. Fits SmartDoc E5001-SD and E5001-SDB enclosures.

SmartDoc band pass filter, 535nm, for imaging Green Stains on UV transilluminator

E5001-535 by Accuris Instruments is a 535 nm narrow band pass filter for the SmartDoc™ 2.0 gel documentation system, designed to image green nucleic acid stains — GelGreen, SYBR Green, SYBR Safe — on a UV transilluminator. The 8 × 8 in filter (0.5 lbs) slots into the SmartDoc 2.0 enclosure, blocking UV excitation light while transmitting the 535 nm emission band for high-contrast gel documentation without a dedicated gel doc station.

SmartDoc band pass filter, 590nm, for imaging EtBr on UV transilluminator

E5001-590 by Accuris Instruments is a 590 nm narrow bandpass filter for the SmartDoc gel documentation enclosure, designed to block UV excitation and transmit the ~590 nm emission peak from ethidium bromide-stained gels on a UV transilluminator — enabling clear smartphone or camera gel photography without UV interference. Sold individually; requires a compatible SmartDoc enclosure (E5001-SD or E5001-SDB).

Electrophoresis System

InstaView™ Electrophoresis System-InstaView Brochure

Extra casting set for 10.5 x 10 cm and 10.5 x 6 cm gels. Includes stand, trays, E1101-COMB1 double-sided combs

Extra double-sided combs, 22/12 teeth, for E1200-CS1 Casting Set, pack of 2

Orange filter cover for mini LED transilluminator

myGel InstaView™ (E1200 and E230) Illuminator Accessories

myGel InstaView Package: E1200 and E2301 touch screen power supply

E1200-PSP by Accuris is the myGel™ InstaView™ Package, bundling the E1200 InstaView™ Gel Tank System (465 nm blue LED in-tank transilluminator, 10.5×10 cm and 10.5×6 cm gel sizes, magnetic safety interlock) with the E2301 MyVolt™ Touch touchscreen power supply. Compatible stains include GelGreen, SYBR Green, and SmartGlow; ethidium bromide is not compatible with the blue LED. 115V; 230V version is E1200-PSP-E.

myGel InstaView Package: E1200 and E2301 touch screen power supply, 230V input

Extra casting set for 10.5x10cm and 10.5x6cm gels. Includes stand, trays, E1101-COMB1 double-sided combs

Extra double-sided combs, 22/12 teeth, for E1200-CS1 Casting Set, pk of 2

myGel InstaView™ Gel Tank with Blue LED Illuminator Accessories

myGel InstaView™ Gel Tank with Blue LED Illuminator

E1200 by Accuris Instruments is the myGel InstaView™ gel electrophoresis tank with an integrated 465 nm blue LED illuminator for real-time, UV-free visualization of GelGreen, SYBR Safe, and SmartGlow-stained DNA gels in the tank. Accommodates large (10.5 × 10 cm) or small (10.5 × 6 cm) tray formats and includes trays, combs, casting stand, imaging enclosure, and an orange filter lid for direct smartphone documentation.

myGel InstaView™ Gel Tank with Blue LED Illuminator, 230V input

Product Literature

Casting set, for 5 x 6cm gels, includes four trays and two combs (18*/10 teeth)

Reversible combs, 18*/10 teeth, for E1101-CS2 casting set, pk 2 (multi-channel compatible)

myGel Mini Electrophoresis System Starter Kit

E1101-SK by Accuris is the myGel Mini Electrophoresis System Starter Kit — the complete E1101 gel tank with power supply, a 100 g mini digital balance, and 100 g of LE agarose in one package. The system runs at 35V, 50V, or 100V, holds 230 mL of buffer, and supports gels up to 10.5 × 6 cm or two 5 × 6 cm gels simultaneously. Available in 115V (North America) and 230V (E1101-SK-E) configurations.

myGel Mini Electrophoresis System Starter Kit (Includes E1101, A1701 and W4000-100)

myGel Mini Electrophoresis System Starter Kit (Includes E1101-E, A1701 and W4000-100)

Datasheet

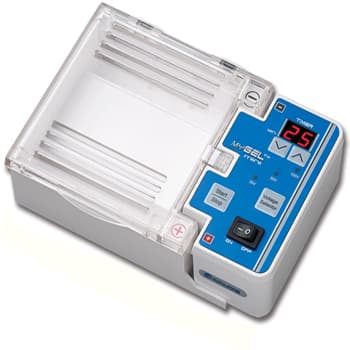

myGel™ Electrophoresis System

E1101 by Accuris Instruments is the myGel™ Mini electrophoresis system — a complete gel tank, integrated power supply, and two casting sets for 10.5 × 6 cm and 5 × 6 cm gel formats. Selectable voltage output (35/50/100 V), 0–99 min timer, multichannel-compatible combs, and a 0.45 kg / 7.5 × 5.1 in footprint make it suited for personal labs and teaching applications. Contact MBP at customerservice@mbpinc.net for pricing and availability.
