Analytical Balance

<h2>What Are Analytical Balances?</h2>
&nbsp;
An analytical balance is a high-precision weighing instrument that measures mass to a resolution of 0.1 mg (0.0001 g), one tenth of a milligram. The weighing mechanism uses electromagnetic force restoration (EMFR): the weighing pan is suspended by an electromagnet that applies just enough force to maintain the pan in a fixed reference position; the current required to restore this position is proportional to the mass placed on the pan, providing extremely high accuracy and repeatability across the full capacity range. A glass or polycarbonate draft shield enclosing the weighing pan prevents air currents from displacing the pan and introducing measurement errors; at 0.1 mg sensitivity, an air movement of less than 0.1 m/s can produce a reading error of 0.1 mg or more. Analytical balances cover capacities from 80 g (semi-micro models, with 0.01 mg readability in some configurations) to 520 g maximum, which accommodates weighing into standard laboratory glassware, plastic weighing boats, and small containers. They are used in quantitative chemistry (stoichiometric reagent weighing for accurate molarity calculations), pharmaceutical development (API and excipient weighing), environmental analysis (gravimetric filter weighing), food science, and materials research. An analytical balance is required whenever mass accuracy at the 0.0001 g (0.1 mg) level is needed; if the protocol reports mass to three or four decimal places or requires a minimum weighing quantity specification, an analytical balance is the correct instrument.
&nbsp;
<h2>What you will find:</h2>
&nbsp;
<ul>
<li>Analytical balances for high-precision weighing in research, analytical, and quality control laboratories.</li>
<li>Balance series with internal or external calibration options for maintaining measurement accuracy.</li>
<li>Touchscreen analytical balances with advanced weighing functions and intuitive operation.</li>
<li><a href="https://mbpinc.net/equipments/microscopes-balances-and-analytical-equipment/laboratory-balances/analytical-balance/accessories">Analytical Balance Accessories</a>, including precision vacuum gauges for monitoring vacuum levels and supporting laboratory vacuum applications.</li>
</ul>
&nbsp;
<h2>How to Choose an Analytical Balance</h2>
&nbsp;
Readability and accuracy
Readability (resolution, smallest displayable increment) for standard analytical balances is 0.1 mg. Semi-micro balances with 0.01 mg readability are specified for trace weighing, where mass differences of 0.01 mg must be detected, used in pharmaceutical microformulation, impurity weighing, and environmental particulate filter gravimetry. Accuracy (how closely the displayed value matches the true mass) is related to but distinct from readability: a well-maintained, calibrated analytical balance should show repeatability (standard deviation of 10 repeat weighings) of 0.05 mg to 0.1 mg at mid-range loads.
Internal vs. external calibration
Analytical balances with internal calibration contain a motorized calibration weight that deploys automatically when triggered by a temperature change (typically 1.5 to 2 degrees C change), a scheduled time interval, or an operator command. The balance calibrates itself and documents the event without requiring the operator to handle external weights; the preferred configuration for regulated environments and high-throughput labs. Externally calibrated balances require the operator to place a certified external weight on the pan and initiate calibration manually, appropriate for lower-frequency calibration schedules and labs where calibration is an explicitly documented QC step.
Draft shield design
Motorized sliding glass doors that open automatically when a sample is placed near the sensor and close after removal reduce the time the draft shield is open, minimize drafts around the pan during the stability period, and improve operator ergonomics. Manual sliding or hinged doors require the operator to open and close the shield for each weighing, adequate for moderate use but slower in high-throughput environments. Confirm that the door opening dimensions (width and height of the access openings) are sufficient for the weighing vessels used in your workflow.
Capacity and sample vessel compatibility
Choose capacity based on the maximum combined mass of the sample plus any tare container placed on the pan. For analytical chemistry, weighing reagents in 50 mL beakers or weighing boats, 200 g capacity covers most scenarios. For pharmaceutical weighing of larger API or excipient batches, a 520 g capacity with 0.1 mg readability is specified. Never exceed the stated maximum capacity of an analytical balance; even brief overloading can permanently damage the electromagnetic force restoration mechanism.
GLP and GMP compliance features
Analytical balances for regulated pharmaceutical and food testing environments require GLP/GMP compliance features: automatic time and date stamping of each weighing record; user login and operator ID in the printout; balance identification code; calibration status and last calibration date; minimum sample weight display (calculated from balance performance and the USP minimum weight requirement); and connectivity for data export to a LIMS or validated computer system. Confirm that the software and interface meet the regulatory requirements of the intended use.
&nbsp;
<h2>Specifications Context</h2>
&nbsp;
The minimum weighing quantity (MWQ) for an analytical balance is the minimum sample mass that can be weighed with an acceptable relative uncertainty, typically defined as 1000 times the standard deviation of repeatability, per USP 41 chapter 41 and OIML R 111 guidance. For a balance with 0.05 mg standard deviation, the minimum weighing quantity is 50 mg. Samples below this mass have a relative weighing error that exceeds the acceptable limit (commonly 0.1% relative uncertainty). Confirm the balance's MWQ specification for your smallest sample masses, and document this parameter in the balance qualification records for GLP and GMP environments.
&nbsp;
To discuss product availability or get selection guidance,&nbsp;<a href="https://mbpinc.net/contact-us">contact the MBP team</a>.

Product Literature

User Manual

Analytical Balances

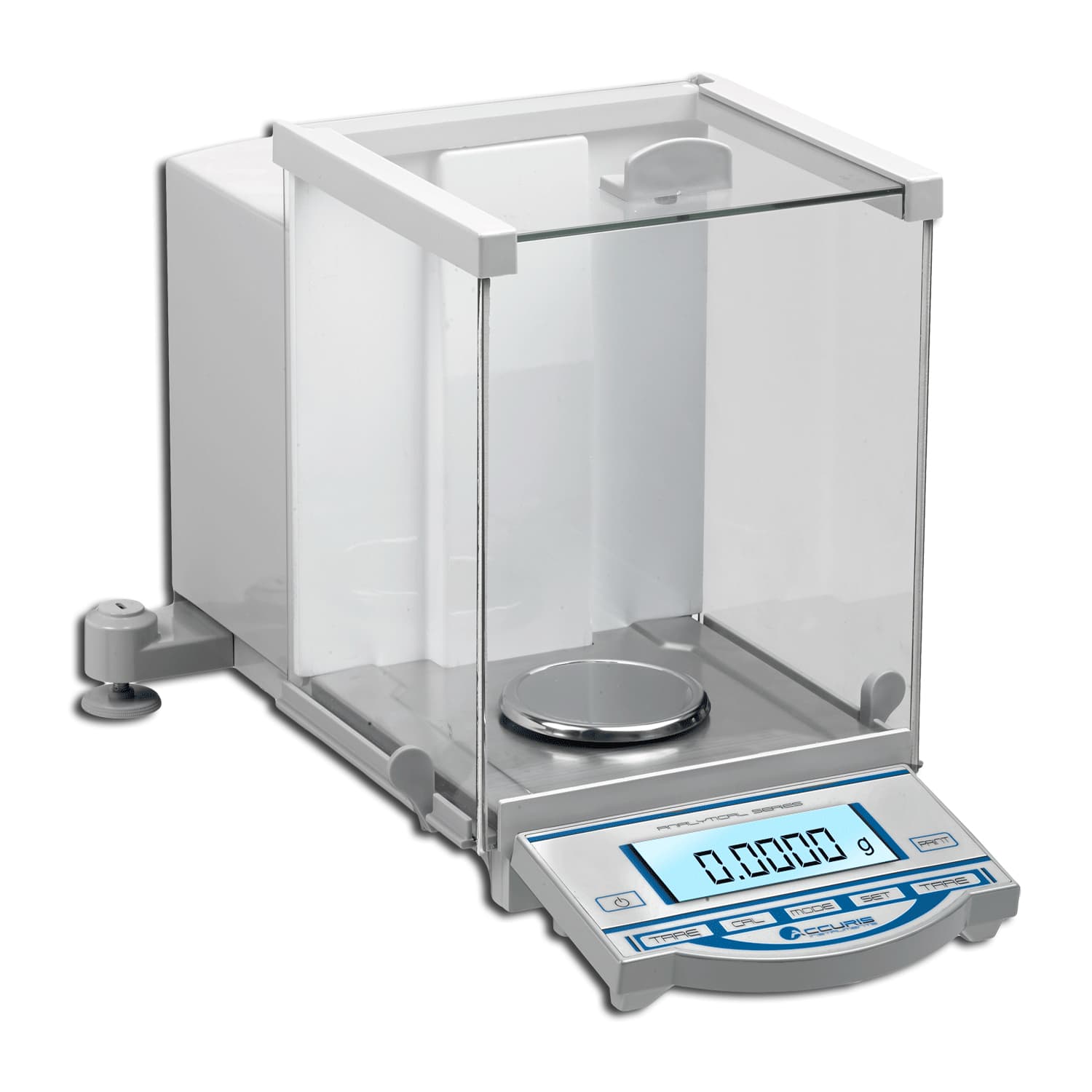

Accuris™ Analytical Balance Series

The W3100-120 by Accuris is an electromagnetic sensor analytical balance with 120 g capacity and 0.0001 g (0.1 mg) readability, ±0.2 mg linearity, and RS232 data output for direct LIMS or printer connectivity. A glass draft shield with three sliding doors, backlit LCD display, and four weighing units (g, oz, lb, ct) make it suited to pharmaceutical formulation, gravimetric research, and academic chemistry applications requiring external calibration.

Manufacture

Accuris™ Analytical Balance, 120 grams, readability 0.0001grams, 115V

Accuris™ Analytical Balance, 120 grams, readability 0.0001grams, 230V

Accuris™ Analytical Balance, 120 grams, readability 0.0001grams, with internal calibration, 115V

Accuris™ Analytical Balance , 120 grams, readability 0.0001grams, with internal calibration, 230V

Accuris™ Analytical Balance, 210 grams, readability 0.0001grams, 115V

Accuris™ Analytical Balance, 210 grams, readability 0.0001grams, 230V

Accuris™ Analytical Balance, 210 grams, readability 0.0001grams, with internal calibration, 115V

Accuris™ Analytical Balance, 210 grams, readability 0.0001grams, with internal calibration, 230V

Analytical Balance Accessories

<h2>What Are Analytical Balance Accessories?</h2>
&nbsp;
Analytical balance accessories are components, tools, and consumables that support accurate measurement, maintain instrument calibration, reduce environmental interference, and enable regulatory-compliant documentation. They fall into several categories: calibration weights (certified reference masses used for external calibration and periodic performance verification); environmental control accessories (anti-vibration tables, isolation pads, and leveling wedges that stabilize the balance against floor and building vibrations); electrostatic control (ionizers that neutralize static charge that causes powders, small particles, and light samples to be attracted or repelled from the pan); and operational consumables (weighing papers, weighing boats, and disposable dishes that protect the pan from contamination while providing a hygienic surface for sample placement). Analytical balance accessories are partially instrument-specific (draft shield panels, printer interface cables, density determination kits) and partially universal (calibration weight sets, ionizers, anti-vibration mats). The two accessories most commonly needed immediately after purchasing an analytical balance are a certified calibration weight set for external verification and an anti-vibration table or isolation mat; without these, balance accuracy cannot be independently verified, and readings may drift due to floor vibration.
&nbsp;
<h2>What you will find:</h2>
&nbsp;
<ul>
<li data-section-id="10nhecv" data-start="314" data-end="393">Precision vacuum gauges for accurate monitoring of laboratory vacuum systems.</li>
<li data-section-id="1cb1bnt" data-start="394" data-end="476">Piezo rough vacuum gauges with isolated sensors for reliable vacuum measurement.</li>
<li data-section-id="cvv92h" data-start="477" data-end="576">Vacuum gauges with real-time analytics for continuous vacuum monitoring and process optimization.</li>
<li data-section-id="1ufl7k2" data-start="577" data-end="682" data-is-last-node="">Vacuum measurement accessories suitable for laboratory, analytical, and vacuum processing applications.</li>
</ul>
&nbsp;
<h2>How to Choose Analytical Balance Accessories</h2>
&nbsp;
Calibration weight sets: OIML class and weight range
Calibration weights for analytical balances must be traceable to national measurement standards (NIST in the USA, PTB in Germany, NPL in the UK). OIML (Organisation Internationale de Metrologie Legale) weight classes define accuracy: E1 and E2 weights are the highest accuracy for calibrating reference balances and high-precision semi-micro instruments; F1 weights are the standard class for calibrating analytical balances (readability 0.1 mg to 1 mg); F2 weights are suitable for precision balances with 1 mg to 10 mg readability. ASTM classes (Class 1, 2, 3) are broadly equivalent to OIML E2, F1, F2, respectively. Specify a weight set covering the full capacity range of the balance (e.g., 1 mg to 200 g for a 200 g capacity analytical balance) for both single-point and multi-point calibration.
Anti-vibration tables and isolation mats
Anti-vibration tables use pneumatic, spring, or viscoelastic isolator pads between a heavy granite or steel top plate and a fixed base to attenuate floor vibrations from 2 Hz to 100 Hz. Granite surface plates (50 to 100 kg) provide both a level, vibration-absorbing surface and thermal mass. For labs where a full anti-vibration table is impractical, anti-vibration mats (viscoelastic foam or gel pads, 30 to 50 cm x 30 to 50 cm) placed under the balance provide meaningful isolation from bench vibrations at a lower cost. Confirm the isolator's frequency range covers the primary vibration frequencies in the lab environment (typically 4 to 20 Hz from building HVAC and 2 to 5 Hz from elevator/vehicle traffic).
Anti-static ionizers
Static charge on powder samples, weighing papers, and small vessels is a common cause of weighing errors in analytical balances; charged particles are attracted to or repelled from the pan and the draft shield walls, producing systematic and variable weighing errors. Anti-static ionizers (ion blower bars or hand-held ionizing guns) emit balanced positive and negative ions that neutralize static charge on the sample, pan, and vessel. Place the ionizer inside or adjacent to the draft shield; allow 10 to 30 seconds for ion equilibration before reading the balance. Particularly important for weighing pharmaceutical powders, polymer granules, and any sample prone to triboelectric charging.
Draft shield panels and accessories
Replacement draft shield panels (glass or polycarbonate) are needed when a panel is broken or scratched. Additional draft shield accessories include glass draft shield extension tubes for weighing tall vessels, balance pan brackets for density determination, and draught-proof covers for transport. Confirm that the panel format, dimensions, and sliding mechanism are specific to the balance model and generation.
Density determination kits
Density determination kits attach to the balance and allow measurement of the density of solids and liquids by Archimedes' principle, weighing the sample first in air, then suspended in a liquid of known density, and calculating density from the buoyancy difference. The kit typically includes a suspension assembly, a beaker holder, and a sinker weight for liquids. Density determination is used in material characterization, polymer QC, pharmaceutical tablet analysis, and gemological evaluation.
&nbsp;
<h2>Specifications Context</h2>
&nbsp;
Calibration weights should be stored in padded, labeled containers and handled only with tweezers or clean, lint-free gloves to prevent fingerprint oils and contamination from altering their mass. Even E2 and F1 weights require recertification at defined intervals (typically annually for GLP environments) by an accredited calibration laboratory to maintain traceability. When selecting calibration weights for a 0.1 mg analytical balance, confirm the weight set includes small denominations (1 mg, 2 mg, 5 mg, 10 mg) for low-mass calibration points, in addition to the full range. Weighing papers should be lint-free, chemical-resistant (compatible with the samples being weighed), and sized to fit within the pan area.&nbsp;
&nbsp;
To discuss product availability or get selection guidance,&nbsp;<a href="https://mbpinc.net/contact-us">contact the MBP team</a>.

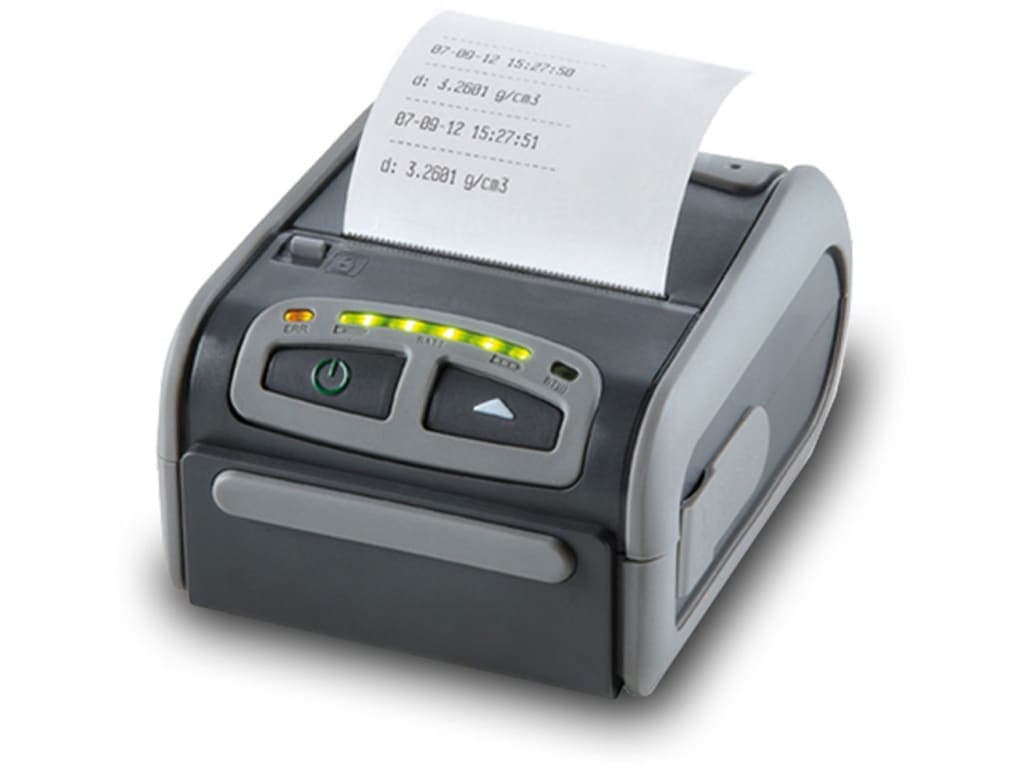

Serial Printer for Accuris Series Dx and Tx balances

W3130 by Accuris/Benchmark Scientific is an external printer accessory for compatible Accuris balances, enabling direct paper printout of weighing results for GLP/GMP documentation and audit trails.

Accuris™ Analytical Balance Dx Series Accessories

Series Dx Balance Specifications

Accuris™ Analytical Balance Dx Series

W3101A-120 by Accuris Instruments is a 120 g analytical balance with 0.0001 g (0.1 mg) readability, Electromagnetic Force Restoration (EFR) technology, and Quik-Cal™ internal automatic calibration for GLP-compliant lab workflows. The backlit dot matrix LCD, glass draft shield, and waterproof control panel are standard on the Dx Series.

Analytical Balance, series Dx, internal calibration, Graphical Display, 120gx0.0001g, 230V

Analytical Balance, series Dx, internal calibration, Graphical Display, 220gx0.0001g, 230V

Analytical Balance, series Dx, internal calibration, Graphical Display, 120gx0.0001g, 115V

Analytical Balance, series Dx, internal calibration, Graphical Display, 220gx0.0001g, 115V

Compact Anti Static Ionizer

W3120 by Benchmark Scientific (Accuris) is a compact anti-static ionizer (115/230V, approx. 15×15×15 cm) that emits balanced positive and negative ions to neutralize static charge on analytical balance samples and containers. An optional blower enables rapid static discharge or can be switched off for powder work.
