<h2>What are PCR Cleanup Kits?</h2>
&nbsp;
PCR cleanup kits remove residual PCR reaction components -- primers (&lt;100 bp), primer dimers, unincorporated dNTPs, DNA polymerase, buffer salts, and mineral oil - from PCR amplification products using silica-membrane spin columns and a bind-wash-elute protocol. The purified PCR amplicon (&gt;=100 bp) is recovered in 20-50 ul of water or elution buffer, free of inhibitors that would interfere with downstream steps, including Sanger sequencing, restriction enzyme digestion, ligation, NGS library preparation, and in vitro transcription. The procedure takes 5-10 minutes using a standard microcentrifuge with no organic solvents, precipitation, or centrifugation spins beyond the bind/wash/elute steps. Use a PCR cleanup kit immediately after PCR whenever the downstream application requires an inhibitor-free amplicon - primers and excess dNTPs left in the reaction will reduce sequencing quality, compete in ligation reactions, and inflate NGS background noise.
&nbsp;
<h2 dir="ltr">What you will find:</h2>
&nbsp;
<ul>
<li dir="ltr" aria-level="1">
Oligo Clean &amp; Concentrator: Precisely designed systems for the quick retrieval of single-stranded DNA, RNA, and oligonucleotides from enzymatic processes.
</li>
<li dir="ltr" aria-level="1">
OneStep&trade; PCR Inhibitor Removal: Tailored columns and 96-well formats engineered to eliminate polyphenols, humic acids, and lipids that hinder PCR kinetics.
</li>
<li dir="ltr" aria-level="1">
ssDNA/RNA Clean &amp; Concentrator&trade;: An adaptable method for purifying and concentrating small nucleic acid segments, ensuring isoform specificity.
</li>
<li dir="ltr" aria-level="1">
ZR-96 High-Throughput Systems: Scalable formats of 96-well plates designed for automated lab processes, guaranteeing reproducibility-validated outcomes across extensive sample groups.
</li>
</ul>
&nbsp;
<h2>How to Choose a PCR Cleanup Kit</h2>
&nbsp;
Binding Capacity
Standard PCR cleanup columns bind up to 5-25 ug of DNA, depending on the kit; 25 ug capacity (Thermo Fisher GeneJET) accommodates typical preparative PCR reactions. For high-yield PCR reactions producing &gt;25 ug of amplicon, split the reaction across two columns and pool the eluates, or use a higher-capacity kit format.
Fragment Size Range
Standard PCR cleanup kits retain fragments &gt;=100 bp and discard everything shorter. For amplicons between 70 and 100 bp (e.g., short RT-qPCR products or miRNA amplicons), use a kit with an extended lower size limit -- the Thermo Fisher GeneJET kit retains fragments from 25 bp to 20 kb, covering this range. For amplicons shorter than 25 bp, conventional silica-column cleanup will not work; use gel purification or size-selective bead cleanup (e.g., AMPure XP at adjusted bead ratios).
Minimum Elution Volume
If the downstream application requires a high DNA concentration (Sanger sequencing needs &gt;20 ng/ul input), select a kit that elutes in as little as 20-25 ul without significant yield loss.&nbsp;
pH Indicator
Kits include a pH indicator dye in the binding buffer that turns yellow when the pH is correct for DNA binding and remains orange/red if the pH is too high (causing DNA loss). This is useful when purifying PCR products amplified in high-pH buffers. Kits without pH indicators require careful attention to binding buffer volume ratios to ensure efficient DNA adsorption.
96-Well Throughput
For screening workflows producing multiple amplicons per sample, use 96-well PCR purification plates with vacuum manifolds for simultaneous processing of all 96 wells. 96-well formats are essential for high-throughput genotyping and sequencing library preparation pipelines.
&nbsp;
<h2>Specifications Context</h2>
&nbsp;
Key benchmarks for PCR cleanup kits: &gt;=70% DNA recovery for fragments 100 bp-10 kb, A260/A280 &gt;= 1.7 in eluate, complete removal of primers and dNTPs (confirmed by capillary electrophoresis with no peaks below 100 bp), and elution in &lt;=50 ul of water or TE. The Thermo Scientific GeneJET PCR Purification Kit specifies recovery rates up to 100% with a binding capacity of 25 ug per column in a 5-minute protocol. AAT Bioquest study comparing commercial PCR cleanup kit performance confirmed that silica-column kits consistently achieve primer and dimer removal equivalent to ethanol precipitation with significantly reduced protocol time. PCR cleanup is a mandatory step before NGS library preparation in nearly all sequencing-based workflows at institutions, including Howard Hughes Medical Institute, Vanderbilt University, and MD Anderson Cancer Center, where primer and dimer contamination in libraries produces low-complexity sequencing reads that reduce effective coverage.
&nbsp;
Purify your amplicons and remove reaction noise&mdash;<a href="https://mbpinc.net/contact-us">reach out to MBP Inc.</a> now to obtain a quote for your PCR cleanup process.

PCR Cleanup Kits

D4062-Data Sheet

D4062 - MSDS

D4062-Protocol

ZR-96 Oligo Clean & Concentrator

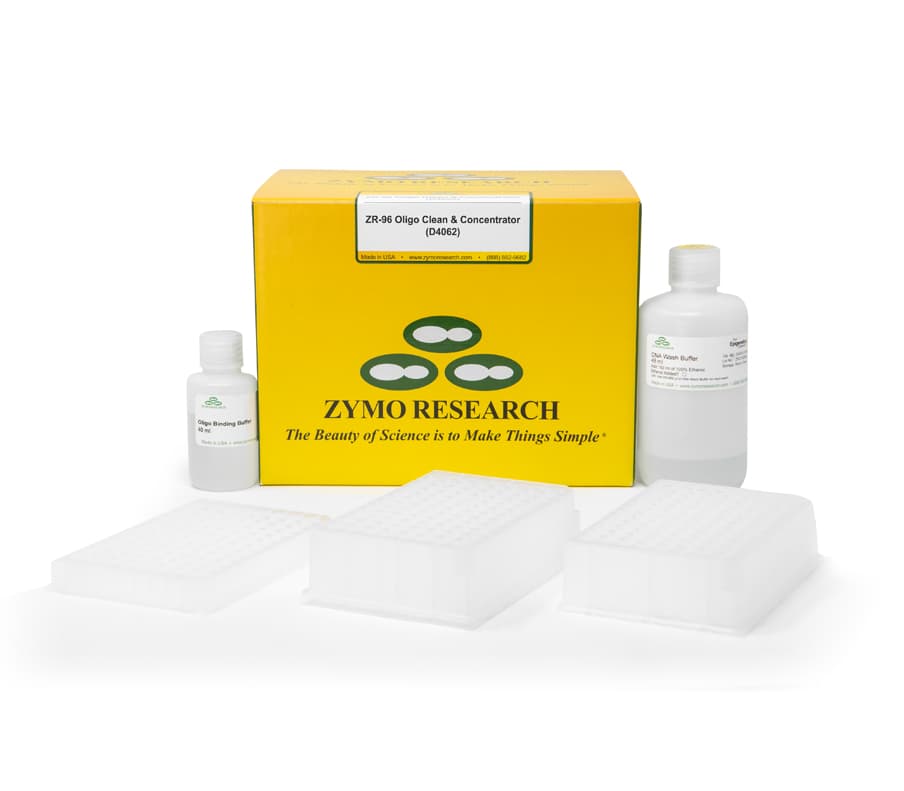

D4062 by Zymo Research is the ZR-96 Oligo Clean &amp; Concentrator, a 96-well spin-plate kit providing 2×96 preparations for high-throughput cleanup and concentration of DNA and RNA oligonucleotides ≥16 nt. Each well delivers &gt;90% recovery with elution in as little as 10 µl; compatible with fluorescent, biotin, DIG, and radioactively labeled oligos. All components stored at room temperature.
