Name: Tube Holder, Foam, for use with GVM Series Vortex Mixers, 48-Place, for 6mm Tubes (must use with Plate Adapter VM-AS-PLATE or Vortexing Rod VM-AS-ROD)
SKU: GVM-AS-ADAPT48
Price: 61.14 USD
Availability: InStock

Vortex Mixers Accessories

<h2>What are vortex mixer accessories?</h2>
&nbsp;
Vortex mixer accessories are the interchangeable cup heads, foam inserts, and platform adapters that convert a standard single-tube vortex mixer to batch-process multiple tubes or different vessel formats simultaneously. The standard single-tube cup head can be replaced with a multi-tube foam insert holding 6 to 24 microcentrifuge tubes, a tube strip or microplate adapter, or a platform-style attachment for larger vessel formats. These accessories are typically instrument-specific, using a proprietary attachment mechanism that varies between vortex mixer brands.&nbsp;
&nbsp;
<h2 dir="ltr">What you will find:</h2>
&nbsp;
<ul>
<li dir="ltr" role="presentation">Tube racks for 0.5 ml, 1.5/2.0 ml, 12 mm, 13 mm, and 15 ml tubes</li>
<li dir="ltr" role="presentation">High-capacity tube racks for holding up to 96 samples</li>
<li dir="ltr" role="presentation">Horizontal heads for mixing 2 &times; 50 ml tubes and 4 &times; 15 ml tubes</li>
<li dir="ltr" role="presentation">Foam tube holders for 6 mm, 10 mm, 12 mm, and 16 mm tubes</li>
</ul>
&nbsp;
<h2>How to choose vortex mixer accessories</h2>
&nbsp;
Select foam inserts by the tube format they accommodate
Foam inserts for vortex mixers are sized to hold specific tube formats by pressing the closed tube caps into the foam at defined positions: standard microcentrifuge inserts hold 1.5 mL and 2 mL tubes, larger foam blocks accommodate 15 mL and 50 mL conical tubes, and low-profile inserts hold 0.5 mL tubes or PCR strip tubes in defined arrays. Check that the insert format matches the tube types you use most and that the insert is rated for your vortex mixer's speed range.
Confirm accessory compatibility with your vortex mixer model
Vortex mixer accessories attach via model-specific connectors &mdash; threaded onto the drive spindle or clipped onto the instrument head &mdash; and are not universally compatible between brands or models. Always check that the specific accessory is listed as compatible with your vortex mixer model before ordering.
Use a microplate adapter for 96-well plate mixing
Microplate vortex adapters replace the standard cup head with a flat or recessed platform sized to hold a standard 96-well plate, allowing entire plates to be mixed in continuous mode for ELISA plate washing steps, microplate cell resuspension, and plate-format biochemical assays. The adapter should be rated for the speed at which it will be used to prevent plate sliding.
Check that foam insert speed ratings are compatible with your operating speed
Foam inserts are rated for a maximum operating speed, and using a foam insert at speeds above its rating risks tubes not being securely retained by the foam compression at high rpm. Confirm that the insert's rated speed covers your intended operating speed before batch-processing valuable samples.
Consider a universal platform adapter for flexible use
Some vortex mixer manufacturers offer a universal platform adapter that replaces the cup head with a flat non-slip platform, accepting a wide range of vessel formats using a non-slip mat for retention. While less format-specific than a dedicated foam insert, a universal platform provides flexibility for less common vessel formats.
&nbsp;
<h2>Specifications context</h2>
&nbsp;
Foam inserts work by compressing foam around tube caps to provide frictional retention during high-speed oscillation; foam material and cell size determine tube sizes accommodated and maximum safe speed. As of 2026, inserts accommodating PCR strip tubes alongside microcentrifuge tubes in a single insert have become available, reducing the number of separate formats needed.
<a href="https://mbpinc.net/contact-us">Contact the MBP team</a> today to request a quote and find the right accessories for your vortex mixer.

Vortex Mixer Accessories

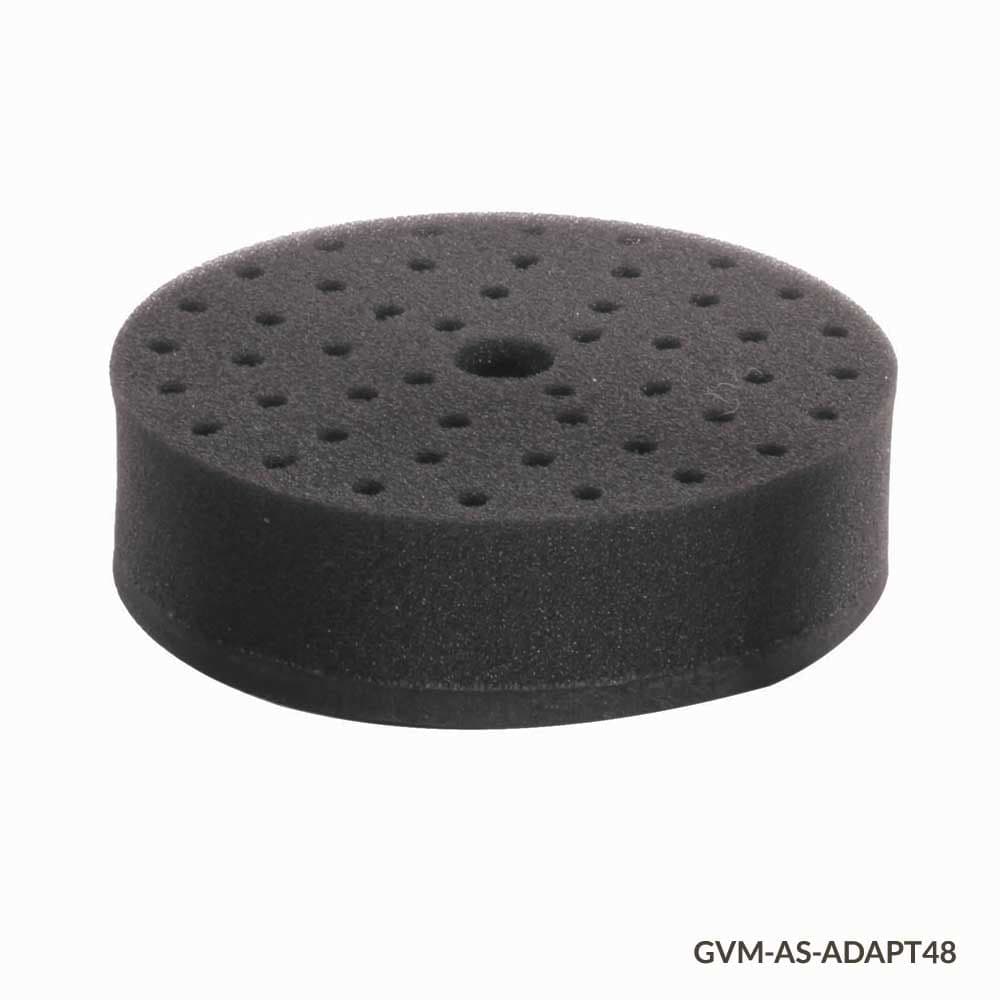

Tube Holder, Foam, for use with GVM Series Vortex Mixers, 48-Place, for 6mm Tubes (must use with Plate Adapter VM-AS-PLATE or Vortexing Rod VM-AS-ROD)

GVM-AS-ADAPT48 by Globe Scientific is a foam tube holder for 48 x 6mm tubes, designed for use with GVM Series variable-speed vortex mixers. It must be used in combination with the VM-AS-PLATE plate adapter or the GVM-AS-ROD vortexing rod, neither of which is included.
