Urinalysis Slide

<h2 data-section-id="1wbl0e7" data-start="0" data-end="30">What Are Urinalysis Slides?</h2>
&nbsp;
Urinalysis slides are precision counting chamber slides designed for standardized microscopic examination of urine sediment. Unlike conventional wet mounts prepared under a standard coverslip, which produce variable and non-reproducible sample depths, urinalysis slides deliver a fixed, calibrated volume for consistent sediment counting and reporting.
Globe Scientific Quick-Read urinalysis slides contain integrated counting chambers, each holding a fixed volume of 6.3 &micro;L, with 10 chambers per slide. These chambers are available in two main formats: Precision Cell (with counting circles) and Precision Grid (with a structured grid). The standardized design ensures reproducibility for clinical reporting, quality control trending, and proficiency testing workflows. These slides are recommended whenever urine sediment counts must be consistent and comparable across users or laboratories.
&nbsp;
<h2 dir="ltr">What you will find:</h2>
&nbsp;
<ul>
<li dir="ltr" aria-level="1">
Grid Complete Systems (I, II, and III) for fully standardized sediment analysis.
</li>
<li dir="ltr" aria-level="1">
Quick-Read&trade; precision cells and grids for rapid, accurate quantification.
</li>
<li dir="ltr" aria-level="1">
Complete urinalysis systems designed for high-throughput clinical screening.
</li>
<li dir="ltr" aria-level="1">
Specialized urinalysis pipettes available in bulk bags or cases.
</li>
<li dir="ltr" aria-level="1">
Urine collection cups with integrated transfer devices and temperature strips.
</li>
<li dir="ltr" aria-level="1">
Plastic vacuum tubes and transfer straws for secure specimen handling.
</li>
</ul>
&nbsp;
<h2 data-section-id="q0vbca" data-start="929" data-end="963">How to Choose Urinalysis Slides</h2>
&nbsp;
Counting Format: Circles vs Grid
Precision Cell slides use printed counting circles that are primarily used for reporting formed elements such as cells and casts per high-power field (HPF), where the circle defines a consistent observation area. Precision Grid slides use a grid layout, which is more suitable for enumerating bacteria, crystals, and other particulate elements where structured counting improves accuracy. Both formats maintain the same chamber volume of 6.3 &micro;L and the same 10-chamber configuration.
System Selection: Individual Components vs Complete Kits
Urinalysis products are available either as individual components or as complete systems. Complete kits include the slide, a calibrated transfer pipette, and a urine collection cup, providing a fully standardized workflow for clinical laboratories. Alternatively, laboratories can purchase slides and pipettes separately in bulk quantities to integrate into existing collection and handling systems.
Throughput and Workflow Efficiency
Each urinalysis slide contains 10 independent chambers, allowing up to 10 separate patient samples to be processed per slide. This configuration is designed for high-throughput clinical screening environments. In lower-volume settings, chambers may be used sequentially, provided proper sealing and handling protocols are followed between uses.
&nbsp;
<h2 data-section-id="1jl751w" data-start="2957" data-end="2982">Specifications Context</h2>
&nbsp;
Globe Scientific Quick-Read urinalysis slides (for example, catalog #3805) are optically clear chamber slides with an integrated coverslip system that eliminates the need for manual coverslip placement. Each chamber contains a fixed and reproducible 6.3 &micro;L volume of urine sediment, significantly reducing variability associated with traditional wet mount techniques, where inconsistent drop size and chamber depth can alter the number of visible formed elements.
Stop settling for "close enough" in your diagnostics. <a href="https://mbpinc.net/contact-us" style="color: #236fa1; text-decoration: underline;">Ask the MBP Team</a> for a quote right now because when it comes to precision, we don't just count, we make every cell count.

Flyer

3800-Group-Precision Grid Instructions

3800-Group-Precision Cell Instructions

Quick-Read Urinalysis Slides

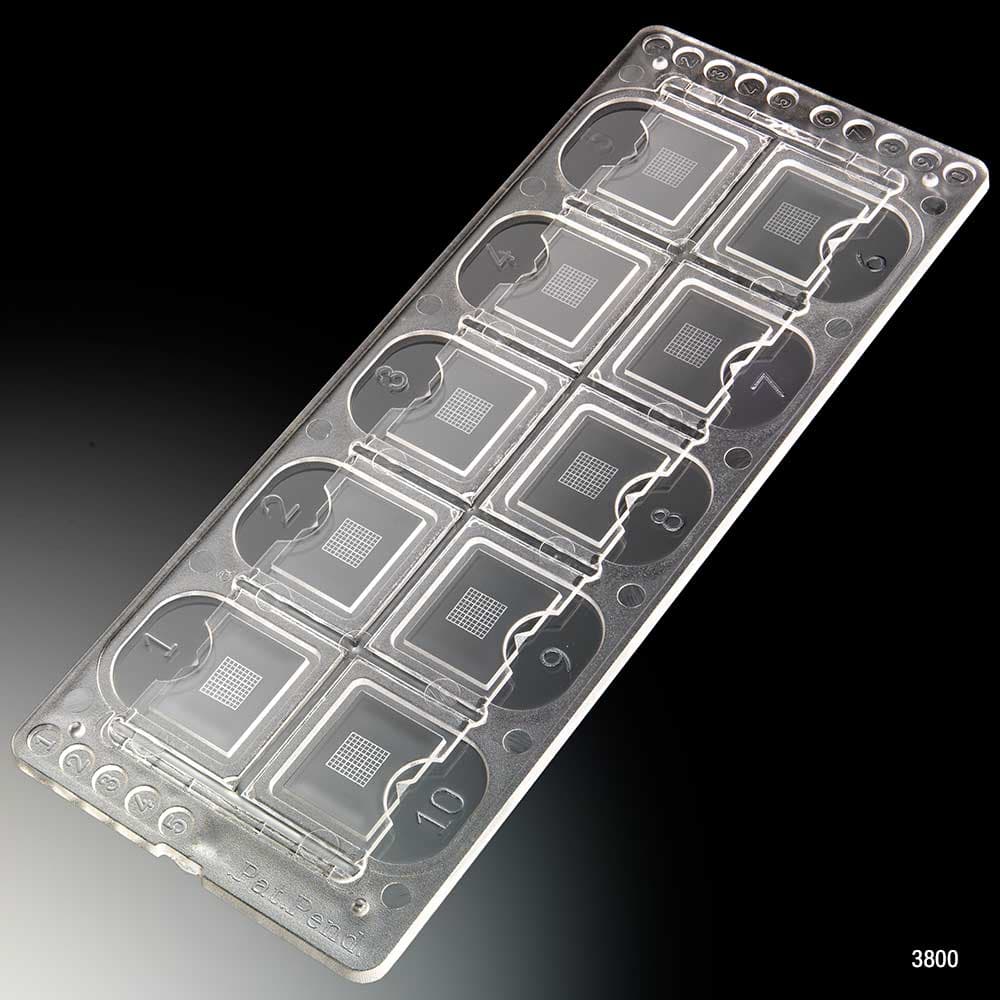

3800 by Globe Scientific is the Quick-Read™ Precision Grid urinalysis slide — an optically clear acrylic slide with 10 chambers, each holding 6.3µL and containing 81 pre-measured squares for standardized urinary sediment counting. Integrated coverslip design; overflow wells prevent cross-contamination between chambers. 100 slides per box (1000 tests).
