Name: NexiusZoom Series Stereo Microscopes
SKU: ENZ-1703-GRoup
Availability: InStock

Stereo Microscopes

<h2>What Are Stereo Microscopes?</h2>
<p>&nbsp;</p>
<p>A stereo microscope uses two separate optical paths (each slightly offset from the other) to present a slightly different angle of the specimen to each eye, producing true stereoscopic (three-dimensional) depth perception in the image. Unlike compound microscopes, which use transmitted light through thin, translucent, slide-mounted specimens at high magnification, stereo microscopes use incident (reflected) illumination to observe solid, opaque, or thick specimens from above at lower magnifications. This design provides two key practical advantages: a long working distance (typically 80 to 115 mm at 1x objective) that allows tools, needles, forceps, or soldering irons to be operated under the lens during observation; and a wide field of view that allows large specimens (whole insects, embryos, plant organs, PCBs, rocks) to be seen in context. Stereo microscopes are used in biology (dissection, organism manipulation, embryo handling, zebrafish imaging), materials science and electronics (PCB inspection, solder joint analysis, microelectronics assembly), geology and paleontology (fossil and mineral examination), medical device assembly, and quality control inspection. Use a stereo microscope when you need to observe or manipulate a solid, opaque, or thick specimen in three dimensions with tools beneath the lens; it is the correct instrument for dissection, inspection, and manipulation, not a compound microscope.</p>
<p>&nbsp;</p>
<div class="qMYqUG_convSearchResultHighlightRoot">
<div class="" data-turn-id-container="request-WEB:4d1ef36c-76ad-4e62-9587-89c39c511ceb-35" data-is-intersecting="true">
<section class="text-token-text-primary w-full focus:outline-none has-data-writing-block:pointer-events-none [&amp;:has([data-writing-block])&gt;*]:pointer-events-auto R6Vx5W_threadScrollVars scroll-mb-[calc(var(--scroll-root-safe-area-inset-bottom,0px)+var(--thread-response-height))] scroll-mt-[calc(var(--header-height)+min(200px,max(70px,20svh)))]" dir="auto" data-turn-id="request-WEB:4d1ef36c-76ad-4e62-9587-89c39c511ceb-35" data-turn-id-container="request-WEB:4d1ef36c-76ad-4e62-9587-89c39c511ceb-35" data-testid="conversation-turn-72" data-turn="assistant">
<div class="text-base my-auto mx-auto pb-10 [--thread-content-margin:var(--thread-content-margin-xs,calc(var(--spacing)*4))] @w-sm/main:[--thread-content-margin:var(--thread-content-margin-sm,calc(var(--spacing)*6))] @w-lg/main:[--thread-content-margin:var(--thread-content-margin-lg,calc(var(--spacing)*16))] px-(--thread-content-margin)">
<div class="[--thread-content-max-width:40rem] @w-lg/main:[--thread-content-max-width:48rem] mx-auto max-w-(--thread-content-max-width) flex-1 group/turn-messages focus-visible:outline-hidden relative flex w-full min-w-0 flex-col agent-turn" data-conversation-screenshot-content="">
<div class="flex max-w-full flex-col gap-4 grow">
<div class="min-h-8 text-message relative flex w-full flex-col items-end gap-2 text-start break-words whitespace-normal outline-none keyboard-focused:focus-ring [.text-message+&amp;]:mt-1" dir="auto" tabindex="0" data-message-author-role="assistant" data-message-id="d71b01e8-be84-4f9d-be51-db6175a5d9c5" data-message-model-slug="gpt-5-5" data-turn-start-message="true">
<div class="flex w-full flex-col gap-1 empty:hidden">
<div class="markdown prose dark:prose-invert wrap-break-word w-full light markdown-new-styling">
<h2 class="PDq2pG_selectionAnchorContainer" data-section-id="bxblbi" data-start="0" data-end="23">What You Will Find:</h2>
<p>&nbsp;</p>
<ul>
<li>StereoBlue&trade; Stereo Microscopes for routine inspection, sample handling, and educational applications.</li>
<li>NexiusZoom&trade; Stereo Microscopes with continuous zoom magnification for detailed specimen examination.</li>
<li>Three-Dimensional Viewing for accurate observation of surface structures and fine details.</li>
<li>Integrated Illumination Options for clear, high-contrast imaging across a variety of samples.</li>
<li>Ergonomic Designs suited for dissection, quality control, assembly, and laboratory workflows.</li>
</ul>
</div>
</div>
</div>
</div>
</div>
</div>
</section>
</div>
</div>
<div class="pointer-events-none -mt-px h-px translate-y-[calc(var(--scroll-root-safe-area-inset-bottom)-14*var(--spacing))]" aria-hidden="true">&nbsp;</div>
<h2>How to Choose a Stereo Microscope</h2>
<p>&nbsp;</p>
<p><strong>Zoom ratio and magnification range</strong></p>
<p>Zoom ratio (the ratio of maximum to minimum magnification in the continuous zoom range) determines how much flexibility the instrument provides without changing objectives. A 10:1 zoom ratio from 7x to 70x (with 1x objective and 10x eyepieces) covers most biology, entomology, and inspection applications. Extended-range research models reach 16.4:1 (Olympus SZX16, 7x to 115x with 1x objective, up to 230x with 2x objective) for applications requiring both macro overview and high-magnification fine detail in a single instrument. Confirm that the magnification range covers both the lowest magnification needed for overview and the highest needed for fine structural detail.</p>
<p><strong>Working distance</strong></p>
<p>Working distance (the distance from the front of the objective to the specimen in focus) determines how much space is available to work under the lens. Standard benchtop stereo microscopes provide 80 to 115 mm working distance at minimum magnification with a 1x objective, adequate for most biological dissection. For surgical or microsurgical applications requiring larger instrument clearance, extended working distance objectives provide 150 to 200 mm or more. For electronics rework requiring access to PCB connectors and leads, confirm that the chosen configuration provides at least 90 to 100 mm.</p>
<p><strong>Optical system: Greenough vs. Common Main Objective (CMO)</strong></p>
<p>The Greenough design uses two independently angled optical systems converging on the specimen; it is the most widely used design in educational and routine research stereo microscopes due to its lower cost. The Common Main Objective (CMO) design uses a single large shared objective lens for both optical paths, producing a more nearly coaxial viewing geometry, improved apochromatic correction, better flatness of field, and easier fluorescence imaging; the design is used in all research-grade stereo microscopes from Zeiss, Leica, Olympus, and Nikon.</p>
<p><strong>Illumination</strong></p>
<p>Reflected LED ring-light illumination is standard for most biological and industrial stereo microscope applications; it provides even, shadow-minimizing illumination of specimen surfaces. Fiber optic illuminators (gooseneck or ring light) allow more directional, oblique, or dark-field illumination for surface relief and crack detection. Transmitted LED illumination (through a clear-glass or frosted-glass stage plate) is used for thin or semi-transparent specimens and organism whole-mounts. Fluorescence illumination (epi-fluorescence via a dedicated fluorescence port) is available on CMO research stereo microscopes for imaging fluorescent labels, GFP whole-mounts, and labeled organisms.</p>
<p><strong>Head configuration</strong></p>
<p>Binocular heads are standard for general observation. Trinocular heads add a vertical camera port for digital imaging and documentation without disrupting the eyepiece view. Confirm that the trinocular port is sized for C-mount cameras (the universal standard) and that the beam splitter does not significantly dim the eyepiece image during camera use.</p>
<p>&nbsp;</p>
<h2>Specifications Context</h2>
<p>&nbsp;</p>
<p>Numerical aperture (NA) in stereo microscopes ranges from 0.10 to 0.30 on standard models, rising to 0.30 NA on high-resolution CMO research systems. Higher NA provides greater resolving power at maximum magnification and brighter fluorescence images. Apochromatic objectives correct chromatic aberration across the entire zoom range, producing color-faithful images without the color fringing visible in achromatic optics, which is important for documentation-quality imaging and fluorescence. Camera adapters for stereo microscopes are generally non-standard (0.5x, 1x, or 1.5x relay lens between the trinocular port and the C-mount camera), and the zoom position affects the camera's field of view; confirm the effective field of view at each zoom setting with the camera sensor size before ordering.&nbsp;</p>
<p dir="ltr">&nbsp;</p>
<p>To discuss product availability or get selection guidance,&nbsp;<strong><a href="https://mbpinc.net/contact-us">contact the MBP team</a></strong>.</p>

ENZ-1703-GRoup-Microscopes Catalog

ENZ-1703-GRoup-Choosing a Microscope Made Easy

ENZ-1703-GRoup-TDS-ENZ-1703-S

ENZ-1703-GRoup-TDS-ENZ-1703-P

ENZ-1703-GRoup-TDS-ENZ-1703-PG

NexiusZoom EVO 0.65-5.5 (WF 10x/23mm)

NexiusZoom - The new standard in stereo microscopy

NexiusZoom Series Stereo Microscopes

<p>The NexiusZoom Series stereo microscopes by Globe Scientific provide 6.5×–55× magnification (0.65×–5.5× zoom, ratio 1:8.4), HWF 10×/23 mm eyepieces, and 110 mm working distance in six configurations: ENZ-1703-S (rack and pinion stand), ENZ-1703-S-DC18 (rack and pinion + 18 MP camera), ENZ-1703-P (pillar stand), ENZ-1703-P-DC18 (pillar + 18 MP camera), ENZ-1703-PG (pillar + dual gooseneck LED), and ENZ-1703-PG-DC18 (pillar + gooseneck + 18 MP camera).</p>

Manufacture

Trinocular stereo zoom microscope NexiusZoom EVO, 0.65x to 5.5x zoom objective, magnification from 6.5x to 55x with rack and pinion stand.  Incident and transmitted 3 W LED illuminations

Trinocular stereo zoom microscope NexiusZoom EVO, 0.65x to 5.5x zoom objective, magnification from 6.5x to 55x with rack and pinion stand.  Incident and transmitted 3 W LED illuminations, with CMEX-18 Pro, 18.0MP digital USB-3 camera with 1/2.3 inch CMOS sensor

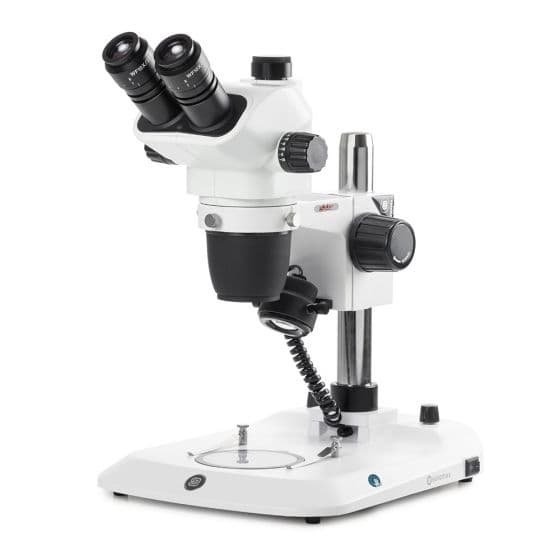

Trinocular stereo zoom microscope NexiusZoom EVO, 0.65x to 5.5x zoom objective, magnification from 6.5x to 55x with pillar. Incident and transmitted 3W LED illuminations

Trinocular stereo zoom microscope NexiusZoom EVO, 0.65x to 5.5x zoom objective, magnification from 6.5x to 55x with pillar. Incident and transmitted 3W LED illuminations, with CMEX-18 Pro, 18.0MP digital USB-3 camera with 1/2.3 inch CMOS sensor

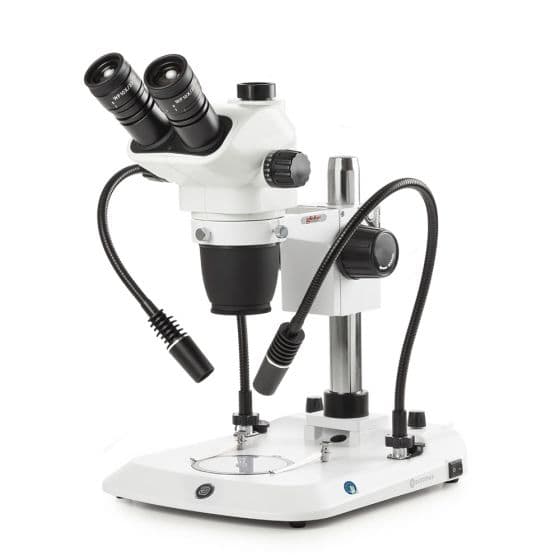

Trinocular stereo zoom microscope NexiusZoom EVO, 0.65x to 5.5x zoom objective, magnification from 6.5x to 55x with pillar. Two incident LED illuminations with Gooseneck and one transmitted 3W LED illumination

Trinocular stereo zoom microscope NexiusZoom EVO, 0.65x to 5.5x zoom objective, magnification from 6.5x to 55x with pillar. Two incident LED illuminations with Gooseneck and one transmitted 3W LED illumination, with CMEX-18 Pro, 18.0MP digital USB-3 camera with 1/2.3 inch CMOS sensor
