Name: Horizontal Digital Tube Rotator with Adjustable Speed
SKU: GTR-HD
Availability: InStock

Rollers & Rotators

<h2>What are tube rollers and rotators?</h2>
&nbsp;
Tube rollers and rotators are low-speed mixing instruments that provide gentle, continuous agitation of tubes and bottles through rolling or inversion motion rather than high-speed shaking. A tube roller operates by rotating horizontal rollers that the tubes or bottles rest on, causing them to roll along their long axis in place, creating slow, even mixing of the tube contents without introducing air bubbles. A rotator (end-over-end mixer) clamps tubes in a wheel or drum that rotates at 5&ndash;30 rpm, inverting the tubes repeatedly through a full circle for thorough but gentle mixing.
&nbsp;
<h2 dir="ltr">What you will find:</h2>
&nbsp;
<a href="https://mbpinc.net/equipments/agitation-equipment/rollers-and-rotators">Rollers &amp; Rotators</a>:
<ul data-path-to-node="2">
<li>
Mini &amp; Digital Rotators: Compact benchtop rotating mixers and programmable units designed for smooth, continuous sample inversion.
</li>
<li>
Multi-Roller Tube Rollers: High-capacity 5-roller, 6-roller, and 10-roller systems engineered for uniform rolling of culture bottles and blood tubes.
</li>
<li>
Temperature-Controlled Rotators: Special incubated models that combine steady sample rotation with precise temperature management.
</li>
<li>
Platform Rockers: Basic single-platform shaking and rocking systems optimized for blot washes and gel staining procedures.
</li>
</ul>
&nbsp;
<a href="https://mbpinc.net/equipments/agitation-equipment/rollers-and-rotators/roller-and-rotator-accessories">Roller &amp; Rotator Accessories:</a>
<ul>
<li data-path-to-node="4,0,0">Interchangeable Tube Holders: Snap-on racks and clips designed specifically to accommodate 1.5ml, 2.0ml, 15ml, and 50ml laboratory tubes.</li>
</ul>
&nbsp;
<h2>How to choose rollers and rotators</h2>
&nbsp;
Choose a tube roller for blood collection and clinical tube mixing
Tube rollers are the standard instrument for homogenizing anticoagulated blood collection tubes before clinical testing, operating at 5&ndash;20 rpm to ensure even mixing of blood and anticoagulant without hemolysis from excessive speed. The roller format also suits other tubes and bottles that are too long for end-over-end rotation to work effectively in the space available.
Choose a rotator for antibody-bead incubations and immunoprecipitation
End-over-end rotators invert tubes through a full 360&deg; cycle, ensuring that beads settled at the tube bottom are continuously resuspended and that the bead surface is uniformly exposed to the solution throughout the incubation. This complete inversion is essential for immunoprecipitation, pull-down assays, and antibody-coupling incubations where beads must stay in suspension for efficient binding.
Consider the tube capacity and format each instrument accommodates
Tube rollers hold a fixed number of tubes of defined diameter on the roller surface; rotator wheels typically accommodate a defined set of tube positions for specific tube formats. Confirm that the instrument handles the tube diameter, length, and quantity you work with most commonly, and that accessories are available to accommodate additional formats.
Evaluate speed range against your mixing requirement
Blood sample homogenization requires gentle speed of 5&ndash;12 rpm to avoid hemolysis, while antibody-bead incubations can use faster rotation of 10&ndash;30 rpm for more active suspension maintenance. A variable-speed rotator provides flexibility across applications; a fixed-speed roller set at the correct blood mixing speed is adequate for dedicated blood handling.
Confirm whether incubator-compatible models are needed for your workflow
Rotator and roller incubations often require 37&deg;C for antibody binding or hybridization reactions. Models designed for incubator interior use have compact profiles and materials that tolerate incubator humidity and temperature, while standard bench models are not always rated for this environment.
&nbsp;
<h2>Specifications context</h2>
&nbsp;
Tube rollers used for blood sample mixing are typically operated at a fixed or low-speed range of 5&ndash;12 rpm, a range established from clinical literature showing that this rotation speed adequately homogenizes anticoagulated blood without inducing hemolysis from mechanical stress. As of 2026, compact benchtop tube rollers that fit inside standard incubators and cold rooms without taking up significant shelf space remain popular in clinical and research labs for routine sample preparation.
If you&rsquo;re unsure which rotation style or capacity fits your current workflow, the MBP team is here to help&mdash;<a href="https://mbpinc.net/equipments/rollers-and-rotators">contact us today for a custom quote.</a>

Instruction Manual

Product Literature

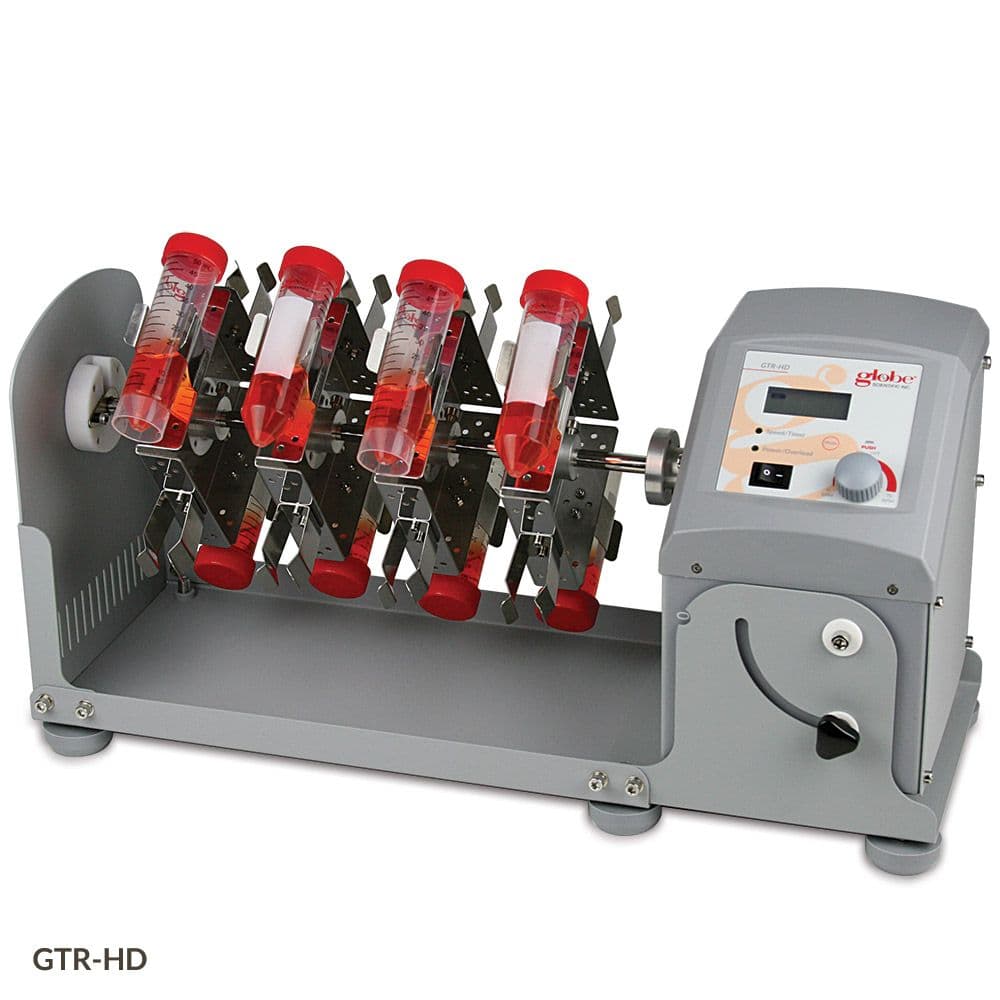

Horizontal Digital Tube Rotator with Adjustable Speed

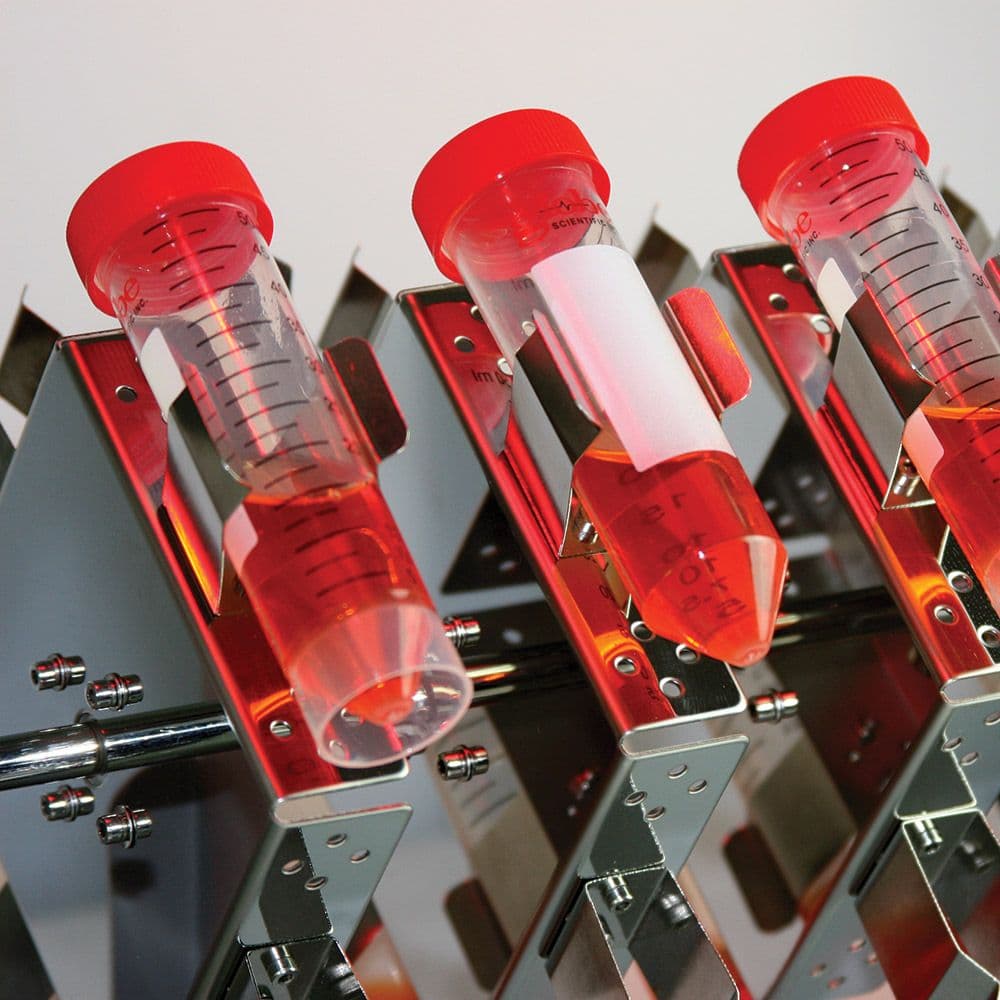

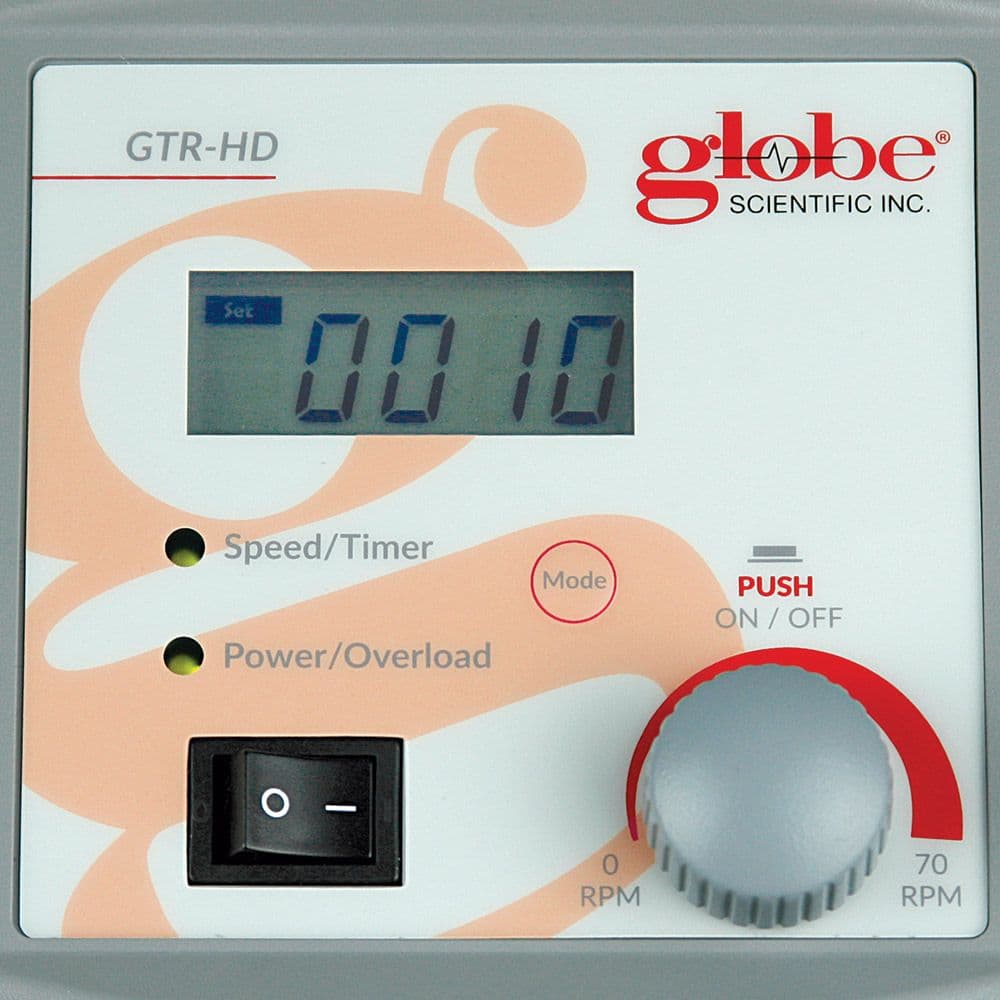

The Globe Scientific™ Horizontal Digital Tube Rotator (GTR-HD) —, 10-70 rpm adjustable, LCD speed and timer display (1-1,199 min), brushless DC motor, 100-240V, cold-room compatible (5-40degC). Supports 1.5/2.0 mL, 15 mL, and 50 mL tubes; 16 x 50 mL vertical holder included. 2-year warranty. Tube holder accessories available separately: GTR-HD-1.5H, GTR-HD-15H, GTR-HD-50H (horizontal); GTR-HD-1.5V, GTR-HD-15V, GTR-HD-50V (vertical).

Tube Capacity

Speed Display

Timer Display

Timer

Speed Range

Operation Mode

Voltage

Power

Dimensions (W x D x H)

Operating Temperature

Permissible Relative Humidity

Protection Class

Warranty

Manufacture

Tube Rotator, Horizontal, Digital, Adjustable Speed and Angle, 120-240v, 50/60Hz, US, UK, EU Plugs (Includes: 16-Place Tube Holder for 50mL Tubes)

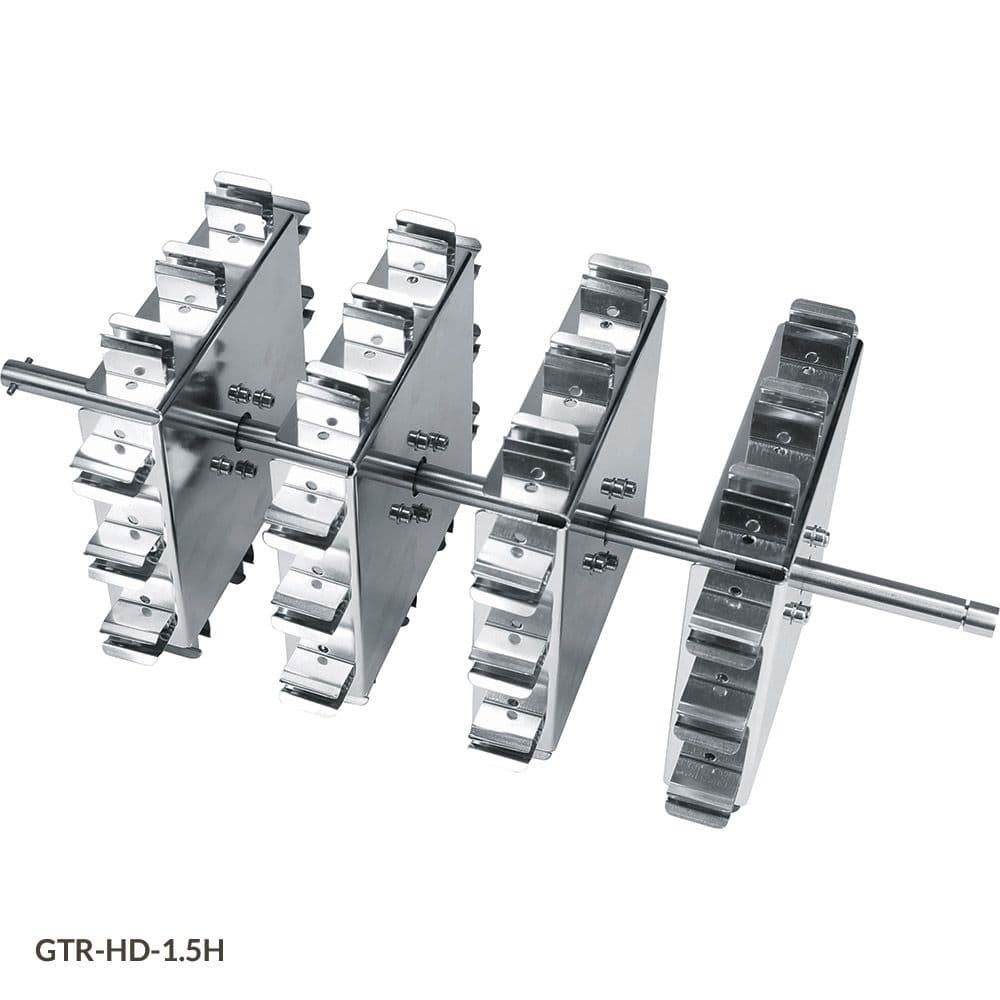

Tube Holder for use with GTR-HD Series Tube Rotators, 48 Horizontal Places for 1.5mL Microcentrifuge Tubes

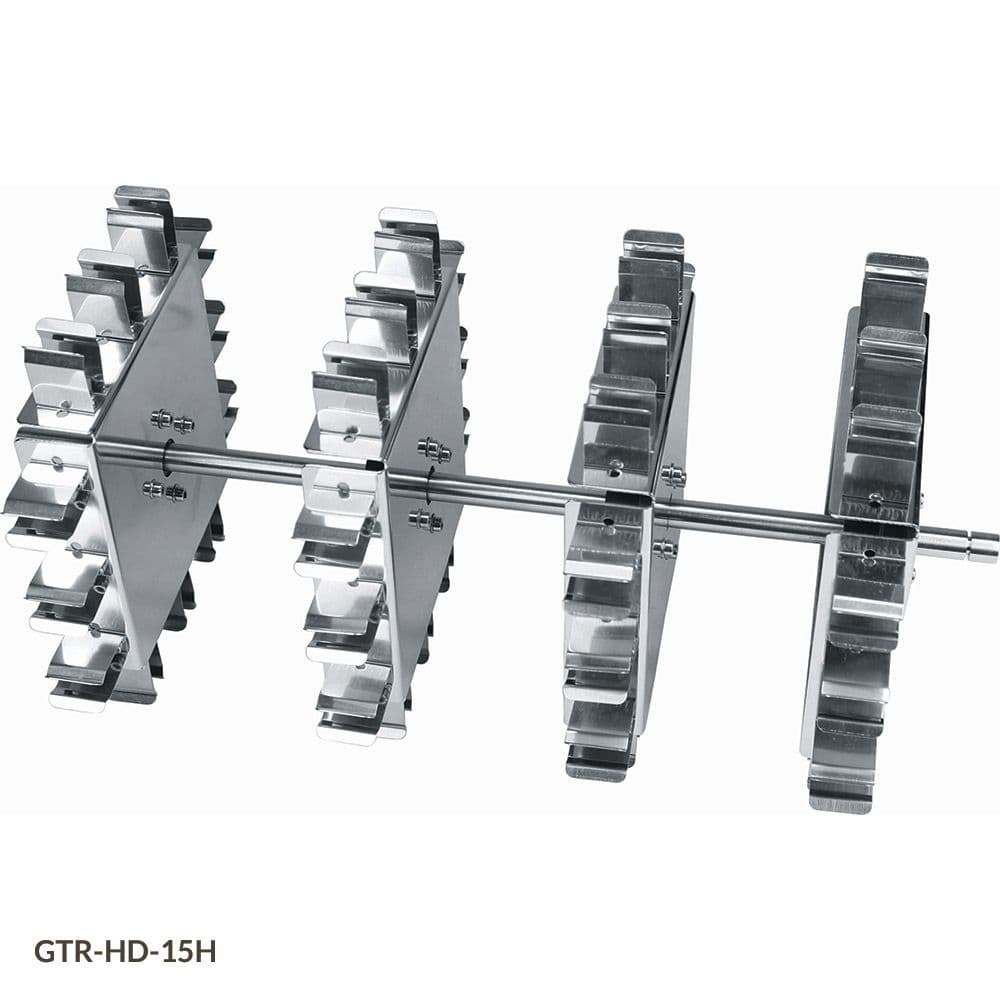

Tube Holder for use with GTR-HD Series Tube Rotators, 48 Horizontal Places for 15mL Microcentrifuge Tubes

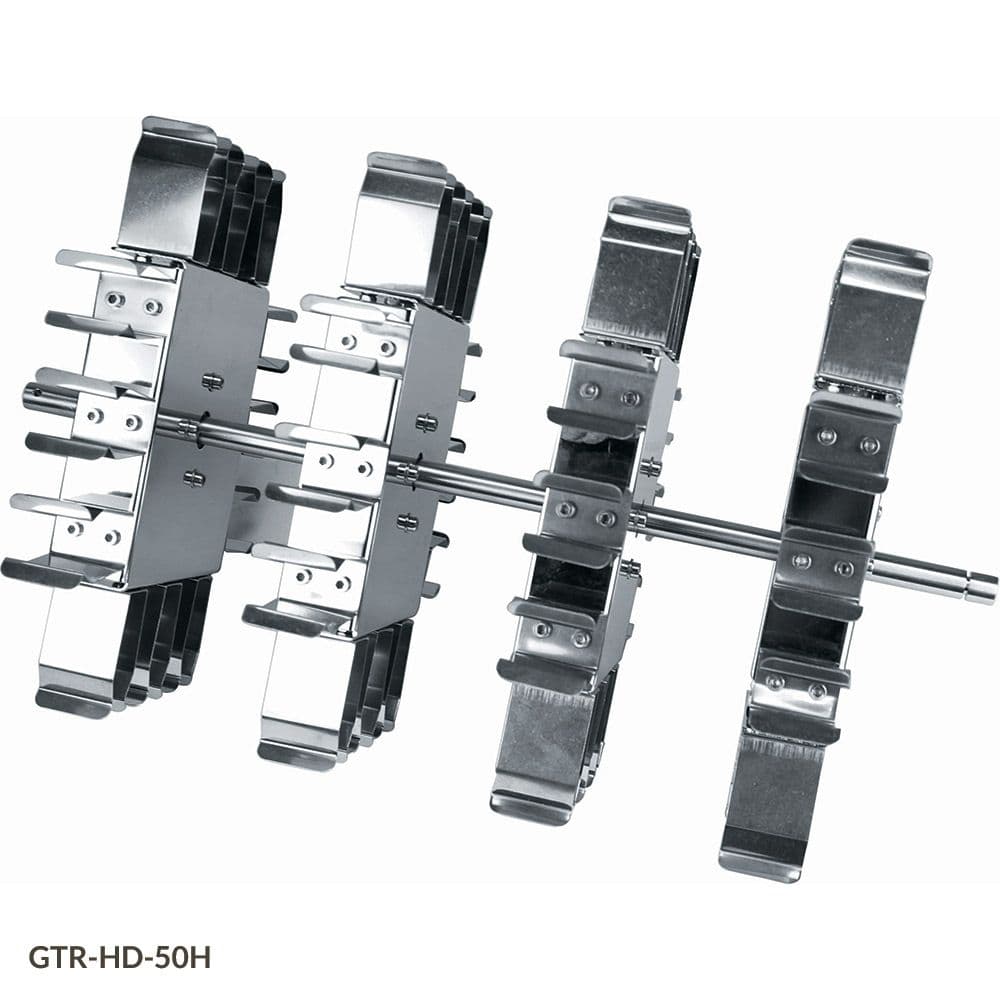

Tube Holder for use with GTR-HD Series Tube Rotators, 24 Horizontal, Places for 50mL Microcentrifuge Tubes

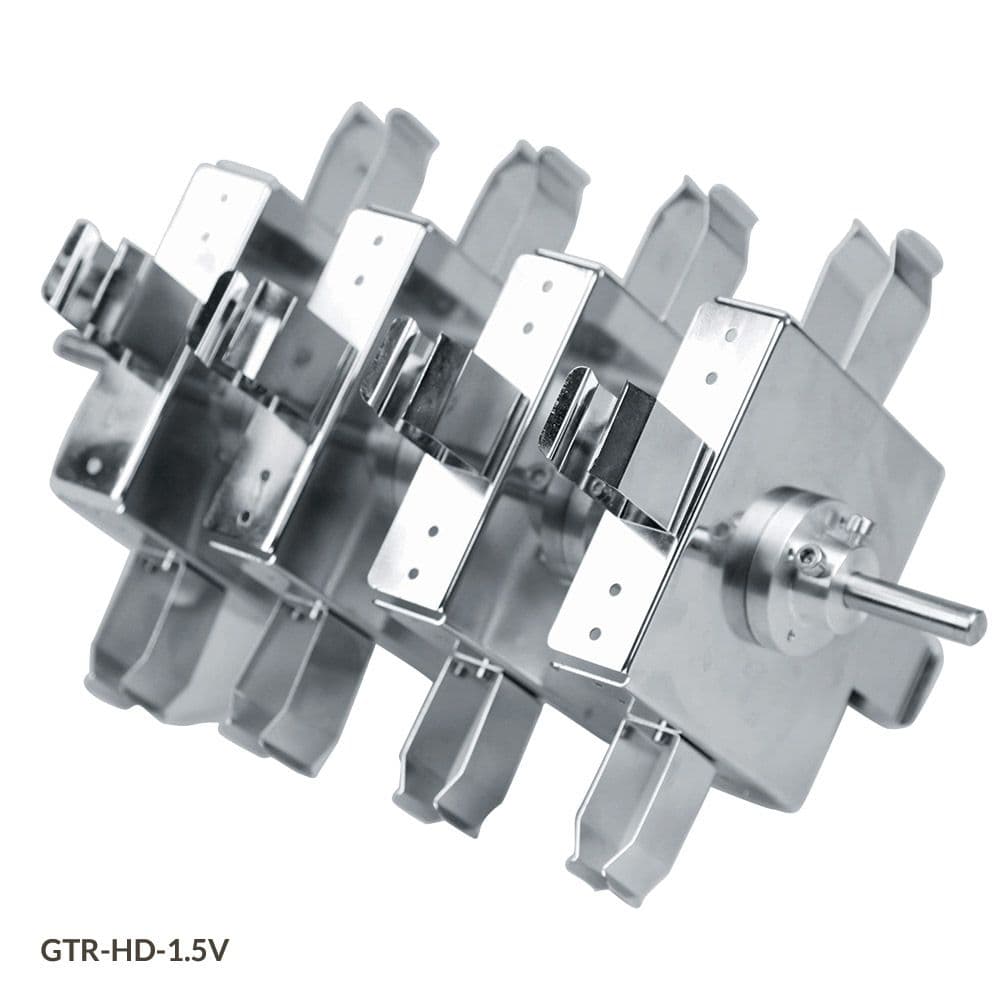

Tube Holder for use with GTR-HD Series Tube Rotators, 32 Vertical Places for 1.5mL Microcentrifuge Tubes

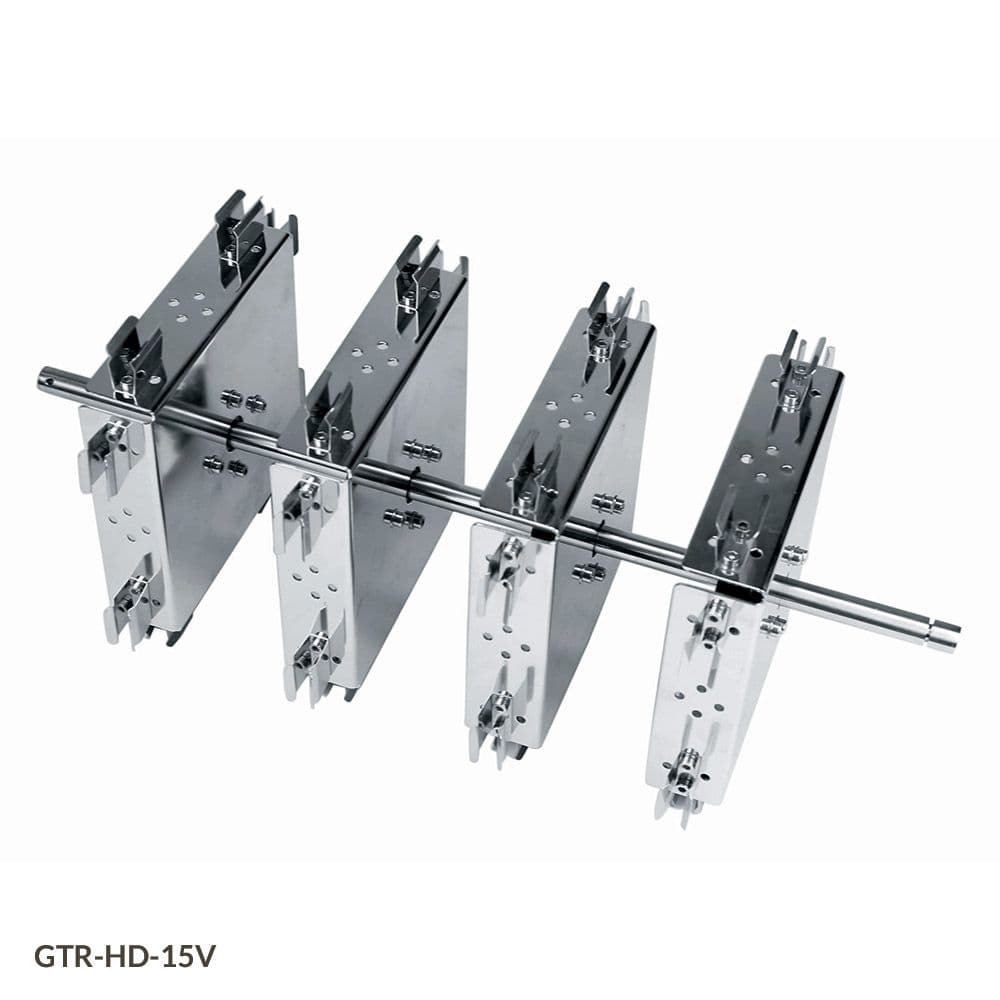

Tube Holder for use with GTR-HD Series Tube Rotators, 16 Vertical Places for 15mL Microcentrifuge Tubes

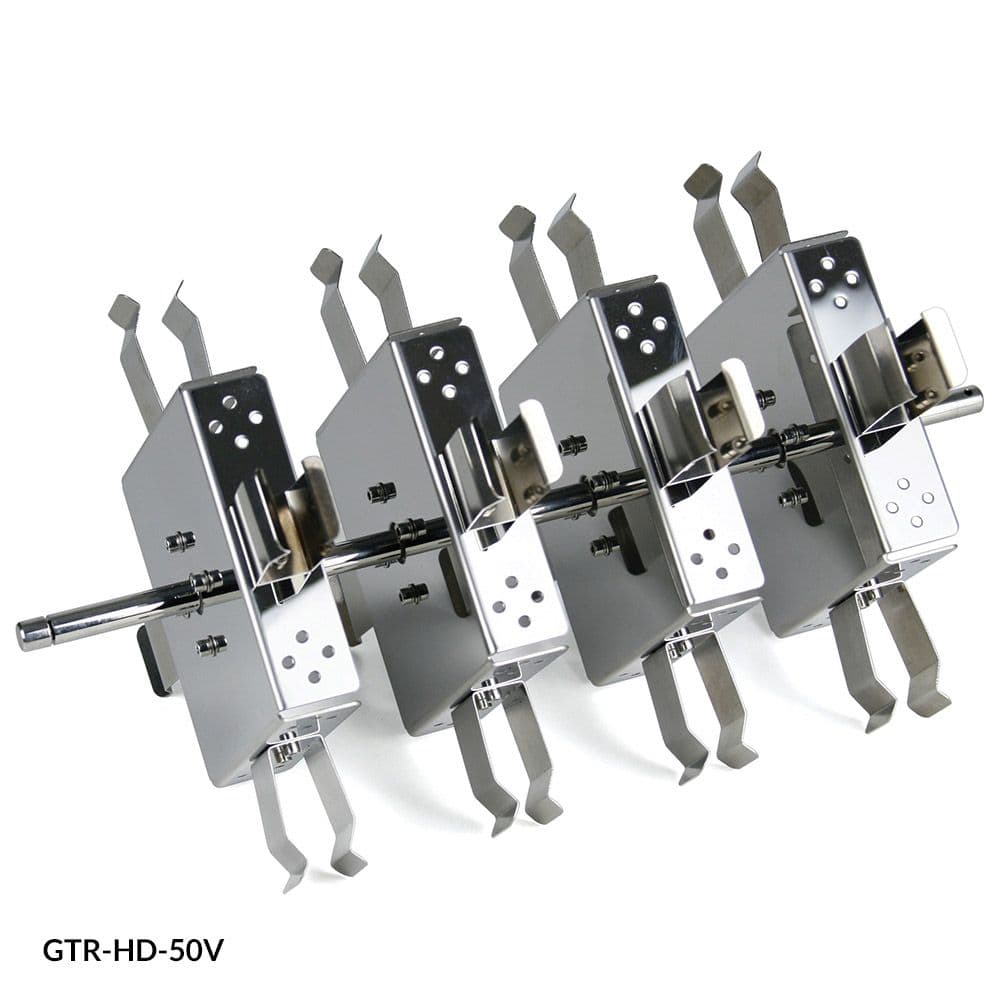

Tube Holder for use with GTR-HD Series Tube Rotators, 16 Vertical Places for 50mL Microcentrifuge Tubes
