Name: Globe Glass Graduated Cylinders, Class A
SKU: 8300005
Availability: InStock

Graduated Cylinders

<h2>What Are Graduated Cylinders?</h2>
&nbsp;
Graduated cylinders are tall, narrow borosilicate glass or polymer vessels calibrated with multiple volume graduation marks, used to measure liquid volumes at bench scale &mdash; more accurately than beakers (&plusmn;5% capacity) but less accurately than volumetric flasks (&plusmn;0.05&ndash;0.1% capacity). They are the everyday volumetric tool in chemistry, biology, and clinical labs for measuring reagent volumes, preparing buffer dilutions, and transferring liquids where a precise but not analytically exact volume is required. Class A borosilicate glass graduated cylinders at MBP conform to ASTM E1272 / ISO 4788 tolerances.&nbsp;Choose Class A cylinders for applications where stated volume accuracy matters; choose Class B for routine measurements where a fast approximate reading is sufficient.
&nbsp;
<h2>Product Range at MBP</h2>
&nbsp;
<ul>
<li dir="ltr" aria-level="1">
Class A high-accuracy measuring cylinders
</li>
<li dir="ltr" aria-level="1">
Class B general use graduated cylinders
</li>
<li dir="ltr" aria-level="1">
Clear single-scale graduated cylinders
</li>
<li dir="ltr" aria-level="1">
Dual-scale (mL/oz) measuring cylinders
</li>
<li dir="ltr" aria-level="1">
Autoclavable laboratory measuring cylinders
</li>
</ul>
&nbsp;
<h2>How to Choose Graduated Cylinders</h2>
&nbsp;
Class A vs. Class B
Class A graduated cylinders conform to ASTM E1272 / ISO 4788 Class A tolerances &mdash; e.g., &plusmn;0.5 mL for a 100 mL cylinder, &plusmn;2.0 mL for a 1,000 mL cylinder. Class B tolerances are twice as wide as Class A. Class A cylinders are appropriate for protocols specifying cylinder-grade volume accuracy; Class B for routine lab measurements where tight tolerances are not required.
Single Scale vs. Dual Scale (mL/oz)
Single-scale cylinders are marked in mL only &mdash; cleaner graduation lines, easier to read, preferred for labs working exclusively in metric units. Dual-scale cylinders carry both mL and oz markings, useful in labs operating across metric and US customary units or for customer-facing applications requiring oz notation.
Autoclavable Glass vs. Plastic
Borosilicate glass graduated cylinders are autoclavable at 121&deg;C, resistant to all common lab reagents, and reusable indefinitely with careful handling. PP plastic cylinders are shatterproof and autoclavable at 121&deg;C but are not suitable for organic solvents or high heat above 135&deg;C.
Size and Base Type
Common sizes: 10 mL, 25 mL, 50 mL, 100 mL, 250 mL, 500 mL, 1,000 mL, and 2,000 mL. Hexagonal bases provide better bench stability than round bases &mdash; important in high-traffic labs where tip-over risk is a concern.
&nbsp;
<h2>Specifications Context</h2>
&nbsp;
Borosilicate glass graduated cylinders conforming to ASTM E1272 / ISO 4788 are calibrated "to contain" (TC) the stated volume &mdash; the mark indicates the volume held in the cylinder, not delivered from it (Class A volumetric flasks are also TC). Reading technique: for aqueous solutions in glass, read the bottom of the curved meniscus at eye level to eliminate parallax error. Borosilicate 3.3 has a strain point of 515&deg;C; autoclave tolerance is 121&deg;C for standard sterilisation cycles. As of June 2026, MBP stocks Class A and Class B graduated cylinders in single and dual-scale formats for labs in the US, Canada, and worldwide.
Reach out to the <a href="https://mbpinc.net/contact-us">team at Molecular Biology Products Inc. (MBP)</a> to request a quote for your lab requirements.

Globe Glass - Catalog

Brochure

Globe Glass Graduated Cylinders, Class A

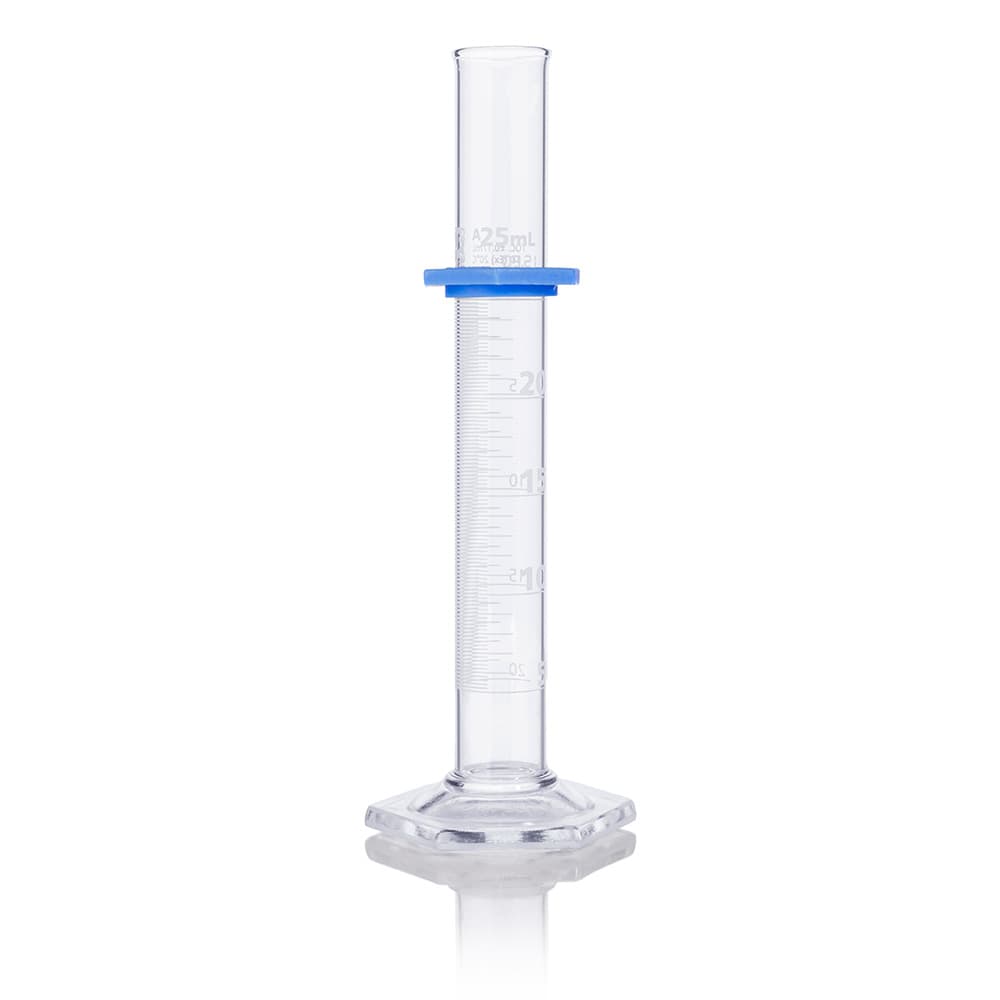

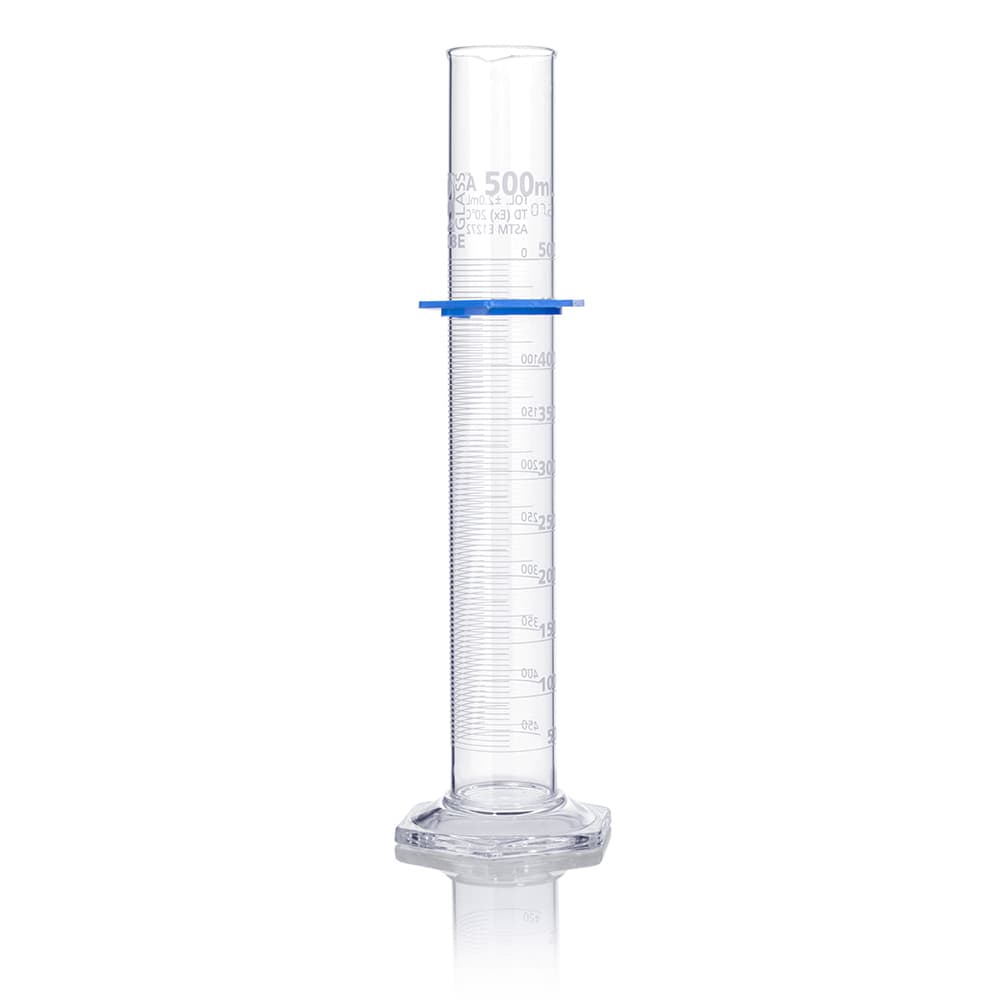

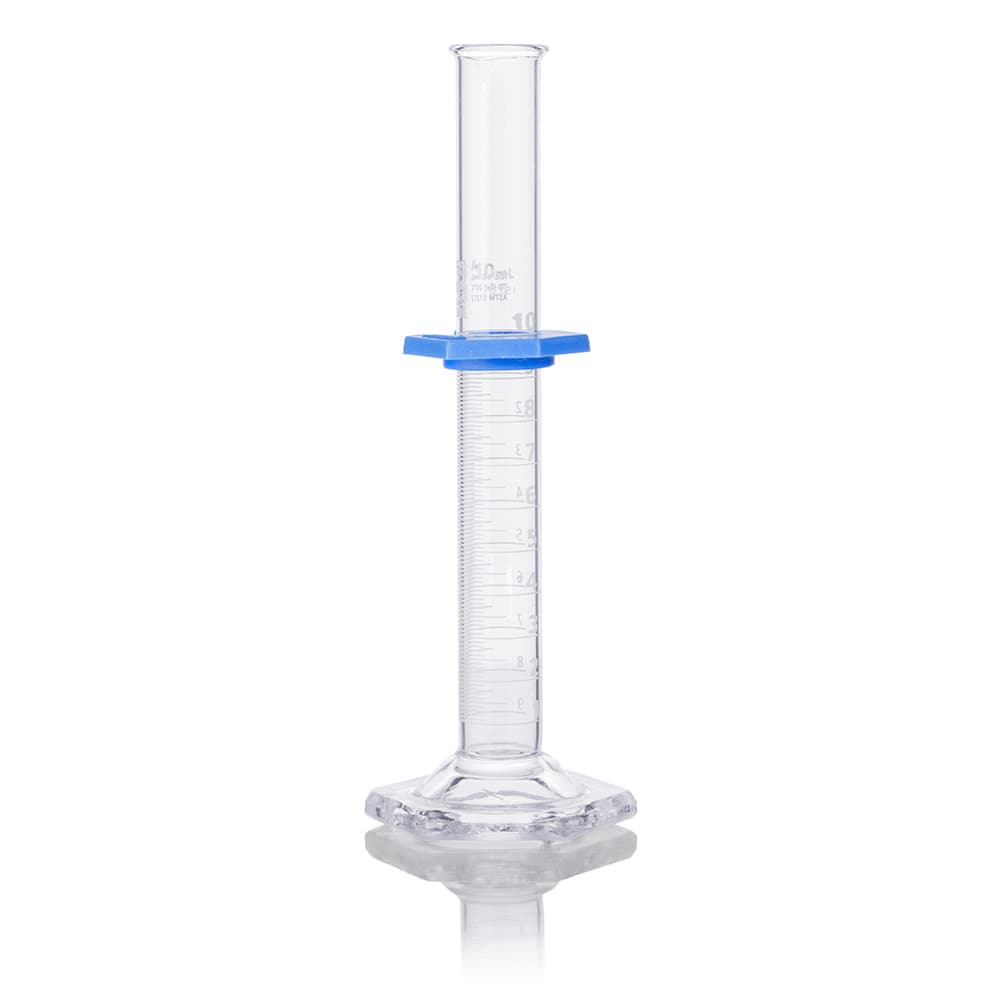

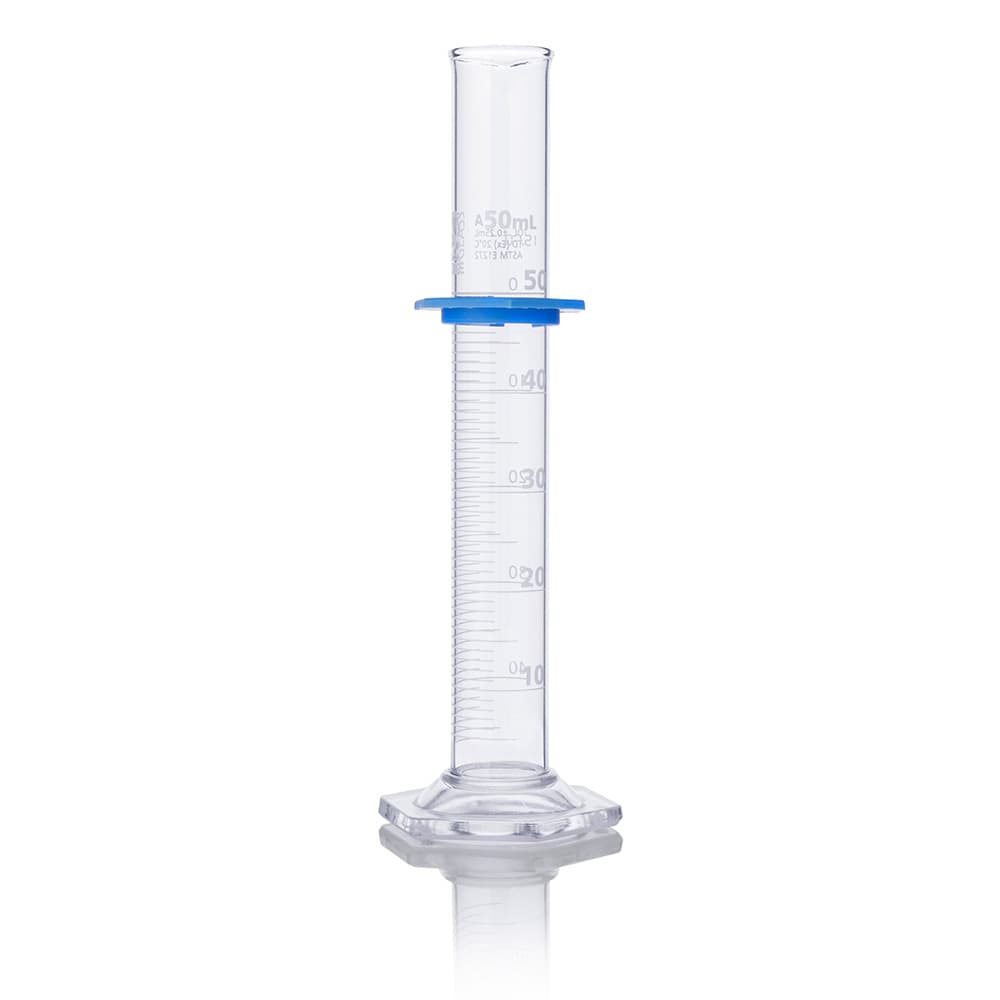

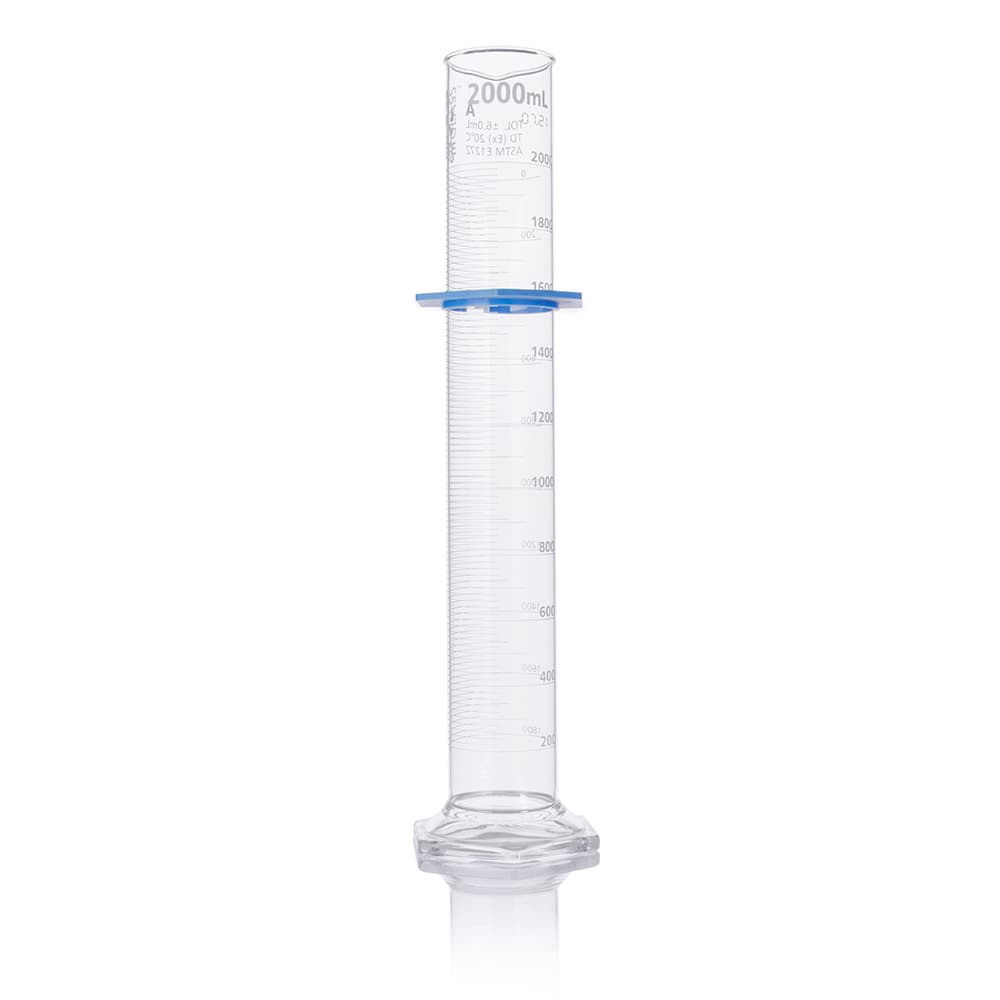

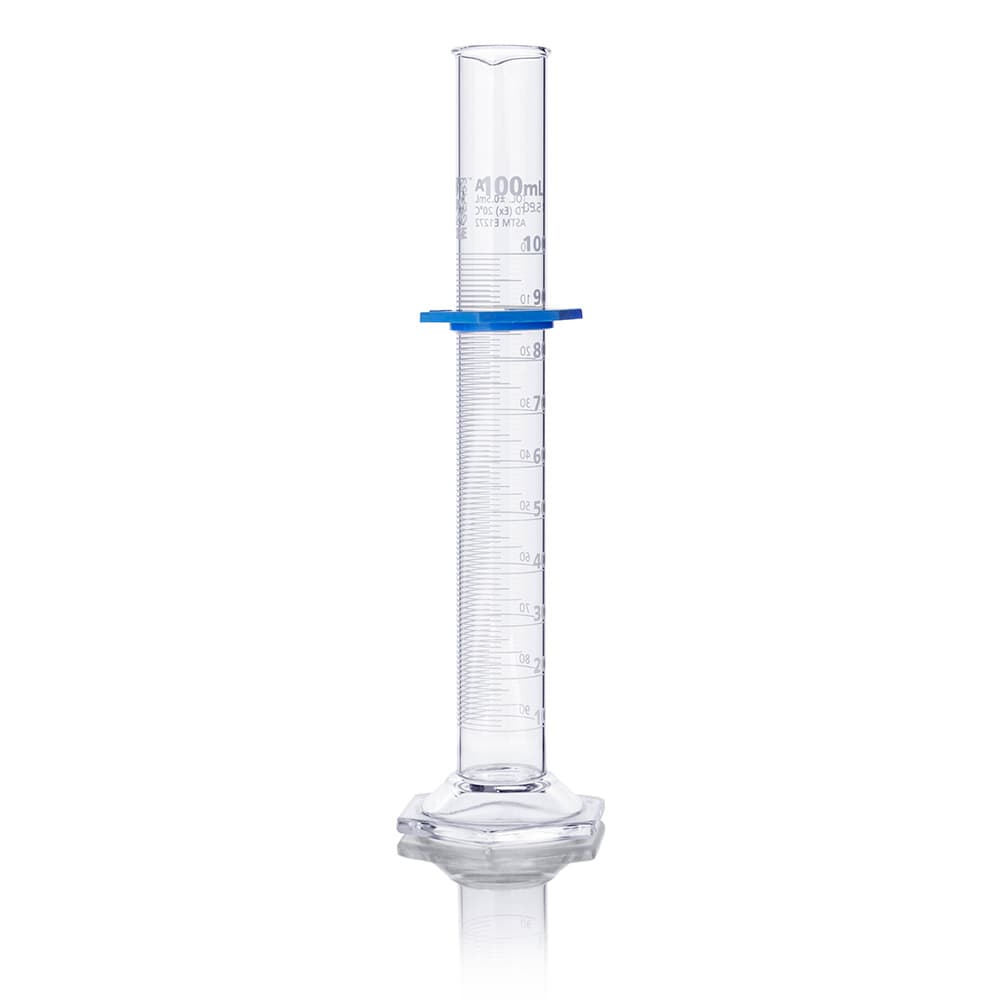

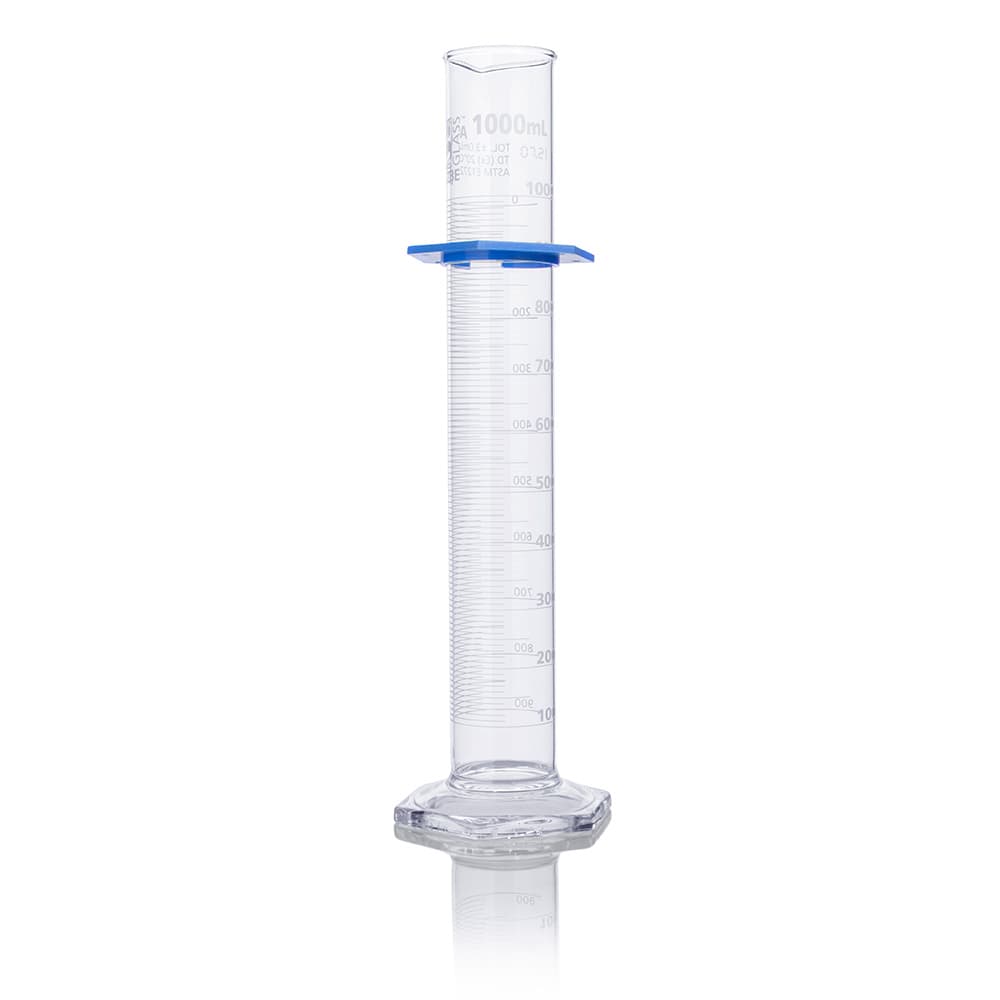

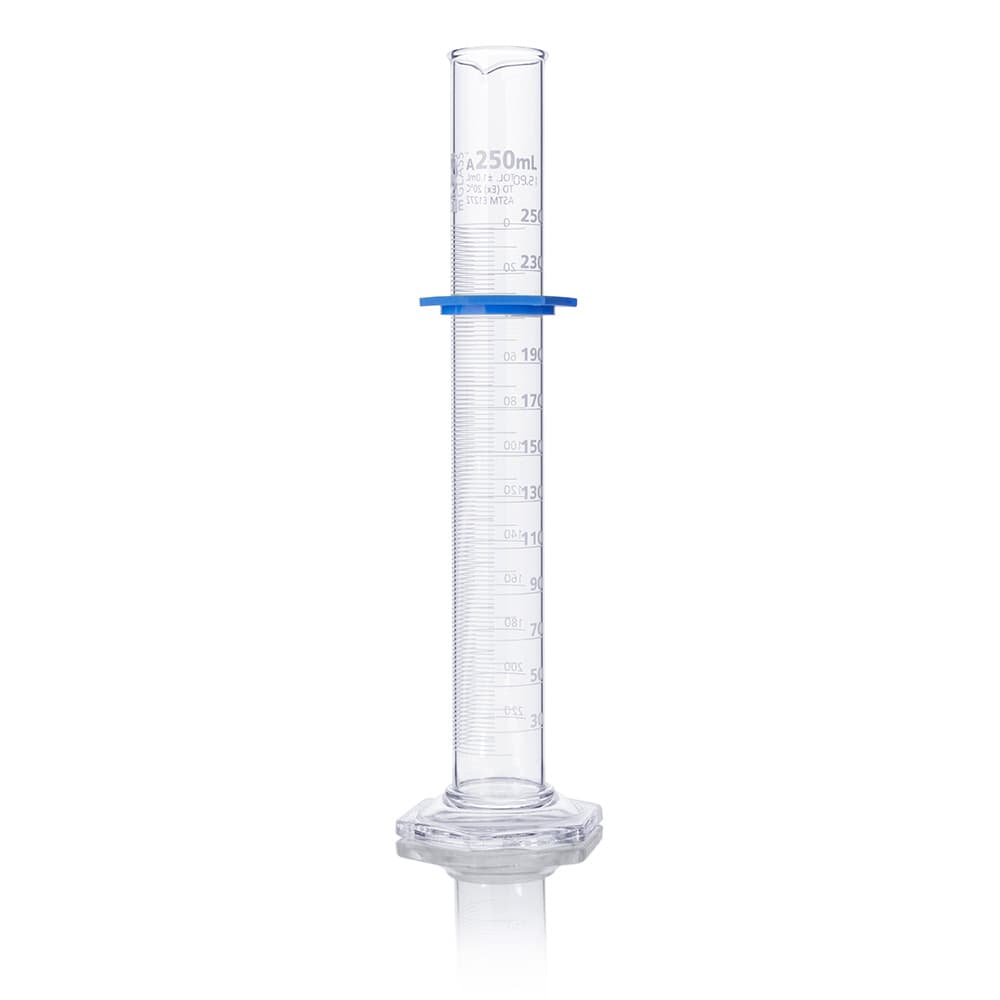

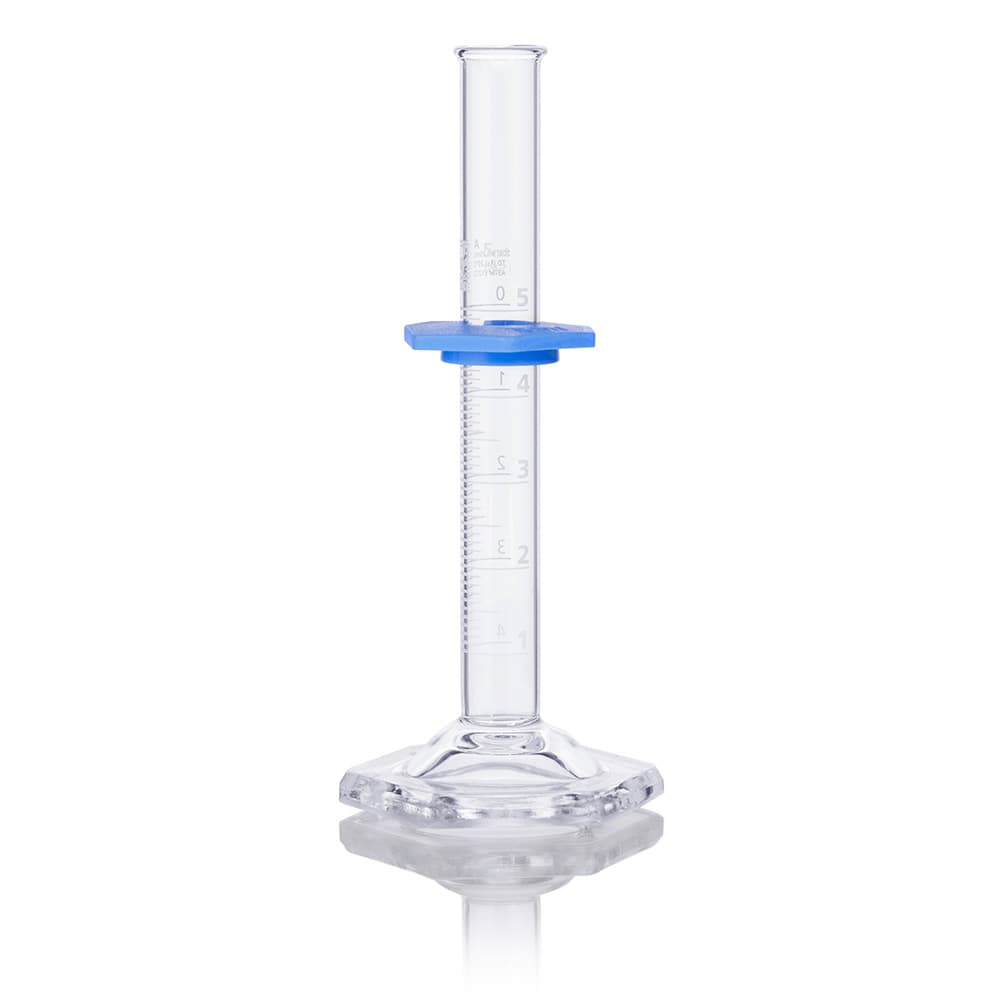

The Globe Glass Graduated Cylinders, Class A by Globe Scientific are ASTM E1272 Class A borosilicate glass cylinders, dual-graduated and TD-calibrated, with solid hexagonal base and PE bumper guard. Available in 9 volumes from 5 mL to 2000 mL: 8300005, 8300010, 8300025, 8300050, 8300100, 8300250, 8300500, 8301000, and 8302000.

Manufacture

Cylinder, Graduated, Globe Glass, 5mL, Class A, To Deliver (TD), Dual Grads, ASTM E1272, 1/Box, CS/6

Cylinder, Graduated, Globe Glass, 10mL, Class A, To Deliver (TD), Dual Grads, ASTM E1272, 1/Box, CS/6

Cylinder, Graduated, Globe Glass, 25mL, Class A, To Deliver (TD), Dual Grads, ASTM E1272, 1/Box, CS/6

Cylinder, Graduated, Globe Glass, 50mL, Class A, To Deliver (TD), Dual Grads, ASTM E1272, 1/Box, CS/6

Cylinder, Graduated, Globe Glass, 100mL, Class A, To Deliver (TD), Dual Grads, ASTM E1272, 1/Box, CS/6

Cylinder, Graduated, Globe Glass, 250mL, Class A, To Deliver (TD), Dual Grads, ASTM E1272, 1/Box, CS/4

Cylinder, Graduated, Globe Glass, 500mL, Class A, To Deliver (TD), Dual Grads, ASTM E1272, 1/Box, CS/4

Cylinder, Graduated, Globe Glass, 1000mL, Class A, To Deliver (TD), Dual Grads, ASTM E1272, 1/Box

Cylinder, Graduated, Globe Glass, 2000mL, Class A, To Deliver (TD), Dual Grads, ASTM E1272, 1/Box
