Overview

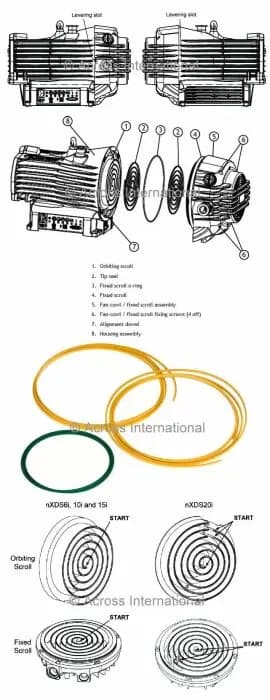

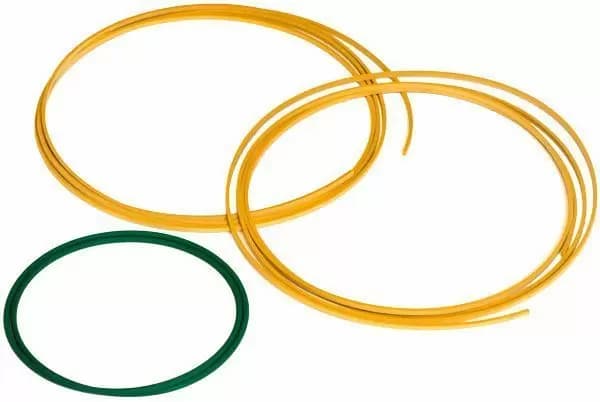

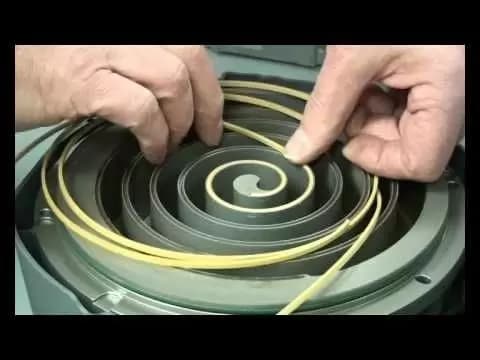

This Edwards major service kit can be used to service the following dryscroll vacuum pumps: nXDS6i, nXDS10i, nXDS15i, nXDS20i, nXDS6iC, nXDS10iC, nXDS15iC, nXDS20iC, nXDS6iR, nXDS10iR, nXDS15iR and nXDS20iR.
The nXDS series is the next generation in completely oil free, dry scroll pumps and replaces the XDS10. nXDS improves on legacy XDS pumps by offering increased pumping speeds, combined with lower ultimate pressures, lower power consumption and lower noise. Gas ballast allows for pumping of condensable vapours including, water, solvents, dilute acids and bases. nXDS pumps also feature the latest in tip seal technology giving significantly longer life between tip seal changes. Integrated inverter drive with auto sensing voltage input delivers optimized pumping performance globally. nXDS pumps are designed to be completely field serviceable.
Features and Benefits
- Lubricant-free within the vacuum envelope and hermetically sealed means totally clean and dry vacuum to prevent cross contamination
- No atmosphere to vacuum shaft seals means bearings are completely isolated, which prevents process attack and means the bearings run cooler and last longer
- Simple single sided scroll arrangement combined with an innovative motor and bearing design allows for easy field service with a minimum of special tooling for low cost of ownership and maximum up-time
- Improved motor and drive efficiencies for reduced power and cost of ownership
- Advanced interface provides a variety of traditional, analogue and digital control methods enabling remote control/monitoring via USB, RS232 or RS485
- One year warranty, as well as technical support from Edwards
Applications
- General clean pumping applications
- Scanning Electron Microscopes – SEM
- Beam lines and high energy physics
- Backing turbo pumps
- Centrifuges, ultra-high speed
- Coating
- Cryogenics
- Degassing/curing – oil, epoxy resin
- Distillation/extraction/filtration
- Freeze drying
- Furnaces
- Gel drying
- Laboratory bench top vacuum
- Lasers, gas recovery and recirculation
- Leak detectors, Helium
- Load locks and transfer chambers
- Rare gas recirculation
- Rare gas recovery
- Refrigeration manufacture
- Research and development
- Rotary, centrifugal evaporators
- SEM/FIB (ion beam repair)
- Solvent recovery
- Surface science instruments
nXDS10iC
| Power requirements | 100-127V~10A or 200-240V~6A, 50/60 Hz, 280 watts |
| Nominal rotational speed | 1800 rpm |
| Displacement | 12.7 m3h-1/ 7.5 ft3min-1 |
| Peak pumping speed | 11.4 m3h-1/ 6.7 ft3min-1 |
| Ultimate vacuum (total pressure) | 0.007 mbar / 0.005 Torr / 5 micron |
| Minimum standby rotational speed | 1200 rpm |
| Speed control resolution (% of full speed) | 1% |
| Maximum inlet pressure for water vapour | 35 mbar |
| Maximum water vapour pumping rate | 145 gh-1 |
| Maximum continuous inlet pressure | 200 mbar |
| Power connector 1-ph | IEC EN60320 C13 |
| Recommended fuse | 10A, 250Vac rms |
| Unit/shipping weight | 57 Lb / 60 Lb |
| Unit/shipping dimensions | 16.5x10x12″ / 20.5x13x14″ (DxWxH) |
| Inlet flange | NW25 (KF25) |
| Exhaust flange | NW25 (KF25) |
| Noise level | 52 dB(A) |
| Vibration at inlet flange | < 4.5 mms-1Â (rms) |
| Leak tightness (static) | < 1×10-6mbar ls-1 |
| Operating temperature range | 10 to 40 C / 41 to 104 F |
| Edwards part number | A73602983 |
| Certification | CE, UL |
nXDS20iC
| Power requirements | 100-127V~10A or 200-240V~6A, 50/60 Hz, 260 watts |
| Nominal rotational speed | 1800 rpm |
| Displacement | 28.0 m3h-1/ 16.5 ft3min-1 |
| Peak pumping speed | 22.0 m3h-1/ 13.0 ft3min-1 |
| Ultimate vacuum (total pressure) | 0.030 mbar / 0.022 Torr / 22 micron |
| Minimum standby rotational speed | 1200 rpm |
| Speed control resolution (% of full speed) | 1% |
| Maximum inlet pressure for water vapour | 20 mbar |
| Maximum water vapour pumping rate | 220 gh-1 |
| Maximum continuous inlet pressure | 50 mbar |
| Power connector 1-ph | IEC EN60320 C13 |
| Recommended fuse | 10A, 250Vac rms |
| Unit/shipping weight | 56 Lb / 60 Lb |
| Unit/shipping dimensions | 16.5x10x12″ / 20.5x13x14″ (DxWxH) |
| Inlet flange | NW25 (KF25) |
| Exhaust flange | NW25 (KF25) |
| Noise level | 52 dB(A) |
| Vibration at inlet flange | < 4.5 mms-1Â (rms) |
| Leak tightness (static) | < 1×10-6mbar ls-1 |
| Operating temperature range | 10 to 40 C / 41 to 104 F |
| Edwards part number | A73802983 |
| Certification | CE, UL, CSA |
nXDS6iC
Technical Data
| Power requirements | 100-127V~10A or 200-240V~6A, 50/60 Hz, 260 watts |
| Nominal rotational speed | 1800 rpm |
| Displacement | 6.8 m3h-1/ 4.0 ft3min-1 |
| Peak pumping speed | 6.2 m3h-1/ 3.6 ft3min-1 |
| Ultimate vacuum (total pressure) | 0.020 mbar / 0.015 Torr / 15 micron |
| Minimum standby rotational speed | 1200 rpm |
| Speed control resolution (% of full speed) | 1% |
| Maximum inlet pressure for water vapour | 35 mbar |
| Maximum water vapour pumping rate | 110 gh-1 |
| Maximum continuous inlet pressure | 200 mbar |
| Power connector 1-ph | IEC EN60320 C13 |
| Recommended fuse | 10A, 250Vac rms |
| Unit/shipping weight | 58 Lb / 63 Lb |
| Unit/shipping dimensions | 16.5x10x12″ / 20.5x13x14″ (DxWxH) |
| Inlet flange | NW25 (KF25) |
| Exhaust flange | NW25 (KF25) |
| Noise level | 52 dB(A) |
| Vibration at inlet flange | < 4.5 mms-1Â (rms) |
| Leak tightness (static) | < 1×10-6mbar ls-1 |
| Operating temperature range | 10 to 40 C / 41 to 104 F |
| Edwards part number | A73502983 |
| Certification | CE, UL, CSA |
XDS35iC
| Power | 100-120V or 200-230V switchable |
| Displacement / peak pumping speed (50/60Hz) | 43 m3h-1Â / 25 ft3min-1 35 m3h-1Â / 21 ft3min-1 |
| Ultimate vacuum (Total pressure) Max continuous inlet pressure | 1 x 10-2Â mbar / 8 x 10-3Torr 35 mbar / 23 Torr |
| Max water vapour pumping rate – GB I / GBII | 70 gh-1 / 240 gh-1 |
| Max continuous outlet pressure | 0.2Â bar gauge / 2.9 psig |
| Max allowed inlet and GB pressure | 0.5 bar gauge / 7 psig |
| Motor power / speed | 0.52kW / 1750 rpm |
| Power connector | IEC EN60320 C19 |
| Weight | 48 kg / 105 lb |
| Inlet flange / Exhaust flange | NW40 / NW25 |
| Noise and vibration | 57 dB (A), <4.5mms -1 (rms) |
| Leak tightness (static) | <1 x 10-6Â mbar ls-1 |
| Operating temperature range | 10 to 40 °C / 50 to 104 °F |
| Compliance | CE, UL, CSA, ATEX |
XDS46iC
| Power | 100-120V or 200-230V switchable |
| Displacement 50 or 60Hz Peak pumping speed 50 or 60Hz | 60 m3h-1Â / 35 ft3min-1 40Â m3h-1Â / 23.5 ft3min-1 |
| Ultimate vacuum (Total pressure) | 5 x 10-2Â mbar / 4 x 10-2Â Torr |
| Max continuous inlet pressure | 40 mbar / 30 Torr |
| Max continuous outlet pressure | 0.2Â bar gauge / 2.9 psig |
| Max allowed inlet and GB pressure | 0.5 bar gauge / 7 psig |
| Motor power | 0.52kW |
| Power connector | IEC EN60320 C19 |
| Nominal rotation speed | 1750 rpm |
| Weight | 48 kg / 105 lb |
| Inlet / exhaust flange | NW40 / NW25 |
| Noise and vibration level | 55.4 dB (A), <4.5mms -1 (rms) |
| Leak tightness (static) | <1 x 10-6Â mbar ls-1 |
| Operating temperature range | 10 to 40 °C / 50 to 104 °F |
| Compliance | UL, CE, ATEX |
