Name: Edwards nXDS Series Dry Scroll Pumps
SKU: nXDS10iC

Edwards Pumps

<h2>What are Edwards vacuum pumps?</h2>
&nbsp;
These leading global vacuum technologies offer a broad range of laboratory and industrial systems. The lineup includes single-stage oil-sealed rotary vane pumps for standard workflows, robust two-stage rotary vane pumps for deeper vacuum and higher throughput, and advanced dry scroll pump series for completely oil-free operation. These systems are widely specified by analytical instrument manufacturers as the required or recommended roughing pump for mass spectrometers, electron microscopes, and other high-vacuum instruments requiring reliable rough vacuum.
&nbsp;
<h2 data-path-to-node="0">What You Will Find:</h2>
&nbsp;
<ul data-path-to-node="1">
<li>
Robust, dual-stage oil-sealed rotary vane pumps recognized across the industry for achieving fast pumping speeds and handling heavy vapor loads.
</li>
<li>
Oil-free dry scroll systems featuring hermetically sealed mechanisms to provide clean, high-performance vacuums without the risk of oil back-streaming.
</li>
<li>
Chemically resistant dry diaphragm units built with premium PTFE components to handle aggressive solvent vapors directly in routine chemistry applications.
</li>
<li>
Advanced turbomolecular pumps and integrated pumping stations engineered to deliver steady ultra-high vacuum levels for sensitive analytical instrumentation.
</li>
</ul>
&nbsp;
<h2>How to choose an Edwards vacuum pump</h2>
&nbsp;
Choose the RV series for oil-sealed single-stage deep roughing vacuum
The Edwards RV series (RV3, RV5, RV8, RV12) are single-stage oil-sealed rotary vane pumps achieving ultimate vacuum levels of approximately 0.001&ndash;0.005 mbar with pumping speeds from 3 to 12 m&sup3;/h, covering the roughing vacuum requirements of most analytical instruments from small benchtop mass spectrometers to larger research instruments.
Choose the E2M series for two-stage deep vacuum and higher throughput
The Edwards E2M series provides two-stage oil-sealed rotary vane pumping with deeper ultimate vacuum than single-stage models, reaching approximately 0.00015 mbar, and higher pumping speeds for larger instruments or applications requiring faster pump-down times.
Choose the nXDS dry scroll pump for oil-free analytical instrument backing
The Edwards nXDS series (nXDS-6i, nXDS-10i, nXDS-15i) are dry scroll pumps providing oil-free roughing vacuum to approximately 0.07 mbar ultimate vacuum, positioned as oil-free alternatives to the RV series for analytical instruments where oil contamination risk must be eliminated, similar in function to the Agilent IDP series.
Confirm Edwards pump compatibility with your instrument's specifications
Many analytical instrument manufacturers specify Edwards pump models by series and model number in their installation guides, and using the specified model ensures compatibility with the instrument's vacuum system connections, flow requirements, and expected pump-down time. Using a pump of insufficient pumping speed can prevent an instrument from reaching operating vacuum within the expected time.
Plan for oil maintenance requirements of oil-sealed RV and E2M models
RV and E2M series pumps require regular oil changes using Edwards-specified Ultragrade pump oil, with oil condition monitoring recommended and oil change intervals dependent on the application's chemical exposure and operating cycle. A cold trap upstream prevents solvent vapor from contaminating the oil and shortening oil life.
&nbsp;
<h2>Specifications context</h2>
&nbsp;
Edwards RV series rotary vane pumps achieve their deep ultimate vacuum using a two-gas-ballast system that can be opened to purge condensable vapors from the oil during pump operation, reducing the rate of oil contamination when operating in humid environments or when small amounts of condensable vapors are present. As of 2026, Edwards RV and nXDS pumps remain among the most widely specified roughing pump series for analytical instrument installations, with the nXDS gaining adoption as an oil-free alternative to the RV for new installations where oil-free operation is preferred.
<div class="html-content mt-[30px] rounded-[30px] border border-gray5 px-5 py-6">
<a href="https://mbpinc.net/contact-us">Get in touch with the experts at MBP</a> today to request your custom quote.
</div>

NXDs Series Dry Scroll Vacuum Pumps

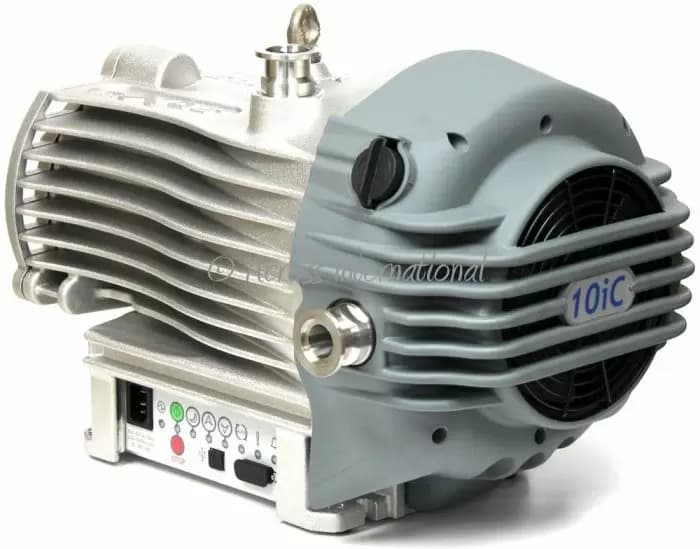

Edwards nXDS10iC 7.5 cfm oil free scroll vacuum pump

KF25 stainless steel vacuum bellow (3 ft)

Packing Process Sheet(Printed On Receipt Paper)

Edwards nXDS10iC 7.5 cfm Chemical-Resistant Dry Scroll Pump

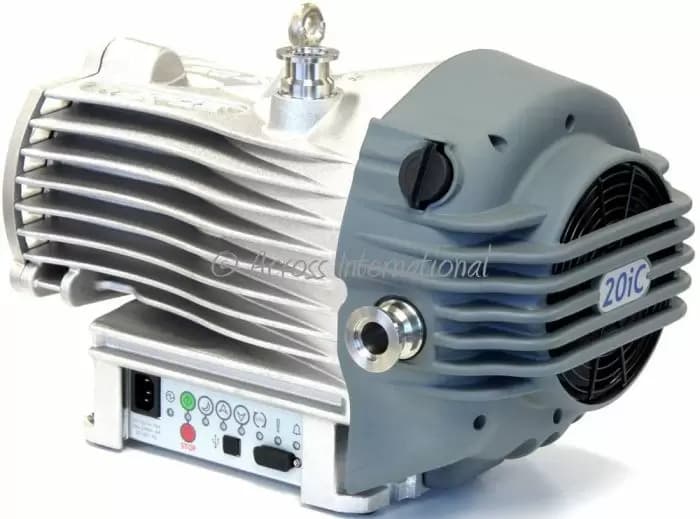

Edwards nXDS20iC 16.5 cfm oil free scroll vacuum pump

Edwards nXDS20iC 16.5 cfm Chemical-Resistant Dry Scroll Pump

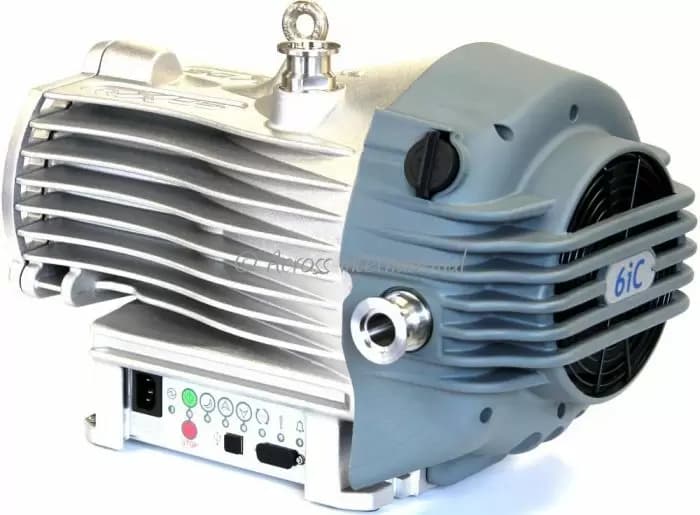

Edwards nXDS6iC 4.0 cfm oil free scroll vacuum pump

Edwards nXDS6iC 4.0 cfm Chemical-Resistant Dry Scroll Pump

Edwards nXDS Series Dry Scroll Pumps

The Edwards nXDS iC Series by Edwards Vacuum is a line of chemical-resistant dry scroll vacuum pumps available in 4.0, 7.5, and 16.5 CFM configurations and 0.007 mbar (5 micron) ultimate pressure. The iC variant adds Chemraz® internal valves and stainless-steel fittings for halogenated solvent and acid vapor applications where standard elastomers fail. Oil-free operation eliminates exhaust oil mist and oil backstreaming concerns. KF25/NW25 inlet, 280W, 100–240V. Contact MBP for pricing and institutional quotes. Available as nXDS6iC (4.0 CFM), nXDS10iC (7.5 CFM), and nXDS20iC (16.5 CFM).
