Single Channel Pipettors

<h2 dir="ltr">What Are Single-Channel Pipettors?</h2>
 A single-channel pipettor is the single most widely used liquid handling instrument in molecular biology, cell biology, and clinical research. It transfers precise volumes between 0.1 &micro;L and 5,000 &micro;L, one well or tube at a time, using an air-displacement piston mechanism. The piston creates a partial vacuum that aspirates liquid into a disposable tip; advancing the piston fully dispenses the liquid. A spring-loaded tip ejector releases the used tip without hand contact for contamination control. Manual models depend on finger force and offer simple, battery-free operation; electronic models add programmable aspiration/dispensing speeds, multi-dispense modes, and up to 5 custom pipetting programs.&nbsp; A set of four manual single-channel pipettors (P10, P20, P200, P1000) covers 95% of molecular biology liquid handling; add electronic models for high-throughput repetitive work.
&nbsp;
<h2 dir="ltr">What you will find:</h2>
&nbsp;
<ul>
<li dir="ltr" aria-level="1">
Adjustable volume single-channel pipettors for flexible workflows
</li>
<li dir="ltr" aria-level="1">
Fixed volume pipettors for repeatable dispensing tasks
</li>
<li dir="ltr" aria-level="1">
Mechanical pipettors for standard lab use
</li>
<li dir="ltr" aria-level="1">
Ultra-low volume micropipettors for precise &micro;L handling
</li>
<li dir="ltr" aria-level="1">
Wide-range pipettors covering &micro;L to mL volumes
</li>
<li dir="ltr" aria-level="1">
Autoclavable pipettors for sterile environments
</li>
<li dir="ltr" aria-level="1">
Lightweight ergonomic pipettors for long sessions
</li>
</ul>
<h2 dir="ltr"> How to Choose a Single-Channel Pipettor</h2>
 Volume Range: Build a Complete Bench Set A standard four-pipettor bench set covers P10 (1&ndash;10 &micro;L), P20 (2&ndash;20 &micro;L), P200 (20&ndash;200 &micro;L), and P1000 (100&ndash;1,000 &micro;L). For sub-microliter work (sequencing, single-cell), add a P2 (0.2&ndash;2 &micro;L). For large-volume dispensing (media prep, column loading), add a P5000 (1,000&ndash;5,000 &micro;L). Avoid selecting a volume range that places your target dispense below 20% of the maximum &mdash; accuracy degrades at the low end of any range. Manual vs Electronic Manual single-channel pipettors (Eppendorf Research Plus, Gilson PIPETMAN Classic, Rainin Pipet-Lite XLS+) are the standard for routine lab work: field-calibratable, autoclavable, and requiring no power source. Electronic single-channel pipettors (Eppendorf Research Pro, Rainin Pipet-Lite XLS+ Electronic) add: programmable aspiration/dispense speed (5 speeds), multi-dispense (repeat pipetting) mode, mix mode, dilution mode, and backlight LCD volume display. Electronic models reduce hand fatigue in workflows exceeding 200&ndash;300 tip changes per day. Tip Compatibility Three tip systems cover the market: standard conical (universal fit &mdash; fits Eppendorf Research Plus, Gilson PIPETMAN, Rainin non-LTS, Thermo, Sartorius/BioHit); Rainin LTS cylindrical (requires LTS-specific tips &mdash; lower force insertion); Eppendorf epT.I.P.S. proprietary (tightest fit for Eppendorf instruments). Select the tip system that matches your pipettor purchase and existing tip inventory before committing to a brand. Autoclavability and Chemical Resistance Manual pipettors from Eppendorf, Gilson, and Rainin have fully autoclavable lower sections (121&deg;C, 15 psi, 15 min). Electronic pipettors have autoclavable nose cones only &mdash; the electronic module cannot be autoclaved. Calibration and Service All single-channel pipettors are factory-calibrated per ISO 8655. Field recalibration tools are available for Eppendorf, Gilson, and Rainin to perform in-lab gravimetric verification without external service.
<h2 dir="ltr"> Specifications Context </h2>
 ISO 8655 Part 2 accuracy spec for a 200 &micro;L air-displacement pipettor: &plusmn;0.8 &micro;L systematic error, &le;0.3 &micro;L random error (Eppendorf Research Plus specification at 200 &micro;L). Most manual pipettors weigh 70&ndash;120 g; electronic models weigh 150&ndash;220 g. Operating temperature range: typically 15&ndash;40&deg;C. Eppendorf Research Plus, Gilson PIPETMAN Classic, and Rainin Pipet-Lite XLS+ LTS remain the three dominant single-channel pipettor platforms in North American research labs.&nbsp;
&nbsp;
Ready to find your new favorite lab tool? Don&rsquo;t just settle for any grip&mdash;find the one that fits your hand and your science. <a href="https://mbpinc.net/contact-us" style="color: #236fa1;">Reach out to the MBP team</a> today for a customized quote.

3322-Group-Pipettor Brochure

Diamond® Jr. Mini Pipettors

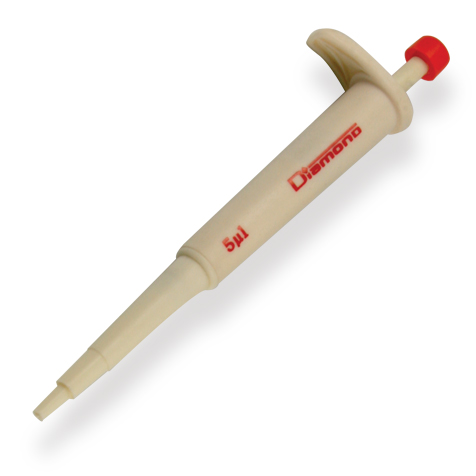

Globe Scientific Diamond® Jr. pocket-sized fixed-volume mini pipettors (SKU 3322) — autoclavable, colour-coded, available in 5 µL, 10 µL, 20 µL, 25 µL, 35 µL, 50 µL, and 100 µL. Designed for diagnostic kits, water testing, science education, and field lab use. Non-adjustable fixed volume eliminates accidental dial changes. Assorted 6-set available (3322P).

Manufacture

Pipette, Diamond Jr., 5uL, Orange, Autoclavable , EA

Pipette, Diamond Jr., 10uL, Pink, Autoclavable, EA

Pipette, Diamond Jr., 20uL, Green, Autoclavable, EA

Pipette, Diamond Jr., 25uL, Green, Autoclavable, EA

Pipette, Diamond Jr., 35uL, Autoclavable, EA

Pipette, Diamond Jr., 50uL, Purple, Autoclavable, EA

Pipette, Diamond Jr., 100uL, Orange, Autoclavable, EA

Pipette, Diamond Jr., Pack of 6 Pipettes (5uL, 10uL, 20uL, 25uL, 50uL and 100uL), Autoclavable, KIT/1
