Single Channel Pipettors

<h2 dir="ltr">What Are Single-Channel Pipettors?</h2>
 A single-channel pipettor is the single most widely used liquid handling instrument in molecular biology, cell biology, and clinical research. It transfers precise volumes between 0.1 &micro;L and 5,000 &micro;L, one well or tube at a time, using an air-displacement piston mechanism. The piston creates a partial vacuum that aspirates liquid into a disposable tip; advancing the piston fully dispenses the liquid. A spring-loaded tip ejector releases the used tip without hand contact for contamination control. Manual models depend on finger force and offer simple, battery-free operation; electronic models add programmable aspiration/dispensing speeds, multi-dispense modes, and up to 5 custom pipetting programs.&nbsp; A set of four manual single-channel pipettors (P10, P20, P200, P1000) covers 95% of molecular biology liquid handling; add electronic models for high-throughput repetitive work.
&nbsp;
<h2 dir="ltr">What you will find:</h2>
&nbsp;
<ul>
<li dir="ltr" aria-level="1">
Adjustable volume single-channel pipettors for flexible workflows
</li>
<li dir="ltr" aria-level="1">
Fixed volume pipettors for repeatable dispensing tasks
</li>
<li dir="ltr" aria-level="1">
Mechanical pipettors for standard lab use
</li>
<li dir="ltr" aria-level="1">
Ultra-low volume micropipettors for precise &micro;L handling
</li>
<li dir="ltr" aria-level="1">
Wide-range pipettors covering &micro;L to mL volumes
</li>
<li dir="ltr" aria-level="1">
Autoclavable pipettors for sterile environments
</li>
<li dir="ltr" aria-level="1">
Lightweight ergonomic pipettors for long sessions
</li>
</ul>
<h2 dir="ltr"> How to Choose a Single-Channel Pipettor</h2>
 Volume Range: Build a Complete Bench Set A standard four-pipettor bench set covers P10 (1&ndash;10 &micro;L), P20 (2&ndash;20 &micro;L), P200 (20&ndash;200 &micro;L), and P1000 (100&ndash;1,000 &micro;L). For sub-microliter work (sequencing, single-cell), add a P2 (0.2&ndash;2 &micro;L). For large-volume dispensing (media prep, column loading), add a P5000 (1,000&ndash;5,000 &micro;L). Avoid selecting a volume range that places your target dispense below 20% of the maximum &mdash; accuracy degrades at the low end of any range. Manual vs Electronic Manual single-channel pipettors (Eppendorf Research Plus, Gilson PIPETMAN Classic, Rainin Pipet-Lite XLS+) are the standard for routine lab work: field-calibratable, autoclavable, and requiring no power source. Electronic single-channel pipettors (Eppendorf Research Pro, Rainin Pipet-Lite XLS+ Electronic) add: programmable aspiration/dispense speed (5 speeds), multi-dispense (repeat pipetting) mode, mix mode, dilution mode, and backlight LCD volume display. Electronic models reduce hand fatigue in workflows exceeding 200&ndash;300 tip changes per day. Tip Compatibility Three tip systems cover the market: standard conical (universal fit &mdash; fits Eppendorf Research Plus, Gilson PIPETMAN, Rainin non-LTS, Thermo, Sartorius/BioHit); Rainin LTS cylindrical (requires LTS-specific tips &mdash; lower force insertion); Eppendorf epT.I.P.S. proprietary (tightest fit for Eppendorf instruments). Select the tip system that matches your pipettor purchase and existing tip inventory before committing to a brand. Autoclavability and Chemical Resistance Manual pipettors from Eppendorf, Gilson, and Rainin have fully autoclavable lower sections (121&deg;C, 15 psi, 15 min). Electronic pipettors have autoclavable nose cones only &mdash; the electronic module cannot be autoclaved. Calibration and Service All single-channel pipettors are factory-calibrated per ISO 8655. Field recalibration tools are available for Eppendorf, Gilson, and Rainin to perform in-lab gravimetric verification without external service.
<h2 dir="ltr"> Specifications Context </h2>
 ISO 8655 Part 2 accuracy spec for a 200 &micro;L air-displacement pipettor: &plusmn;0.8 &micro;L systematic error, &le;0.3 &micro;L random error (Eppendorf Research Plus specification at 200 &micro;L). Most manual pipettors weigh 70&ndash;120 g; electronic models weigh 150&ndash;220 g. Operating temperature range: typically 15&ndash;40&deg;C. Eppendorf Research Plus, Gilson PIPETMAN Classic, and Rainin Pipet-Lite XLS+ LTS remain the three dominant single-channel pipettor platforms in North American research labs.&nbsp;
&nbsp;
Ready to find your new favorite lab tool? Don&rsquo;t just settle for any grip&mdash;find the one that fits your hand and your science. <a href="https://mbpinc.net/contact-us" style="color: #236fa1;">Reach out to the MBP team</a> today for a customized quote.

Flyer

User Manual

Diamond® APEX™ Single Channel Pipettors - Fixed Volume

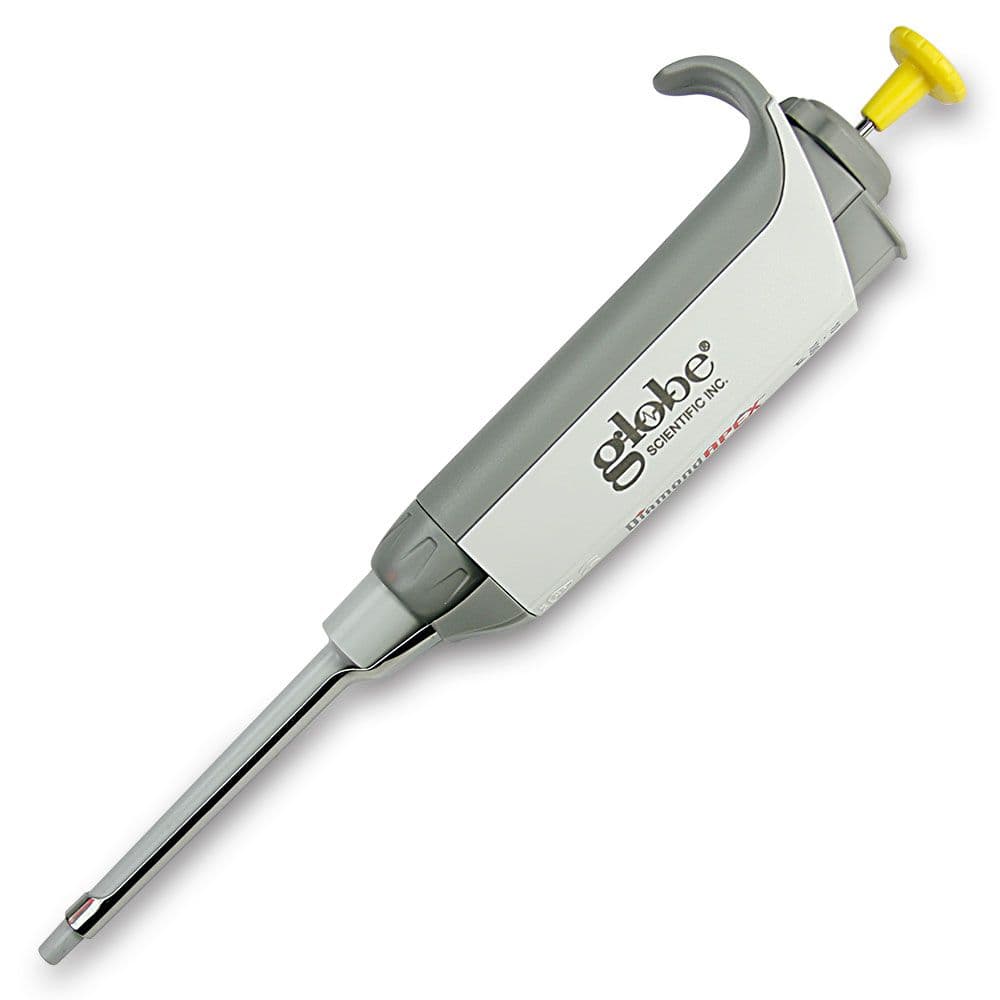

The Diamond APEX Fixed Volume Single Channel Pipettor (Globe Scientific 3352 series) features a magnetic-assisted piston for high accuracy at low plunger force, a PVDF tip cone, fully autoclavable UV-resistant construction, and ISO 17025-accredited calibration with a 3-year warranty. Available in volumes from 2.5 µL to 10,000 µL with color-coded plungers for at-a-glance volume identification. Contact MBP for specific volume pricing at customerservice@mbpinc.net.
