Name: Diamond® APEX™ 8 Channel Pipettors - Adjustable Volume
SKU: 3354
Availability: InStock

Multi-Channel Pipettors

<h2 dir="ltr">What Are Multi-Channel Pipettors?</h2>
 A multi-channel pipettor contains 8 or 12 piston-tip cone assemblies arranged in a single row at 9 mm centre-to-centre spacing &mdash; matching the well spacing of standard 96-well plates &mdash; allowing an operator to simultaneously dispense into an entire plate row (12-channel) or column (8-channel) with a single plunger depression. This reduces the time to fill a 96-well plate from ~96 individual dispenses to 12 (8-channel) or 8 (12-channel). For 384-well plates, 16-channel models or adjustable-spacing multichannel pipettors accommodate the 4.5 mm inter-well spacing. Multi-channel pipettors are the standard instrument for ELISA plate loading, serial dilution across 96-well plates, PCR master-mix dispensing, and cell-based assay setup. An 8-channel pipettor fills a 96-well plate in 12 strokes; a 12-channel pipettor fills it in 8 &mdash; choose based on whether your workflow is row-based or column-based.
&nbsp;
<h2 dir="ltr">What you will find:</h2>
&nbsp;
<ul>
<li dir="ltr" aria-level="1">
8-channel adjustable volume multi-channel pipettors
</li>
<li dir="ltr" aria-level="1">
12-channel high-throughput pipettors
</li>
<li dir="ltr" aria-level="1">
Mechanical multi-channel pipettors for routine use
</li>
<li dir="ltr" aria-level="1">
Autoclavable multi-channel pipettors
</li>
<li dir="ltr" aria-level="1">
Ergonomic lightweight pipettors for extended use
</li>
<li dir="ltr" aria-level="1">
Calibrated precision multi-channel pipettors
</li>
<li dir="ltr" aria-level="1">
Microplate-compatible pipettors for 96-well formats
</li>
</ul>
<h2 dir="ltr"> How to Choose a Multi-Channel Pipettor</h2>
 8-Channel vs 12-Channel 8-channel pipettors (8 rows) are used when working column-by-column across a 96-well plate &mdash; the standard for PCR setup, ELISA, and serial dilutions where samples run down columns. 12-channel pipettors (12 columns) are used when filling row-by-row, common for reagent dispensing from reservoirs across all 12 columns simultaneously. Both configurations dispense the same 96 wells per plate but in different orientations. Volume Range Common multi-channel volume ranges: 0.5&ndash;10 &micro;L (for low-volume PCR or sequencing), 5&ndash;50 &micro;L, 10&ndash;100 &micro;L, and 20&ndash;200 &micro;L (the most widely used range for ELISA and cell-based assays), and 30&ndash;300 &micro;L. Select the range that places your most frequent dispense volume at 50&ndash;80% of the maximum for best accuracy. Manual vs Electronic Manual multi-channel pipettors (Eppendorf Research Plus Multichannel, Gilson PIPETMAN Multichannel) require no battery and are field-calibratable. Electronic multi-channel pipettors (Eppendorf Xplorer Multichannel, Rainin Pipet-Lite L8 LTS Electronic) add programmable speed, multi-dispense mode, and reduced plunger force &mdash; particularly valuable for high-throughput plate workflows. Tip Compatibility Multi-channel pipettors use the same tip collar geometry as single-channel models: standard conical for Eppendorf Research Plus and Gilson PIPETMAN (universal-fit 8-strip tips); LTS cylindrical for Rainin L8/L12 LTS (LTS 8-strip tips). Confirm tip format matches the multichannel instrument before ordering tip strips. Adjustable Tip Spacing Eppendorf Research Plus Move It and equivalent adjustable-spacing models allow spacing between channels to be set to 4, 6, 8, or 12 mm &mdash; enabling use with 24-well, 48-well, and 384-well plate formats without a dedicated instrument for each format.
<h2 dir="ltr"> Specifications Context</h2>
 Multi-channel pipettors are subject to ISO 8655 Part 6 (multichannel piston-operated volumetric instruments). Standard accuracy specification for a 200 &micro;L 8-channel model is &plusmn;1.5 &micro;L systematic error; inter-channel CV should be &le;1.0% to ensure well-to-well reproducibility in plate-based assays. Autoclavable lower sections are standard on Eppendorf Research Plus and Gilson PIPETMAN multichannel models. Eppendorf Research Plus Multichannel and Rainin Pipet-Lite L8/L12 LTS remain the dominant manual multichannel platforms in North American research labs.&nbsp;
&nbsp;
Tired of the one-well-at-a-time grind? Let&rsquo;s speed things up.<a href="https://mbpinc.net/contact-us" style="color: #236fa1;">&nbsp;Reach out to the MBP team</a> today for a quote on the multi-channel system that fits your lab&rsquo;s pace.

Flyer

User Manual

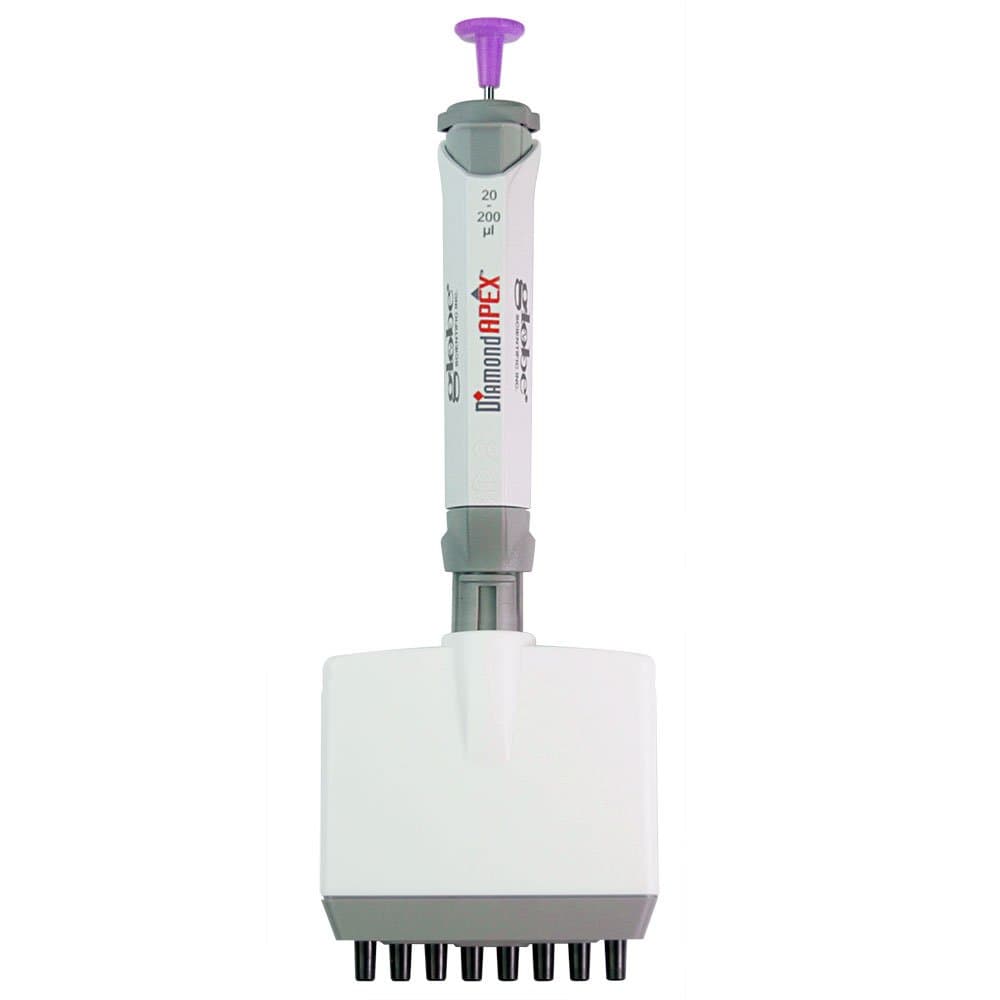

Diamond® APEX™ 8 Channel Pipettors - Adjustable Volume

3354 by Globe Scientific is the Diamond® APEX™ 8-channel adjustable-volume pipettor in six ranges from 0.5µL to 300µL. Each channel is individually calibrated in an ISO 17025-accredited facility; a magnet-assisted piston delivers high accuracy with low plunger force. The removable manifold autoclaves at 121°C and rotates 360°. Color-coded plungers and a volume lock prevent mis-setting. Backed by a 3-year warranty.

Manufacture

Pipette, Diamond Apex, Fully Autoclavable, 8-Channel, Adjustable Volume, 0.5 - 10uL, Red

Pipette, Diamond Apex, Fully Autoclavable, 8-Channel, Adjustable Volume, 2 - 20uL, Yellow

Pipette, Diamond Apex, Fully Autoclavable, 8-Channel, Adjustable Volume, 5 - 50uL, Yellow

Pipette, Diamond Apex, Fully Autoclavable, 8-Channel, Adjustable Volume, 10 - 100uL, Blue

Pipette, Diamond Apex, Fully Autoclavable, 8-Channel, Adjustable Volume, 20 - 200uL, Lavender

Pipette, Diamond Apex, Fully Autoclavable, 8-Channel, Adjustable Volume, 30 - 300uL, Orange
