Name: Benchmark Scientific Overhead Stirrers
SKU: IPS2050-20
Availability: InStock

Overhead Stirrers

<h2>What Are Overhead Stirrers?</h2>
<p>&nbsp;</p>
<p>An overhead stirrer is a laboratory mixing instrument that mounts a motor unit above the sample vessel on a stand or clamp, driving a rotating shaft and impeller that is immersed directly into the liquid. Unlike magnetic stirrers, which rely on a rotating magnetic field to spin a small bar inside the vessel, overhead stirrers use direct mechanical drive: the motor connects to the impeller shaft through a chuck or collet, allowing the motor to deliver consistent torque to the sample regardless of viscosity changes during mixing. This makes overhead stirrers the correct choice for applications where a magnetic stir bar would stall or decouple: polymerization reactions, emulsion preparation, gel dispersion, cell suspension in bioreactors, slurry processing, and large-volume buffer and media preparation. Digital overhead stirrers with brushless DC motors, torque display, programmable speed ramps, reversible rotation, and overload protection are standard research-grade configurations covering volumes to 200 L. Switch from a magnetic stirrer to an overhead stirrer when the sample volume exceeds 2 L, viscosity exceeds roughly 2,000 mPas (similar to glycerol), or the stir bar stalls during the mixing process.</p>
<p>&nbsp;</p>
<h2 dir="ltr">What You Will Find:</h2>
<div class="" data-turn-id-container="285cb5a4-0dac-4f8b-a570-84aea5821575" data-is-intersecting="true">&nbsp;</div>
<div class="" data-turn-id-container="request-WEB:3e5641be-0405-48bf-955e-e718573469fb-4" data-is-intersecting="true">
<section class="text-token-text-primary w-full focus:outline-none has-data-writing-block:pointer-events-none [&amp;:has([data-writing-block])&gt;*]:pointer-events-auto R6Vx5W_threadScrollVars scroll-mb-[calc(var(--scroll-root-safe-area-inset-bottom,0px)+var(--thread-response-height))] scroll-mt-[calc(var(--header-height)+min(200px,max(70px,20svh)))]" dir="auto" data-turn-id="request-WEB:3e5641be-0405-48bf-955e-e718573469fb-4" data-turn-id-container="request-WEB:3e5641be-0405-48bf-955e-e718573469fb-4" data-testid="conversation-turn-10" data-turn="assistant">
<div class="text-base my-auto mx-auto pb-10 [--thread-content-margin:var(--thread-content-margin-xs,calc(var(--spacing)*4))] @w-sm/main:[--thread-content-margin:var(--thread-content-margin-sm,calc(var(--spacing)*6))] @w-lg/main:[--thread-content-margin:var(--thread-content-margin-lg,calc(var(--spacing)*16))] px-(--thread-content-margin)">
<div class="[--thread-content-max-width:40rem] @w-lg/main:[--thread-content-max-width:48rem] mx-auto max-w-(--thread-content-max-width) flex-1 group/turn-messages focus-visible:outline-hidden relative flex w-full min-w-0 flex-col agent-turn" data-conversation-screenshot-content="">
<div class="flex max-w-full flex-col gap-4 grow">
<div class="min-h-8 text-message relative flex w-full flex-col items-end gap-2 text-start break-words whitespace-normal outline-none keyboard-focused:focus-ring [.text-message+&amp;]:mt-1" dir="auto" tabindex="0" data-message-author-role="assistant" data-message-id="36dcb2b0-e8ee-474e-a18c-91cce46497c4" data-message-model-slug="gpt-5-5" data-turn-start-message="true">
<div class="flex w-full flex-col gap-1 empty:hidden">
<div class="markdown prose dark:prose-invert wrap-break-word w-full light markdown-new-styling">
<ul>
<li>Digital overhead stirrers for laboratory mixing and sample preparation applications.</li>
<li>Stainless steel propellers available in one-line, four-arm, paddle with flat holes, and centrifugal impeller designs.</li>
<li>PTFE (Teflon) propellers offered in one-line, four-arm, paddle with flat holes, and centrifugal impeller configurations.</li>
<li>Optional interchangeable propellers allow optimization of mixing performance for different sample types and viscosities.</li>
<li><a href="https://mbpinc.net/equipments/temperature-control-equipment/hotplate-and-stirrers/overhead-stirrers/overhead-stirrer-accessories"><strong>Overhead stirrer accessories</strong></a> support routine laboratory stirring, blending, and homogenization tasks.</li>
</ul>
</div>
</div>
</div>
</div>
</div>
</div>
</section>
</div>
<p>&nbsp;</p>
<h2>How to Choose an Overhead Stirrer</h2>
<p>&nbsp;</p>
<p><strong>Torque capacity</strong></p>
<p>Torque (measured in N &middot; cm) is the most important selection criterion for overhead stirrers. The motor must maintain its setpoint rpm against the resistance of the sample throughout the mixing process, including at points of highest viscosity (e.g., during emulsion formation or cooling of a polymer melt). Common torque classes are 20 Ncm, 40 Ncm, and 75 Ncm for lab-scale models. High-viscosity applications (pastes, gels above 10,000 mPas) require 40 Ncm or more. Models with a real-time torque display let the operator monitor process state during mixing; torque reaching a setpoint can signal batch completion.</p>
<p><strong>Speed range</strong></p>
<p>Low-speed overhead stirrers (12 to 300 rpm) are used for gentle laminar flow mixing and tangential agitation of high-viscosity materials to prevent air entrainment. Mid-range models (60 to 2,000 rpm) handle general stirring through turbulent flow. High-speed models (up to 6,000 rpm) are used for homogenization, emulsification, and dispersion at small to medium scales. Match the speed range to the flow regime required by the application.</p>
<p><strong>Volume capacity</strong></p>
<p>Overhead stirrers specify maximum volume based on water viscosity at the stated rpm. Actual volume limits for viscous samples are lower. Benchtop models cover 2 L to 15 L; mid-range floor-stand models reach 80 L; large-scale process-development stirrers handle up to 200 L. Confirm that the impeller diameter is appropriate for the vessel diameter in use.</p>
<p><strong>Impeller type</strong></p>
<p>Impeller geometry determines the mixing regime: propeller-type impellers generate axial flow for general liquid blending; paddle and anchor impellers provide tangential flow for high-viscosity materials; dispersing disc impellers create radial high-shear flow for emulsification and dispersion; and ribbon impellers handle very high-viscosity pastes and thickening batches. Impeller shafts and heads are commonly made from stainless steel or PTFE for chemical resistance.</p>
<p><strong>Digital vs. analog control</strong></p>
<p>Digital overhead stirrers display speed in rpm, maintain setpoint through closed-loop motor control, and include overload protection, reversible rotation, and data logging capability. Analog models use a dial for speed setting and provide no readout. For regulated or reproducible workflows, digital control is strongly recommended.</p>
<p>&nbsp;</p>
<h2>Specifications Context</h2>
<p>&nbsp;</p>
<p>Motor type affects long-term reliability: brushless DC (BLDC) motors require no brush replacement, operate quietly, and maintain consistent torque at low speed, which is important for laminar flow applications. Overload protection (automatic speed reduction or shutdown when torque exceeds a setpoint) protects both the motor and the sample from damage during unexpected viscosity increases. Shaft and impeller material should be confirmed for chemical compatibility: stainless steel (grades 304 or 316) suits aqueous and mild organic media; PTFE shafts are required for corrosive acids, bases, and halogenated solvents. Support stands should be rigid enough to prevent shaft wobble at speed; confirm the stand's load rating and reach for the vessel configuration in use.&nbsp;</p>
<p dir="ltr">&nbsp;</p>
<p dir="ltr">Ready to power through your toughest mixing projects? Take a look at our overhead stirrer range and <strong><a href="https://mbpinc.net/contact-us">reach out to the MBP team</a> </strong>for a friendly quote today.</p>

Product Literature

Optional propeller, stainless steel paddle with flat holes

Optional propeller, stainless steel centrifugal impeller

Optional propeller, stainless steel one line

Optional propeller, Teflon paddle with flat holes

Optional propeller, Teflon centrifugal impeller

Included propeller, stainless steel 4 arm

Benchmark Scientific Overhead Stirrers

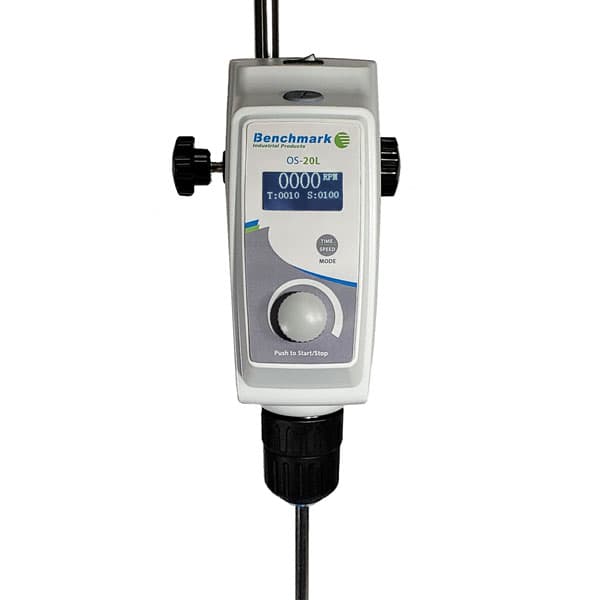

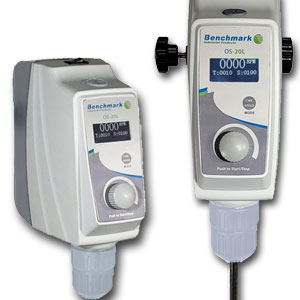

<p>The Benchmark Scientific Overhead Stirrer Series by Benchmark Scientific is the OS-20L digital overhead stirrer with a 20-litre mixing capacity, 30–2,200 rpm speed range, 40 Ncm maximum torque, and a DC brushless motor rated for up to 10,000 mPas viscosity. The tool-free 0.5–10 mm feed-through chuck, LCD display, universal 100–240V power input, and IP42 protection make the OS-20L a practical overhead stirrer for large-volume buffer preparation, viscous polymer blending, and bioreactor vessel agitation in research and pilot-scale labs. Available models: IPS2050-20, IPS2050-20-E, IPS2050-40, IPS2050-40-E.</p>

Model

Mixing Capacity (H20)

Maximum Torque

Input Power

Output Power

Net Weight (Mixer)
