Name: Agilent IDP-3 2.1 cfm Oil-Free Compact Dry Scroll Pump - 110V
SKU: IDP3B01
Price: 3779.10 USD
Availability: InStock

Agilent Pumps

<h2>What are Agilent vacuum pumps?</h2>
&nbsp;
Agilent Technologies vacuum pump portfolio originates from Varian Vacuum Products and includes dry scroll pumps (IDP series) and oil-sealed rotary vane pumps. The IDP series provides oil-free vacuum for analytical instruments, while rotary vane pumps provide higher-throughput roughing vacuum where oil use is acceptable.
&nbsp;
<h2 data-start="403" data-end="428">What you will find:</h2>
&nbsp;
Agilent IDP-7 5.4 cfm Oil-Free Compact Dry Scroll Pump &ndash; Compact oil-free pump for laboratory vacuum applications
Agilent IDP-3 2.1 cfm Oil-Free Compact Dry Scroll Pump - 110V &ndash; Small footprint pump for clean vacuum operation
Agilent IDP-15 9 cfm Oil-Free Compact Dry Scroll Pump &ndash; High-capacity dry scroll pump for demanding workflows
Agilent TwisTorr 74 FS Turbo Pump Package &ndash; Turbo pumping system for high-vacuum applications
&nbsp;
<h2>How to choose an Agilent vacuum pump</h2>
&nbsp;
Choose IDP dry scroll pumps for oil-free instrument backing
The Agilent IDP series (IDP-3, IDP-7, IDP-15) provides oil-free dry scroll vacuum for backing turbomolecular pumps in mass spectrometers, electron microscopes, and other analytical instruments.
Match model to pumping speed
IDP model numbers correspond to pumping speed: IDP-3 for small instruments, IDP-7 for general use, and IDP-15 for higher gas load applications.
Use rotary vane pumps for higher throughput
Varian SD and DS rotary vane pumps provide oil-sealed roughing vacuum with higher throughput than dry scroll pumps at similar cost.
Check instrument compatibility
Many analytical instruments specify approved vacuum pump models. Agilent IDP pumps are commonly listed for LC-MS and GC-MS systems, so compatibility should be confirmed before selection.
Consider maintenance requirements

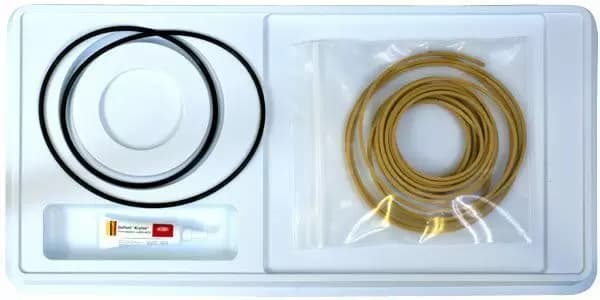

IDP scroll pumps use replaceable tip seal kits with service intervals typically between 6000&ndash;15,000 hours depending on operating conditions.
&nbsp;
<h2>Specifications context</h2>
&nbsp;
Agilent IDP dry scroll pumps use two interlocking scrolls &mdash; one fixed and one orbiting &mdash; to compress gas without oil, producing clean vacuum suitable for contamination-sensitive analytical instruments.
As of 2026, IDP-7 and IDP-15 remain widely used as standard roughing pumps for analytical platforms such as mass spectrometry systems.
<a href="https://mbpinc.net/equipments/pumps/vaccum-pumps/agilent-pumps">Contact the MBP team</a> today to learn about Agilent pump solutions for your laboratory needs.

Agilent IDP-3 2.1 cfm scroll pump (IDP3B01)

Agilent North America 15A/125V power cord (656458203)

Documentation Kit (Contained In Plastic Bag)

Agilent IDP-3 2.1 cfm Oil-Free Compact Dry Scroll Pump - 110V

Introduction to Agilent IDP-3 Pump

IDP-3 Pump Operation Guide

IDP-3 Maintenance Instructions

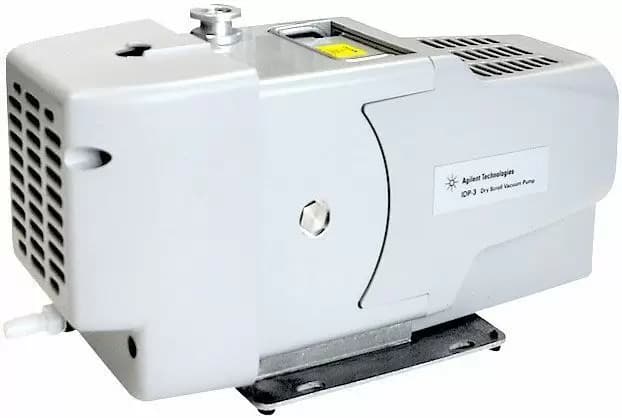

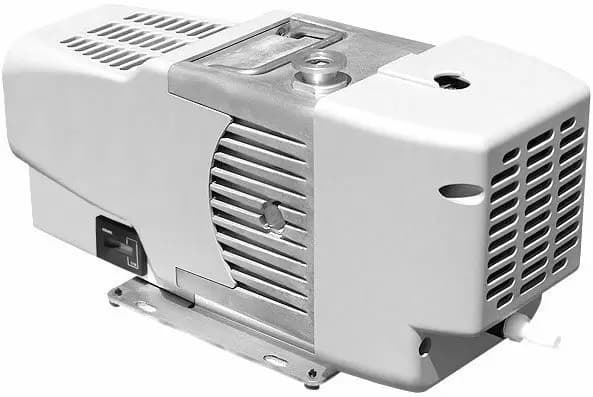

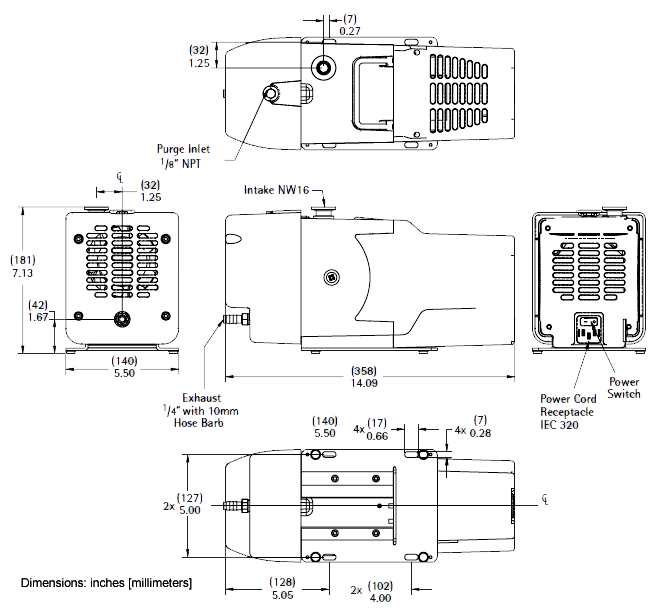

The IDP3B01 by Agilent Technologies is the 110 V model of the IDP-3 oil-free dry scroll vacuum pump, delivering 2.1 CFM (3.6 m³/h) at a 3.3 × 10⁻¹ mbar ultimate pressure via a NW16 inlet flange. At 9.5 kg with a 181 × 140 × 358 mm footprint and 55 dB(A) noise level, it integrates into mass spectrometry, rotary evaporation, and lyophilization setups without oil maintenance.

Agilent IDP-3 2.1 cfm Oil-Free Compact Dry Scroll Pump - 110V

SKU : IDP3B01
