Name: Agilent IDP-15 9 cfm Oil-Free Compact Dry Scroll Pump
SKU: IDP-15-X3815-64000
Price: 8689.65 USD
Availability: InStock

Agilent Pumps

<h2>What are Agilent vacuum pumps?</h2>
&nbsp;
Agilent Technologies vacuum pump portfolio originates from Varian Vacuum Products and includes dry scroll pumps (IDP series) and oil-sealed rotary vane pumps. The IDP series provides oil-free vacuum for analytical instruments, while rotary vane pumps provide higher-throughput roughing vacuum where oil use is acceptable.
&nbsp;
<h2 data-start="403" data-end="428">What you will find:</h2>
&nbsp;
Agilent IDP-7 5.4 cfm Oil-Free Compact Dry Scroll Pump &ndash; Compact oil-free pump for laboratory vacuum applications
Agilent IDP-3 2.1 cfm Oil-Free Compact Dry Scroll Pump - 110V &ndash; Small footprint pump for clean vacuum operation
Agilent IDP-15 9 cfm Oil-Free Compact Dry Scroll Pump &ndash; High-capacity dry scroll pump for demanding workflows
Agilent TwisTorr 74 FS Turbo Pump Package &ndash; Turbo pumping system for high-vacuum applications
&nbsp;
<h2>How to choose an Agilent vacuum pump</h2>
&nbsp;
Choose IDP dry scroll pumps for oil-free instrument backing
The Agilent IDP series (IDP-3, IDP-7, IDP-15) provides oil-free dry scroll vacuum for backing turbomolecular pumps in mass spectrometers, electron microscopes, and other analytical instruments.
Match model to pumping speed
IDP model numbers correspond to pumping speed: IDP-3 for small instruments, IDP-7 for general use, and IDP-15 for higher gas load applications.
Use rotary vane pumps for higher throughput
Varian SD and DS rotary vane pumps provide oil-sealed roughing vacuum with higher throughput than dry scroll pumps at similar cost.
Check instrument compatibility
Many analytical instruments specify approved vacuum pump models. Agilent IDP pumps are commonly listed for LC-MS and GC-MS systems, so compatibility should be confirmed before selection.
Consider maintenance requirements
IDP scroll pumps use replaceable tip seal kits with service intervals typically between 6000&ndash;15,000 hours depending on operating conditions.
&nbsp;
<h2>Specifications context</h2>
&nbsp;
Agilent IDP dry scroll pumps use two interlocking scrolls &mdash; one fixed and one orbiting &mdash; to compress gas without oil, producing clean vacuum suitable for contamination-sensitive analytical instruments.
As of 2026, IDP-7 and IDP-15 remain widely used as standard roughing pumps for analytical platforms such as mass spectrometry systems.
<a href="https://mbpinc.net/equipments/pumps/vaccum-pumps/agilent-pumps">Contact the MBP team</a> today to learn about Agilent pump solutions for your laboratory needs.

Agilent IDP-15 9 cfm scroll pump (X3815-64000)

KF25 flexible stainless steel vacuum bellow (3.3 ft)

Agilent North America 15A/125V power cord (656458203)

Agilent IDP Dry Scroll Pump - Inlet Isolation Valve

Dry Scroll Pumps Family: Agilent IDP-series

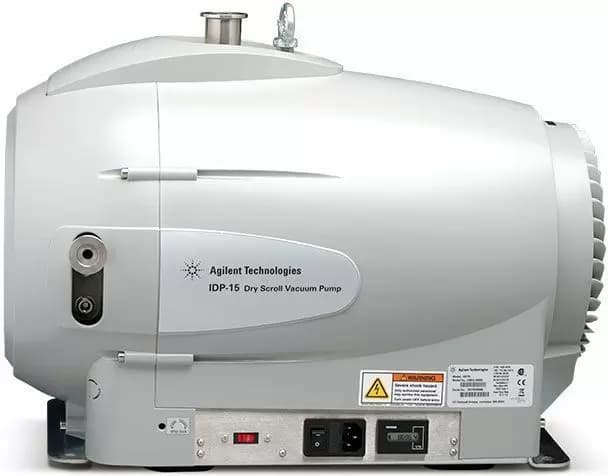

Agilent IDP-15 9 cfm Oil-Free Compact Dry Scroll Pump

IDP-15-X3815-64000 by Agilent Technologies is the IDP-15 oil-free dry scroll pump with 9.1 cfm (15.4 m³/hr) pumping speed at 60 Hz, ultimate vacuum of 1×10⁻² Torr, NW25 inlet / NW16 outlet, 50 dB(A) noise, and universal 100–230V operation. Hermetic single-sided scroll design eliminates oil vapor backstreaming — ideal for mass spectrometers, electron microscopes, and analytical instrument evacuation.

Agilent IDP-15 9 cfm Oil-Free Compact Dry Scroll Pump

SKU : IDP-15-X3815-64000
