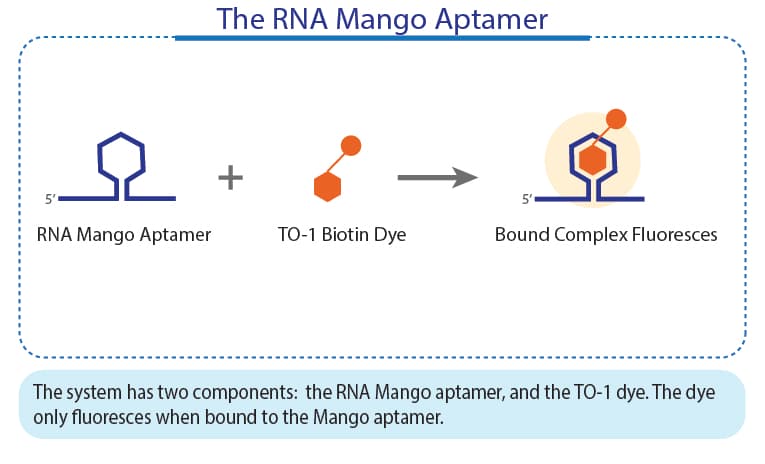

| Description | RNA Mango technology is based on the specific binding of the RNA Mango Aptamer and a Thizole Orange (TO) bi-functional dye. The main features of this technology is the tight binding between the dye and aptamer (KD ≈ 3nM) , and the strong ~1000X enhancement of the dye’s fluorescence when bound to the Mango apatmer (Fluorescent enhancement FE=1,100). The TO dye has a number of other desirable properties including:
TO1-biotin is the standard variety of TO dye for RNA Mango experiments; other dye variants will also be available soon. Watch RNA Mango in Action Transcription reaction were carried out in 300 µL volumes using T7 RNA polymerase (400 U, 50U/µL, applied biological materials), 0.5 µM TO1-3PEG-Biotin (applied biological materials), in 8 mM GTP, 5 mM CTP and ATP, 2 mM UTP, 40 mM TRIS buffer pH 7.9, 2.5 mM spermidine, 26 mM MgCl2, 20 mM KCl, Pyrophosphatase (0.5 U, 0.1 U/µL, ThermoFisher Scientific), and 0.01% Triton X-100. To each sample, either water (Negative), 0.33 µM DNA template (Mango Transcription), or 500 nM final Mango III A10U RNA (Positive) was added. Samples were visualized in a blue light box, movie is played back at 30X speed.
| |
|---|---|---|
| SKU | G956 | |
| Unit quantity | 0.5 mg/ml (500 µl) | |
| Storage Condition | Stored at -20°C and protect from light. |
10
- Shi J, Gao X, Tian T, et al. Structural basis of Q-dependent transcription antitermination. Nat Commun. 2019;10(1):2925. Published 2019 Jul 2. doi:10.1038/s41467-019-10958-8.
- Trachman, R., & Ferré-D’Amaré, A. (2019). Tracking RNA with light: Selection, structure, and design of fluorescence turn-on RNA aptamers. Quarterly Reviews of Biophysics, 52, E8. doi:10.1017/S0033583519000064.
- Alexis Autour, Sunny C. Y. Jeng, Adam D. Cawte, Amir Abdolahzadeh, Angela Galli, Shanker S. S. Panchapakesan, David Rueda, Michael Ryckelynck & Peter J. Unrau “Fluorogenic RNA Mango aptamers for imaging small non-coding RNAs in mammalian cells” Nature Communications. 2018 Feb;23(9):656. DOI:Â 10.1038/s41467-018-02993-8.
- Panchapakesan SSS, Ferguson ML, Hayden EJ, Chen X, Hoskins AA, Unrau PJ. et al. “Ribonucleoprotein purification and characterization using RNA Mango.” RNA. 2017 Oct;23(10):1592-1599. DOI: 10.1261/rna.062166.117.
- Trachman RJ 3rd, Demeshkina NA, Lau MWL, Panchapakesan SSS, Jeng SCY, Unrau PJ, Ferré-D’Amaré AR. et al. “Structural basis for high-affinity fluorophore binding and activation by RNA Mango.” Nat Chem Biol. 2017 Jul;13(7):807-813. DOI: 10.1038/nchembio.2392.
- Cawte, Adam. et al. “Live Cell Imaging of Genomic Loci using Fluorescent RNA Aptamers.” Biophysical Journal. 2017 Feb, Volume 112,Issue 3,69a. DOI:Â 10.1016/j.bpj.2016.11.416.
- Jeng SC, Chan HH, Booy EP, McKenna SA, Unrau PJ. et al. “Fluorophore ligand binding and complex stabilization of the RNA Mango and RNA Spinach aptamers.” RNA. 2016 Dec;22(12):1884-1892. Epub 2016 Oct 24. PubMed :Â 27777365.
- Ouellet J. et al. “RNA Fluorescence with Light-Up Aptamers.” Front Chem. 2016 Jun 28;4:29. DOI: 10.3389/fchem.2016.00029. eCollection 2016. Review. PubMed :Â 27446908.
- Panchapakesan SS, Jeng SC, Unrau PJ. et al. “RNA complex purification using high-affinity fluorescent RNA aptamer tags.” Ann N Y Acad Sci. 2015 Apr;1341:149-55. DOI:Â 10.1111/nyas.12663. Epub 2015 Jan 13.
- Dolgosheina EV, Jeng SC, Panchapakesan SS, Cojocaru R, Chen PS, Wilson PD, Hawkins N, Wiggins PA, Unrau PJ. et al. “RNA mango aptamer-fluorophore: a bright, high-affinity complex for RNA labeling and tracking.” ACS Chem Biol. 2014 Oct 17;9(10):2412-20. DOI:Â 10.1021/cb500499x. Epub 2014 Aug 21.
