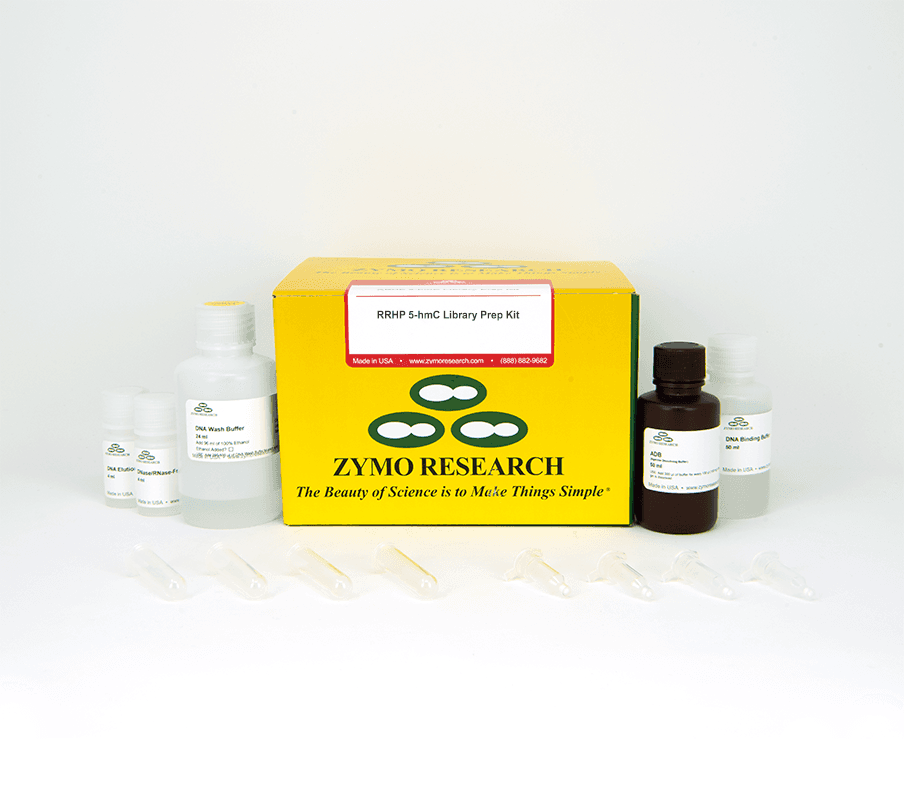

The D545 Zymo RRHP 5-hmC Library Prep Kit is an all-inclusive solution for analysis of genome-wide 5-hydroxymethylcytosine (5-hmC) positions at single-base resolution. The Reduced Representation Hydroxymethylation Profiling (RRHP) method is based on blocking MspI digestion by glucosylating 5-hmC within MspI recognition sites. Fragments lacking glucosylated 5-hmC at the adapter-ligation junction will be cleaved and not amplified by PCR. Therefore, only fragments containing 5-hmC will be successfully amplified and analyzed by Next-Generation Sequencing. Fragments with higher 5-hmC levels will be correlated with higher frequency of sequencing reads. RRHP bypasses the need for bisulfite conversion, which allows for DNA inputs as low as 100 ng, lower sequencing depth, and straight-forward bioinformatics processing.
|Equipment Required||Microcentrifuge, thermocycler with heated lid, and gel electrophoresis or other equipment for DNA visualization|
|Input||100 ng – 1 µg|
|Sample Source||High quality, intact genomic DNA free of enzymatic inhibitors.|
|Sequencing Compatibility||Any Illumina sequencing platforms|
Q1: Can RRHP be used for region specific detection of 5-hmC?
RRHP is designed as a genome-wide 5hmC profiling method, meaning 5hmC can be analyzed across the whole genome. Your region of interest may or may not be covered depending on (1) whether your region falls within the MspI digested fragments and (2) whether your regions contain 5hmC. For region specific analysis, we offer the Quest 5hmC Detection Kit (D5410), which is a restriction-enzyme qPCR method that can target your desired regions.
Q2: Why do I see my negative control appear after library amplification?
-Make sure you are using the recommended DNA input based on your sample type. -The glucosylation reaction should be carried out for a minimum of 2 hours, and, for the final MspI digestion, it is best to let it digest overnight (i.e. > 8 hours).
Q3: Are the index primers used in the RRHP 5-hmC Library Prep Kit (D5451) the same as in the Pico Methyl-Seq Library Kit (D5455)?
Yes, the index primers provided in both kits are the same. Both kits use the primer sequences off the Illumina TruSeq Small RNA Library Prep Kits.
Q4: How should I trim and align the sequencing data?
Any standard trimming and alignment program are suitable. The default quality trimming parameters for Illumina TruSeq adapters can be used. After reads are aligned to the genome of interest, reads containing the 5’-CCGG tag can be counted to determine relative 5hmC levels.
Q5: What instruments are the libraries compatible with and what sequencing parameters should I use?
RRHP libraries are compatible with any Illumina instruments, and they can be sequenced using the default settings. Usually, 50 base single-end reads are sufficient for alignment and analysis, as RRHP rely only on reads that begin with the “CCGG” tags, which only appears during Read 1. However, paired-end reads can help improve the mapping specificity, but may require some trimming for shorter inserts. Since RRHP has low-diversity during the first five bases, we recommend spiking-in a minimum of 10% PhiX to increase the diversity and improve sequencing quality.
Q6: What are some tips to ensure optimal library yield?
RRHP is a positive-display method, so the amount of amplification is related to the level of 5-hmC present in your sample. If you are processing samples that have very low 5hmC% (e.g. spleen), there is less template available to amplify. Here are some guidelines and considerations for ensuring optimal library yield: 1. Increase the number of amplification cycles by increments of 2. 2. For samples with low 5hmC%, we recommend using a starting input of 500 ng. 3. Be sure that you are using high-quality, intact genomic DNA from the start. 4. Check that genomic DNA has been accurately quantified (no RNA contamination). 5. Ensure that the wash buffer has the appropriate amount of ethanol added. 6. Ensure that the agarose gel has dissolved completely before proceeding to purification.
Q7: What is the concentration of the supplied index primers?
The index primers provided in the kit contain the forward and reverse primers at 10 µM each.
Q8: Are index primers provided in other company’s library preparation kits compatible with the Zymo adapters?
Any system that utilizes the TruSeq LT adapters is compatible with RRHP library preparation kit. The full sequences of Illumina TruSeq adapters and indices are available on Illumina’s website.
Q9: I need additional index primers. Can I purchase or synthesize them?
Additional oligos with different index sequences can be synthesized if >6 sample multiplexing is required. The reverse complement of the published Illumina sequence should be ordered for the final library amplification.
Q10: Can beads be used to perform the size-selection instead of an agarose gel (section IV)?
Yes, beads are suitable; anything lower than 100 bp should be removed to prevent adapter dimers in the final library product.
Q11: Can the final MspI digestion step be increased?
For best results, the MspI can be left to digest overnight (8 hours).
Q12: Is the Glucosylation reaction (step 6) complete after 2 hours?
The reaction has been shown to be complete after a 2 h incubation, but longer incubation does not affect the library preparation.
Q13: Should MspI be heat-inactivated after initial digestion?
It is not necessary to inactivate MspI as it does not have star activity.
Q14: What is the optimal DNA input amount?
It is highly dependent on your sample type and whether it has an overall high 5-hmC level. The minimum DNA input for neuronal DNA is 100 ng and 500 ng for non-neuronal DNA.
Q15: Can both methylation and hydroxymethylation be detected using RRHP?
The RRHP library preparation kit only allows for 5-hmC analysis. However, the methodology can be adapted to look at methylation, if desired. Please contact Zymo Research Technical Support and we can provide additional guidance if you would like to look at 5-mC as well.
Q16: Is RRHP a quantitative method? How does it differ from TAB-seq and oxBS-seq, which also looks at 5hmC?
RRHP is a semi-quantitative method as the level of 5hmC is deduced based on the number of sequencing reads a particular CCGG site receives (i.e. higher reads are correlated with higher 5hmC level). TAB-seq and oxBS-seq are quantitative methods in which you will determine the 5hmC%. However, these methods rely on bisulfite conversion and require higher sequencing depth. OxBS-seq requires double the amount of sequencing as it requires subtractive sequencing to determine the 5hmC%.
Q17: Can a different polymerase than the 2x QuestTaq Master Mix be used?
Yes, but we cannot guarantee the same performance. Some polymerases show bias in amplifying unmodified over modified DNA (addition of glucose to the 5-hmC site creates a bulky group that can stall certain polymerases).
