MF30 Exhaust Oil Mist Filter for Edwards E2M28 Vacuum Pumps

Mist filters capture oil mist from the outlet of pumps, which would otherwise be ejected into the atmosphere. This may happen when you use gas ballast or when you pump high gas throughputs. You can also return oil trapped in the mist filter back to the pump, although you must ensure that the process gases will not contaminate the pump or pump oil.

The MF30 is suitable for E2M28 pumps. It is very efficient at 99.85% DOP test. You can monitor the oil level through the sight-glass provided.

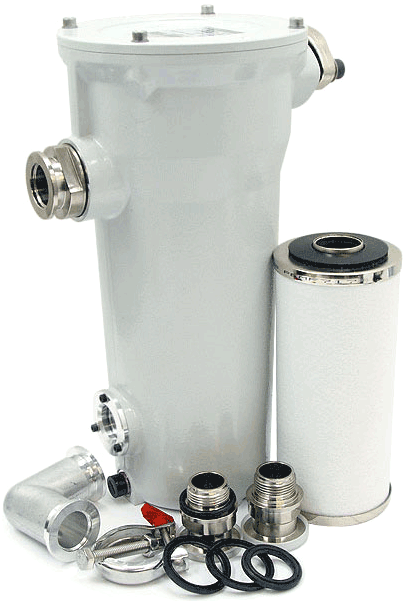

Supplied with NW25 elbow, NW25 clamp, NW25 to 3/4 inch BSP adapter and NW25 Co-Seal.

Features and Benefits

• Protection from oil mist emissions as required by COSHH and health and safety regulations
• Use of optional oil return kits results in reduced oil level maintenance and savings in pump oil
• If the oil element becomes blocked, an integral pressure relief valve opens

One replacement oil mist element for Edwards MF30 vacuum pump exhaust oil mist filters. (filter element only, MF30 filter and accessories NOT included)

The MF30 mist filter has a cast aluminium body. The filter element is made from epoxy impregnated glassfibre, stainless steel and nickel-plated mild steel. The exhaust gases from the pump enter the inlet of the filter and then pass down through the centre of the filter element.

The filter element separates and traps the oil mist and the trapped oil drains into the base of the mist filter. The oil-free exhaust gases are then discharged through the mist filter outlet. The body of the mist filter has a sight-glass so that you can see the level of oil trapped in the mist filter. The body also has a drain-plug so that you can drain the trapped oil from the filter.

Designed to be used with the following Edwards rotary vane vacuum pumps:

• E2M28
