AT09e
Overview

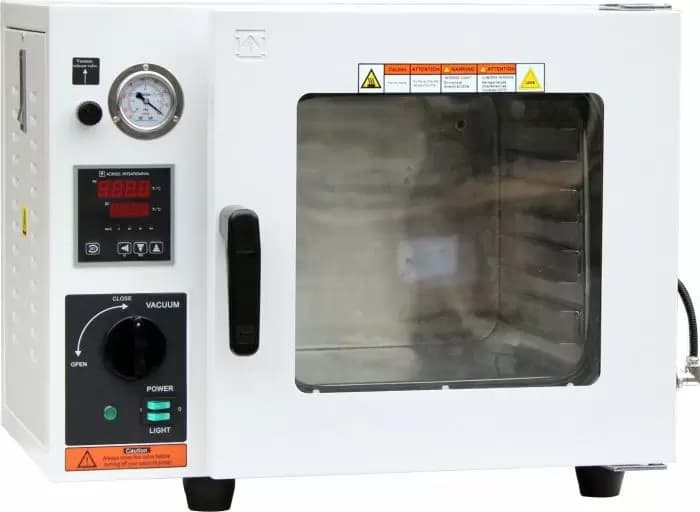

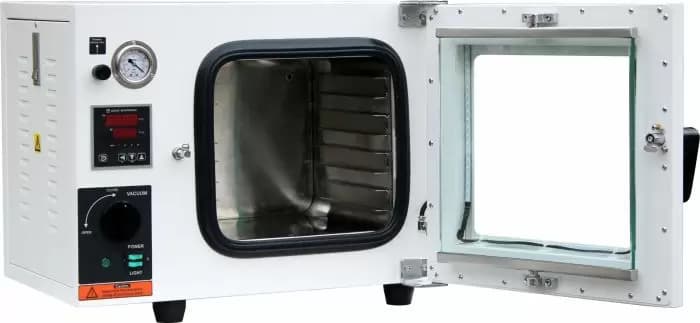

AT09e series digital desktop vacuum ovens feature a 0.9 cubic foot easy-to-clean stainless steel chamber with a large dual-layer tempered glass safety window and small footprint. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber.
Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities.
Attention: Before initial use, run oven at 200C/400F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process.
Features
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- 3rd gen LCD low proportional gain temperature controllers keep your oven temperature accurate.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- Dual layer observation window with 1/2″ tempered safety glass.
- 3″ thermal insulation prevents heat loss and minimizes the enclosure’s outer surface temperature.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes
Manufactured in accordance with
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
AT19e
Overview
AT19e series digital desktop vacuum ovens feature a 1.9 cubic foot easy-to-clean stainless steel chamber with a large dual-layer tempered glass safety window and small footprint. These ovens can greatly reduce drying time by maintaining a consistent vacuum level within the chamber.
Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is 100% quality controlled in New Jersey or Nevada before leaving our facilities.
Attention: Before initial use, run oven at 150C/302F without vacuum for 15 minutes to burn off any residue that may have been introduced during the manufacturing process.
Features
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- Adjustable gas back fill capability with needle valve and vent port.
- 3rd gen LCD low proportional gain temperature controllers keep your oven temperature accurate
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- Dual layer observation window with 1/2″ tempered safety glass.
- 3″ thermal insulation prevents heat loss and minimizes the enclosures outer surface temperature.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- All ovens shipped from our New Jersey or Nevada location for quick delivery, and come with two year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes.
Manufactured in accordance with
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
AT32e
Overview
With Ai internal shelf heating technology, each shelf in these ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.
Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.
Features
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- Three alumimum heating shelves with individual in-shelf temperature sensor, temperature controller and heater.
- Dual layer observation window with 5/8″ tempered safety glass.
- 3rd gen low proportional gain temperature controllers keep your oven temperature accurate.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in swivel casters with leveling feet.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- All ovens shipped from our New Jersey or Nevada location for quick delivery.
- 2-year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes
Manufactured in accordance with
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
AT50e
Overview
Introducing the new Ai 14-shelf capacity 5.0 cu ft ECO vacuum ovens with LED lights. Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.
Features
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- 3rd gen low proportional gain temperature controllerskeep your oven temperature within +/- 1F accuracy, ineither F or C.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- Dual layer observation window with 3/4″ tempered safety glass.
- 3″ thermal insulation prevents heat loss and minimizes the enclosure’s outer surface temperature.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- Built-in swivel casters with leveling feet.
- For improved temperature tracking, run the auto-tune procedure as outlined in the manual.
- All ovens shipped from our New Jersey or Nevada location for quick delivery.
- 2-year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance within 30 minutes from our engineers.
Manufactured in accordance with
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006
- CE
| Specification | Ai 0.9 cu ft. Vacuum Oven | Ai 0.9 cu ft. Vacuum Oven | Ai 3.2 Cu Ft Vacuum Oven | Ai 14 Shelf Max 5 CF Vacuum Oven | |
| Electrical Requirements | 110V 50/60Hz 1-PH, 1200 watts, 11A | 110V 50/60Hz 1-PH, 1200 watts, 11A | 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts or 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts | 110V or 220V +/-10% 50/60Hz 1-PH, 3,000 watts | |
| Temperature control | Range: ambient to 150°CWarm-up time to 480°F: 80 minutes (Approx.) | Range: ambient to 150°CWarm-up time to 480°F: 80 minutes (Approx.) |  Controller: 3rd gen low proportional gain, microcomputer PID controlled Range: ambient to 150°C Display units: Fahrenheit or Celsius Uniformity: +/- 5% of set point Dwelling timer range: 1 to 9999 minutes Warm-up time to 100°F: 35 minutes Warm-up time to 480°F: 60 minutes | Controller: low proportional gain, microcomputer PID controlled Range: ambient to 150° Display units: Fahrenheit or Celsius Uniformity: +/- 7% of setpoint Dwelling timer range: 1 to 9999 minutes | |
| Chamber Dimensions | 12 x 12 x 11″ / 0.9 cubic feet | 12 x 12 x 11″ / 0.9 cubic feet | Size: 18 x 18 x 18″ Material: Stainless steel Capacity: 3.2 cubic feet | Size: 19.75 x 21.5 x 19.75″ Material: Stainless steel Capacity: 5.0 cubic feet | |
| Shelves Included | 4 | 4 | Heated shelves: 3 non-removable aluminum shelves, 17.5 x 17.25″ (WxD) each Optional stackable aluminum shelves: 17.5 x 17.25 x 2.25″ (WxDxH) Total area without stackable shelves: 302 x 3 = 6 sq ft or 906 inch2 Total area with 3 stackable shelves: 302 x 6 = 12 sq ft or 1812 inch2 Distance between shelves (without stackable shelves): 4.75 inches Distance between shelves (with 3 stackable shelves): 2.25 inches Max. load capacity per shelf: 20 Lbs | Shelf size: 19.25 x 21 x 0.5″ (WxDxH) Material: aluminum Style: pan-shape Capacity: 14 shelves max. Comes standard with oven purchase: 7 shelves Total area with 14 shelves: 39.3 sq ft or 5660 sq inch Distance between the most adjacent shelves: 1.25″ | |
| Maximum Shelf Capacity | 8 | 8 | – | – | |
| Ultimate Vacuum Level | Better than 500 microns/military | Better than 500 microns/military | Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: 1/4″ ball valve Vacuum pump: Sold separately | Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude) Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: KF25 flange x 1 Vacuum pump: Sold separately | |
| Vacuum Port Connection | KF 25 flange | KF 25 flange | – | – | |
| Gas Inlet Connection | 3/8″ hose barb | 3/8″ hose barb | – | 3/8″ hose barb | |
| Built-In White LED Lights | ✓ | ✓ | ✓ | ✓ |
