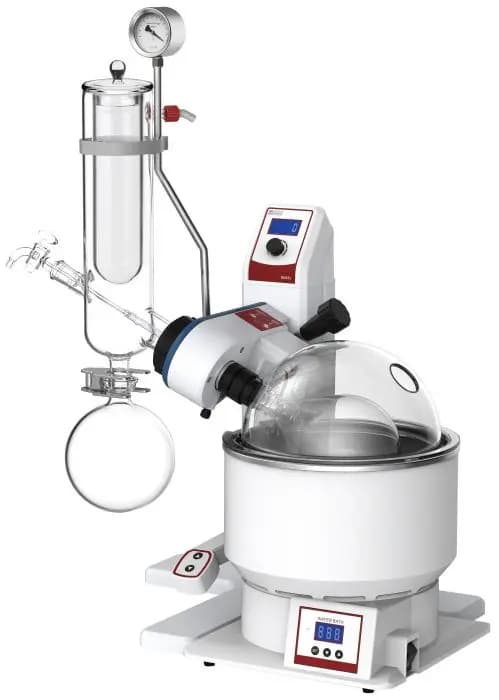

Features
- ETL tested to UL and CSA standards. CE certification optional.

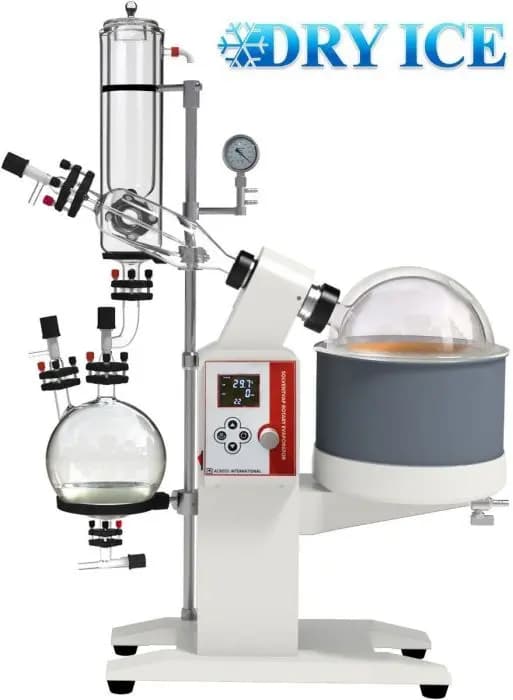

- No chiller needed, utilizes dry ice for optimal efficiency.
- Water bath cover gives you uniform temperature inside evaporation flask as well as energy saving by reducing heat loss. It also creates a better lab environment by preventing heat and humidity from escaping.
- Solvent-resistant PTFE and Viton gaskets, ensuring long time operation.
- Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
- Downward-condensing vacuum connection design ensures safe vacuum operation.
- Motorized water bath lifting for precise control.
- Easy, straight-forward visual operation with digital speed and temperature display.
- PID temperature controller ensures accurate temperature control is maintained.
- One year warranty on rotary evaporator except for glassware and all sealing gaskets.
| SolventVap 2L Evaporator | SolventVap 5L Evaporator
| |
| Electrical requirements
| 110V 60Hz 1~phase, 1,340 watts (heater: 1,300 watts, rotation motor: 40 watts) | 110V 60Hz single phase, 2300 watts, 21A or 220V 50/60Hz single phase, 2300 watts, 10.5A Rotation motor: 300 watts |
| Glass material | High borosilicate glass 3.3 | High borosilicate glass 3.3 |
| Evaporating flask
| Capacity: 0.13 gallon (0.5L), 0.26 gallon (1L) or 0.53 gallon (2L) Maximum load: Not to exceed 60% of the flask’s capacity Rotation speed: 10 to 280 rpm Evaporating speed: 20 ml per minute Lifting: weight balancing manual control with lock Max lifting distance: 4 inches (extendable to 10 inches) | Capacity: 1.32 gallon (5 liters) Maximum load: Not to exceed 60% of the flask’s capacity Sealing flange: 2″ diameter Rotation speed: 10 to 140 rpm Evaporating speed: 0.5 gallon/hour (water), 1 gallon/hour (alcohol) |
| Receiving flask
| 0.26 gallon (1L) | 0.79 gallon (3 liter) |
| Condenser | Glassware: Vertical cold trap condenser with lid Vacuum connection: 3/8″ hose barb x 1 | Glassware: Vertical cold trap (dry ice) condenser with lid Vacuum connection: 3/8″ hose barb x 1 |
| Working environment
| 5 to 95F | 5 to 95F |
| Water bath
| Temperature range: ambient to 95C Temperature controller: digital Capacity: 6.5 L Material: stainless steel Dimensions: 10″ diameter x 5″ depth x 9.75″ height Media: distilled water only Max. water level: not to exceed 1″ from the top rim of the bath Number of heaters: one | Temperature range: ambient to 99C (210F) Temperature controller: digital Dimensions: 11.4″ diameter x 6.7″ depth x 9″ height Material: stainless steel Media: distilled water only Max. water level: not to exceed 1″ from the top rim of the bath Number of heaters: one Drain port: one Exterior liner: rubber Lifting: motoriezed Maximum lifting distance: 4 inches |
| Vacuum
| Connection: 3/8″ hose barb x 1 Sealing: PTFE + Viton gaskets Ultimate vacuum: < 3 torrs | Vacuum level: < 3 torrs Sealing: PTFE + Viton gaskets Connection: 3/8″ hose barb x 1 |
| Safety | Dry-run, over-temp shut-off, fuse protections | Dry-run, over-temp shut-off, built-in circuit breakers |
| Unit/shipping weight | 21 / 40 Lb | 105 Lb (evaporator), 57 Lb (glassware) |
| Unit/shipping dimensions
| 22 x 12.5 x 26″ / 26 x 21 x 29″ (WxDxH) | 29 x 17 x 35″ /30 x 15.7 x 42″ (WxDxH) |
| Warranty | One year warranty on rotary evaporator except glassware and all sealing gaskets. Glassware may have minute blemishes that will not affect the function. If you believe there are imperfections on your glassware, please contact us. We check all our inventory and make sure no defective glassware is sent to our customers. | |

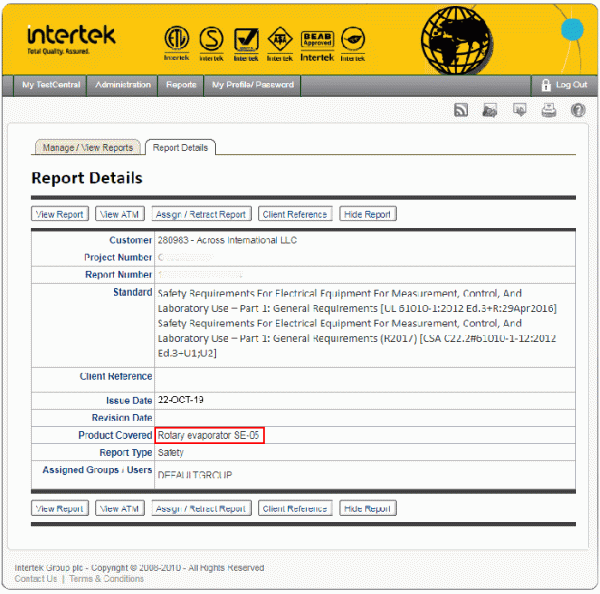

| Compliance | ETL tested to UL and CSA standards | UL 61010-1: 2012 Ed.3 + R: 29 Apr 2016 CSA C22.2# 61010-1-12: 2012 Ed.3+ U1; U2 (R2017) CE |
| Part description | Quantity | |
| Ai SolventVap rotary evaporator and water bath | 1 set | |
| Vertical cold trap condenser with 1 vacuum port and lid, glass | 1 pc | |
| round shaped rotating evaporating flask, glass | 1 pc | |
| receiving flask with detachable drain port | 1 pc | |
| Three-way tee vapor buffering flask, glass | 1 pc | |
| Glass receiving flask & condenser connector elbow with PTFE open/close switch | 1 set | |
| Receiving flask glass vacuum port with PTFE open/close valve | 1 set | |
| Glass material feeding port with PTFE open/close valve | 1 set | |
| Glass vapor duct and PTFE vacuum seal kit (pre-installed) | 1 pc | |
| PTFE extension feeding hose | 1 pc | |
| Stainless steel pole and mechanical vacuum gauge with 2 hose barb connection | 1 pc | |
| Rubber-wrapped condenser and receiving flask support and bracket | 3 pcs | |
| Flask quick clamp (4 smaller pcs for condenser, receiving flask and feeder, 1 larger pc for 3-way flask) & centering ring | 6 sets | |
| GL14 connector | 1 pc | |
| Allen key and backup inner hex screws | 4 pcs | |
| Ai plexiglass water bath cover for SolventVap | 1 pc | |
| Users manual | 1 pc |
