Features

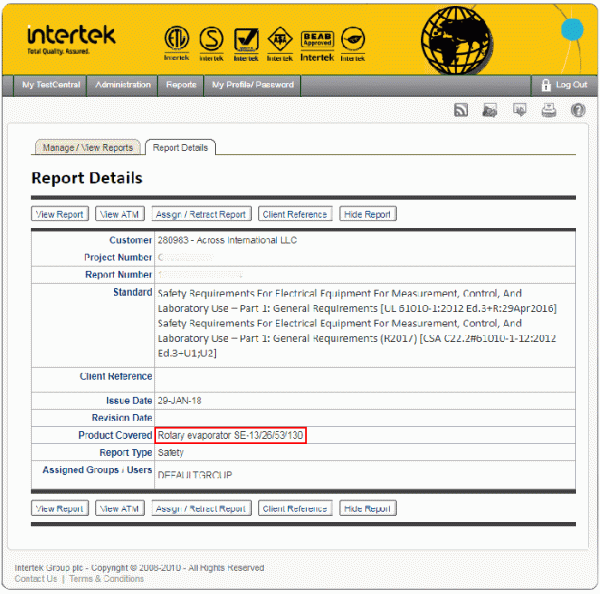

- ETL tested to UL and CSA standards. CE certification optional.
- Solvent-resistant PTFE and Viton gaskets, ensuring long time operation.
- Water bath coverenhances safety by protecting evaporating flask and the material inside; it gives you uniform temperature inside evaporation flask as well as energy saving by reducing heat loss. It also creates a better lab environment by preventing heat and humidity from escaping.
- Digital water bath operates from ambient temperature to 99C (210F) with PID temperature control.
- Specialized motor with extremely compact, intermeshed worm and worm gear provides precise driving for very quiet, vibration-free operation.
- Downward-condensing vacuum connection design ensures safe vacuum operation.
- Motorized water bath lifting for precise control.
- Easy, straight-forward visual operation with digital speed and temperature display.
- PID temperature controller ensures accurate temperature control is maintained.
| Â | Ai 5L 110V Rotary Evaporator | Ai 10L 220V Rotary Evaporator | Ai 20L 220V Rotary Evaporator | Ai 50L 220V Rotary Evaporator |
| Electrical Requirements | 110V 60Hz single phase, 2300 watts, 21A | 220V 50/60Hz single phase, 3800 watts, 17.3A | 220V 50/60Hz single phase, 4300 watts, 20A | 220V 50/60Hz single phase, 6400 watts, 29A |
| Glass Material | High borosilicate glass 3.3 | High borosilicate glass 3.3 | High borosilicate glass 3.3 | High borosilicate glass 3.3 |
| Evaporating Flask | 5L. Maximum load not to exceed 60% capacity. | 10L. Maximum load not to exceed 60% capacity. | 20L. Maximum load not to exceed 60% capacity. | 50L. Maximum load not to exceed 60% capacity. |
| Rotation Speed / Evaporation Speed | 10-140 RPM / 0.5 gallons per hour (water), 1 gallon per hour (alcohol) | 10-130 RPM / 0.75 gallons per hour (water), 1.5 gallons per hour (alcohol) | 10-130 RPM / 1 gallon per hour (water), 2 gallons per hour (alcohol) | 10-110 RPM / 2 gallons per hour (water), 4 gallons per hour (alcohol) |
| Receiving Flask Size | 3L | 5L | 10L | 20L |
| Condenser | Glassware: Dual vertical circulating coils. Chilling fluid connection: 3/8″ hose barb x 2 | Glassware: Main + auxiliary triple-circulating cold traps, vertical. Chilling fluid conneciton: 3/8″ hose barb x 4 (2 on main + 2 on auxiliary) | Glassware: Main + auxiliary triple-circulating cold traps, vertical. Chilling fluid conneciton: 3/8″ hose barb x 4 (2 on main + 2 on auxiliary) | Glassware: Main + auxiliary triple-circulating cold traps, vertical. Chilling fluid connection: 3/8″ hose barb x 4 (2 on main + 2 on auxiliary) |
| Water Bath | Ambient to 99°C. Digital PID temperature control. Stainless steel. Media: water. | Ambient to 99°C. Digital PID temperature control. Stainless steel. Media: water. | Ambient to 99°C. Digital PID temperature control. Stainless steel. Media: water. | Ambient to 99°C. Digital PID temperature control. Stainless steel. Media: water. |
| Vacuum | Ultimate vacuum level: < 3 torrs. Connection: 3/8″ hose barb x 1. Sealing: Viton & PTFE gaskets. | Ultimate vacuum level: < 3 torrs. Connection: 3/8″ hose barb x 1. Sealing: Viton & PTFE gaskets. | Ultimate vacuum level: < 3 torrs. Connection: 3/8″ hose barb x 1. Sealing: Viton & PTFE gaskets. | Ultimate vacuum level: < 3 torrs. Connection: 3/8″ hose barb x 1. Sealing: Viton & PTFE gaskets. |
| Unit Weight / Shipping Weight | 162 lbs / 180 lbs | 280 lbs / 335 lbs | 350 lbs / 390 lbs | 475 lbs / 525 lbs |
| Unit Dimensions / Shipping Dimensions (WxDxH) | 30 x 15.7 x 42″ / 48 x 40 x 40″ | 36 x 22 x 67″ / 39 x 22 x 44″ (evaporator), 30 x 25 x 28″ (glassware) | 49 x 23.5 x 82.5″ / 41 x 24 x 47″ (evaporator), 34 x 29 x 31″ (glassware) | 52 x 30 x 92″ / 46 x 28 x 58″ (evaporator), 41 x 34 x 32″ (glassware) |

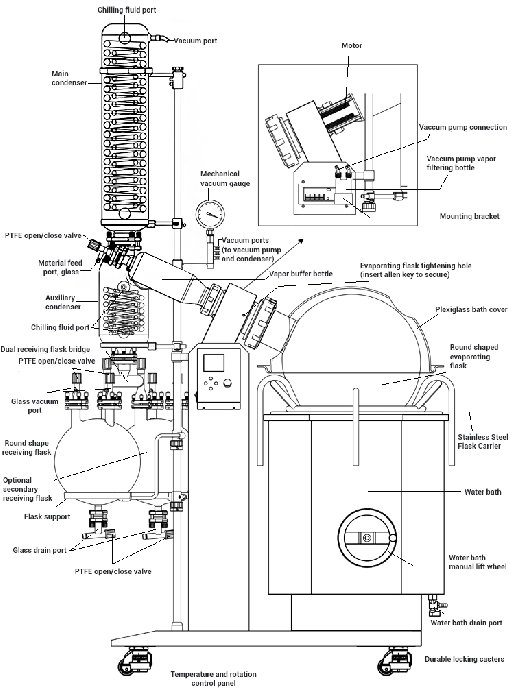

| Â Ai SolventVap rotary evaporator and water bath | |
| Â Vapor filtering bottle | |
| Â Vertical condenser with 2 chilling water ports and 1 vacuum port, glass | |
| Â round shaped rotating evaporating flask, glass | |
| Â receiving flask with detachable drain port | |
| Â Three-way tee vapor buffering flask, glass | |
| Â Glass receiving flask & condenser connector elbow with PTFE open/close switch | |
| Â Receiving flask glass vacuum port with PTFE open/close valve | |
| Â Glass material feeding port with PTFE open/close valve | |
| Â Glass vapor duct with seal (pre-installed) | |
| Â PTFE vacuum sealing kit (pre-installed) | |
| Glass material feeding port with PTFE open/close valve, PTFE extension hose | |
| Â PTFE extension feeding hose | |
| Â Stainless steel pole | |
| Â Mechanical vacuum gauge with 2 hose barb connectors | |
| Â Rubber-wrapped condenser and receiving flask support and bracket | |
| Â Flask quick clamp | |
| Â PTFE centering ring for sealing flanges | |
| Â connector | |
| Â NEMA L5-30 30A 125V power plug | |
| Â Ai plexiglass water bath cover for SolventVap 5L | |
| Evaporating flask cap spanner | |
| Â User’s manual |
