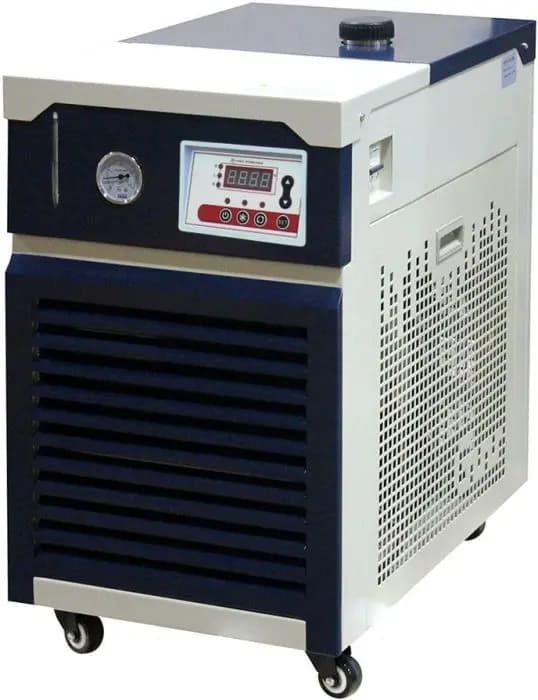

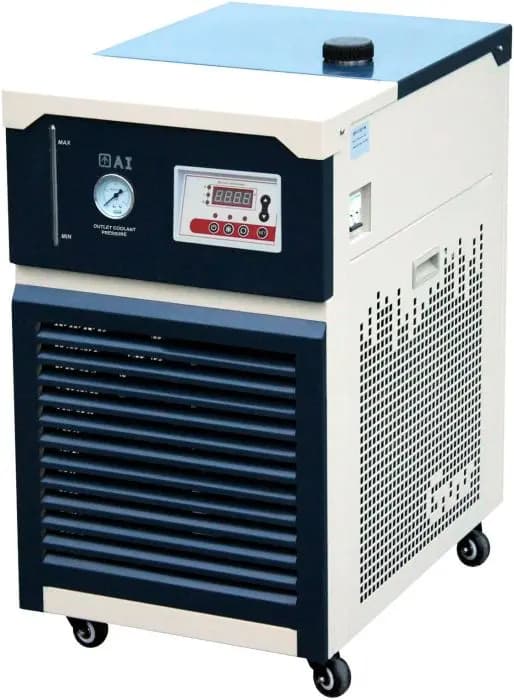

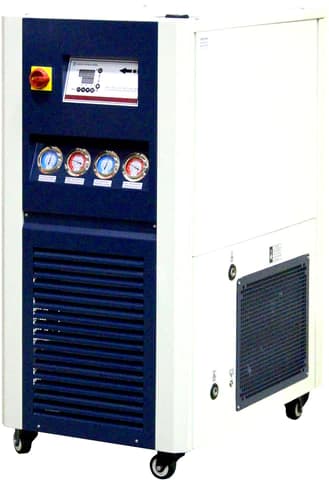

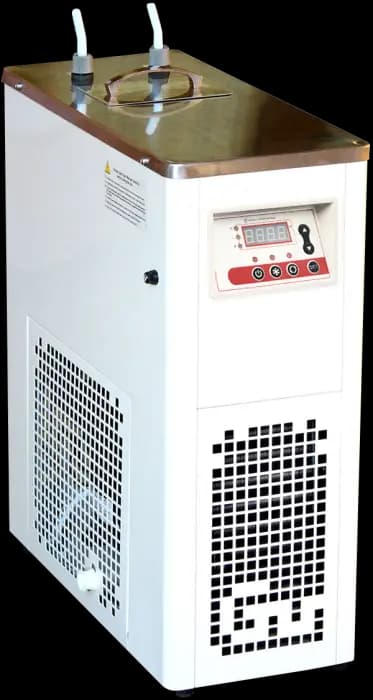

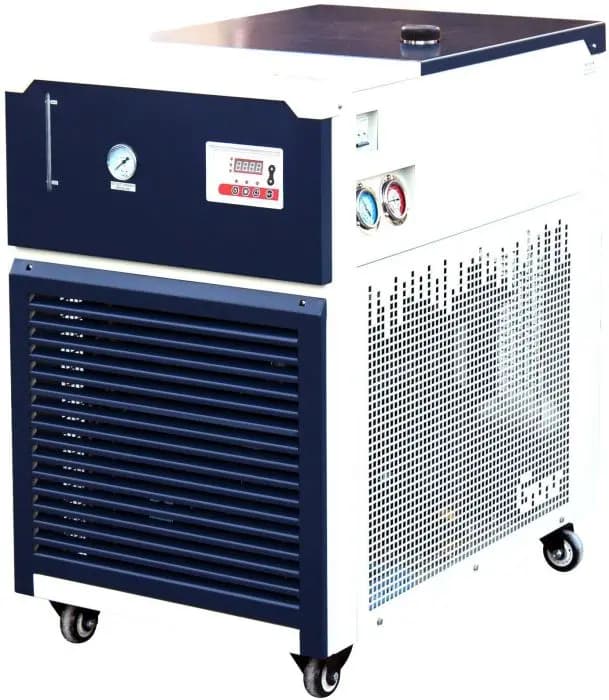

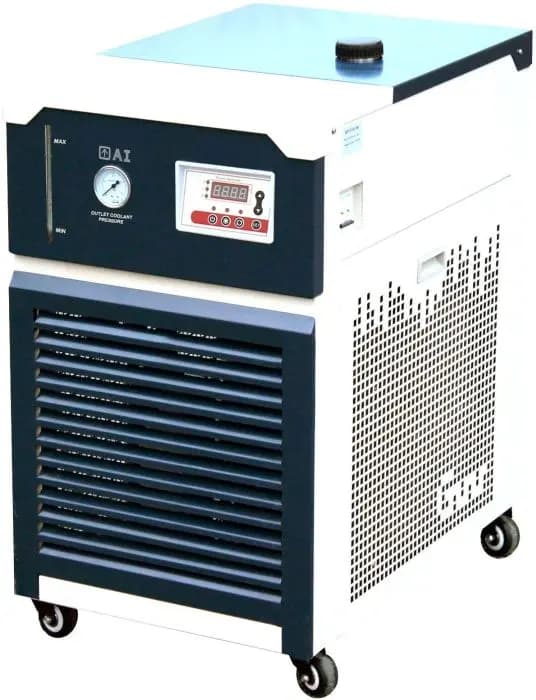

Ai Recirculating Chillers with Centrifugal Pump

$ 2,390.00 – $ 17,991.00

Ai C Series recirculating chillers are the true thermostatic control laboratory chillers. This closed laboratory Chiller is ideal for applications such as cooling rotary evaporators, analytical instrumentation, laser etching, ICP, vacuum systems, plasma etching, and jacketed reactors. This system can also be used as a replacement to Tap water cooling in laboratory applications. Ai C Series are compressor-based recirculating chillers that offer outstanding performance and high reliability as well as quiet operation and ease of use. A powerful force/suction pump provides constant flow rates, while a microprocessor PID controller gives you the ideal solution when you need precise temperature control or cooling below ambient temperature.

Details

Features

ETL tested to UL and CSA standards
No dry ice or liquid nitrogen needed
360 degree rotating chilling fluid connectors
ANSI standard all stainless steel reservoir
All steel construction for durability
Small footprint saves valuable lab space
Cost saving as the water consumption is completely eliminated
Eco-friendly R404A refrigerant
Insulated tubing included

Technical Information

	Ai -15ºC Chiller	Ai -30ºC 10L Chiller	Ai -30ºC 17L Chiller	Ai -30ºC 30L Chiller	Ai -30ºC 40L Chiller	Ai -75ºC 10L Chiller
Electrical Requirements	110V 60Hz 1-PH	220V 60Hz 1-PH	220V 60Hz 1-PH	220V 60Hz 1-PH	220V 60Hz 1-PH	220V 60Hz 1-PH 22A, 4750 watts
Compressor	Embraco. Single compressor. R404A refrigerant.	Panasonic. Single compressor. R410A refrigerant.	Panasonic. Single compressor. R410A refrigerant.	Panasonic. Single compressor. R410A refrigerant.	KK. Single compressor. R404A refrigerant	KK. 2 compressor. R404A Refrigerant Power: 208-230V
Recirculating Pump	Pump speed 17L/min. Pressure 2.9 PSI.	Pump speed 20L/min. Pressure 5.8 PSI.	Pump speed 20L/min. Pressure 5.8 PSI.	Pump speed 20L/min. Pressure 5.8 PSI.	Pump speed 20L/min. Pressure 5.8 PSI.	Pump type: Centrifugal Model: 25PLBR30-10 Pumping speed: 8 gallon/min or 30L/min Power: 280W Pressure: 1 bar
Reservoir	Type 304 polished stainless steel. 3L capacity. 3/8″ hose barb chilling fluid connection.	Type 304 polished stainless steel. 10L capacity. 1/2″ hose barb chilling fluid connection.	Type 304 polished stainless steel. 17L capacity. 1/2″ hose barb chilling fluid connection.	Type 304 polished stainless steel. 30L capacity. 1/2″ hose barb chilling fluid connection.	Type 304 polished stainless steel. 40L capacity. 3/4″ NPT chilling fluid connection.	Capacity: 10 liters or 2.6 gallons Dimensions: 17.5 x 7 x 8.5 inches (LxWxH) Material: Type 304 stainless steel Chilling fluid connection: 1/2″ NPT Drain port: 3/8″ barb
Temperature Controller	Digital microprocessor PID controlled. Displays as ºC. Temperature accuracy ±2ºC. Ambient to -15ºC.	Digital microprocessor PID controlled. Displays as ºC. Temperature accuracy ±2ºC. Ambient to -30ºC.	Digital microprocessor PID controlled. Displays as ºC. Temperature accuracy ±2ºC. Ambient to -30ºC.	Digital microprocessor PID controlled. Displays as ºC. Temperature accuracy ±2ºC. Ambient to -30ºC.	Digital microprocessor PID controlled. Displays as ºC. Temperature accuracy ±2ºC. Ambient to -30ºC.	Digital microprocessor PID controlled
Cooling Capacity (if working environment is 25°C / 77°F)	@ 0°C/32°F: 400 W	@ 32°F/0°C: 1250W @ 14°F/-10°C: 800W @ -4°F/-20°C: 300W @ -22°F/-30°C: 150W	@ 32°F/0°C: 1750W @ 14°F/-10°C: 1100W @ -4°F/-20°C: 700W @ -22°F/-30°C: 300W	@ 32°F/0°C: 2800W @ 14°F/-10°C: 1800W @ -4°F/-20°C: 1000W @ -22°F/-30°C: 500W	@ 32°F/0°C: 5000W @ 14°F/-10°C: 3000W @ -4°F/-20°C: 1800W @ -13°F/-25°C: 1000W	@ -40°C: 2000W @ -50°C: 1500W @ -60°C: 1000W @ -75°C: 280W @ -78°C: 180W
Recommended Coolant	At 50ºF/10ºC or higher: Distilled water. Between 50ºF/10ºC to 5ºF/-15ºC: 50% ethylene glycol + 50% distilled water	At 50ºF/10ºC or higher: Distilled water. Between 50ºF/10ºC to 5ºF/-15ºC: 50% ethylene glycol + 50% distilled water	At 50ºF/10ºC or higher: Distilled water. Between 50ºF/10ºC to 5ºF/-15ºC: 50% ethylene glycol + 50% distilled water	At 50ºF/10ºC or higher: Distilled water. Between 50ºF/10ºC to 5ºF/-15ºC: 50% ethylene glycol + 50% distilled water	At 50ºF/10ºC or higher: Distilled water. Between 50ºF/10ºC to 5ºF/-15ºC: 50% ethylene glycol + 50% distilled water	Digital microprocessor PID controlled
Working Environment	-15°C/5°F to 25°C/77°F at <66% humidity	25°C/77°F at <66% humidity	25°C/77°F at <66% humidity	25°C/77°F at <66% humidity	25°C/77°F at <66% humidity	: between 5°C to 35°C Humidity: < 70% controller
Unit / Shipping Dimensions	16 x 9 x 22″ / 24 x 14 x 30″	26.5 x 17 x 27″ / 32 x 22 x 36″	26.5 x 18 x 30.5″ / 32 x 23 x 40″	30 x 19.5 x 34″ / 38 x 25 x 45″	40 x 25 x 41″ / 46 x 30 x 51″	38.5 x 25 x 52” / 44 x 30 x 64”
Unit / Shipping Weight (WxDxH)	60 lbs / 105 lbs	155 lbs / 210 lbs	175 lbs / 235 lbs	220 lbs / 270 lbs	365 lbs / 480 lb	515 lbs / 615 lbs

Downloads

Ai C Series recirculating Chillers-Manual
