SDS13.H
Overview

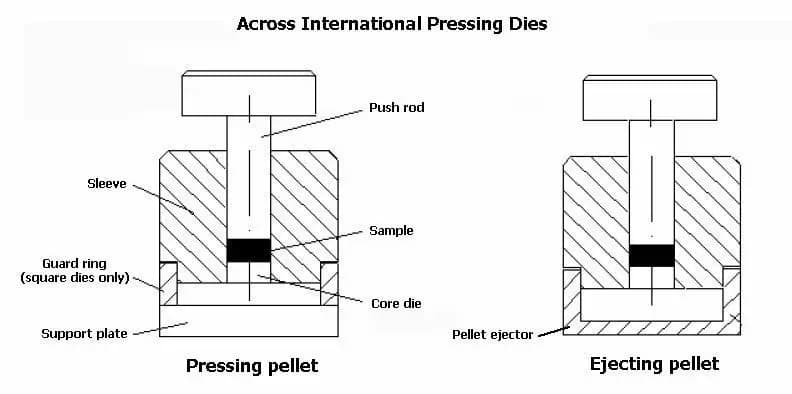

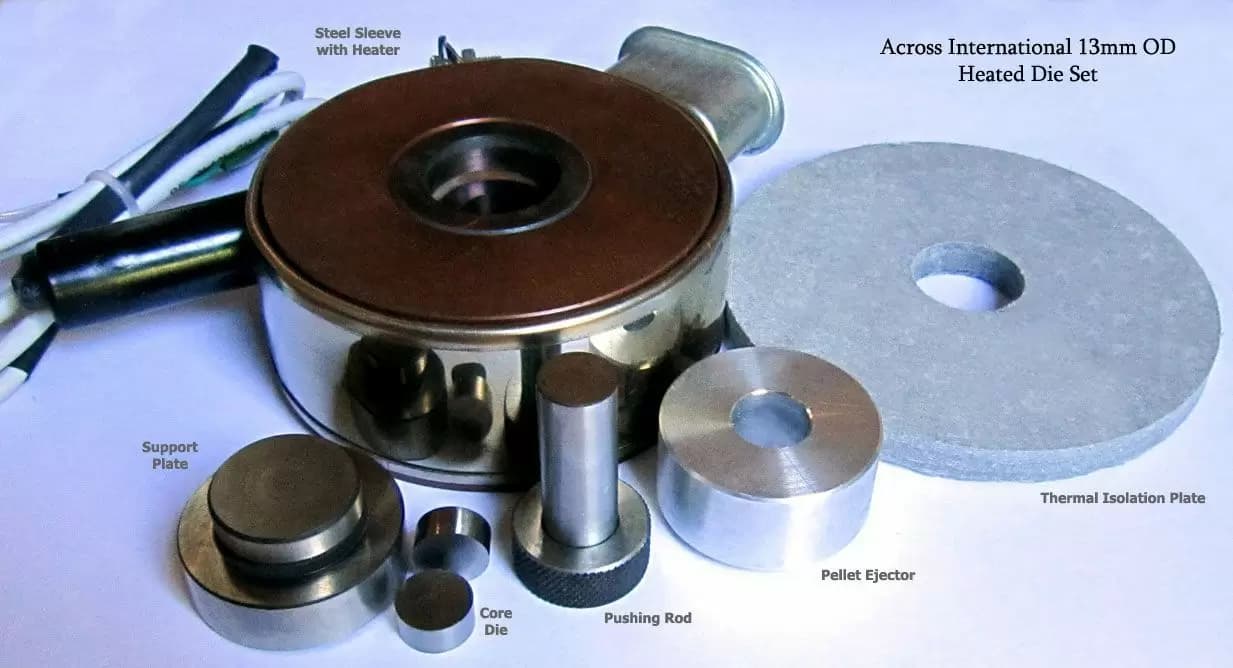

A set of 13mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 13mm diameter cylinder-shape pellets. Heating system with programmable digital temperature controller allows heating up to 250C.
Die set includes
- Two 13mm ID cylinder-shape core dies made of highly polished hardened steel
- One steel sleeve with PT-100 heater and sensor
- One steel support plate
- One thermal isolation plate
- One push rod
- One cylinder pellet ejector

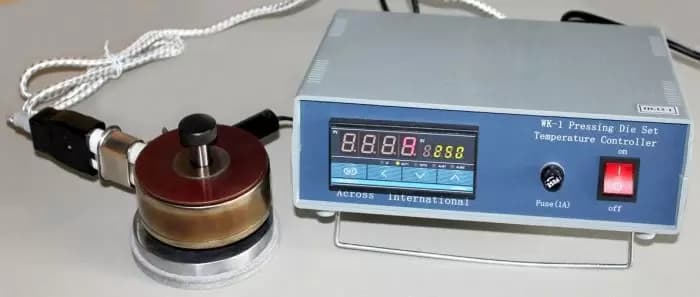

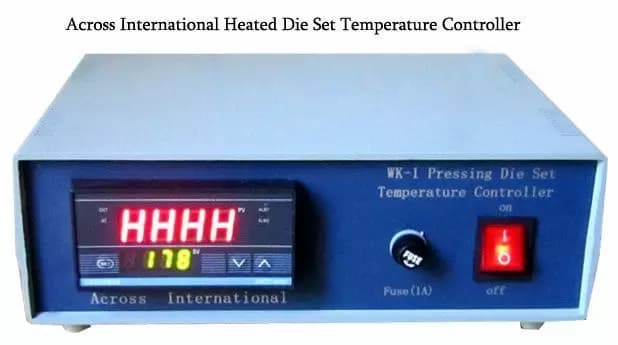

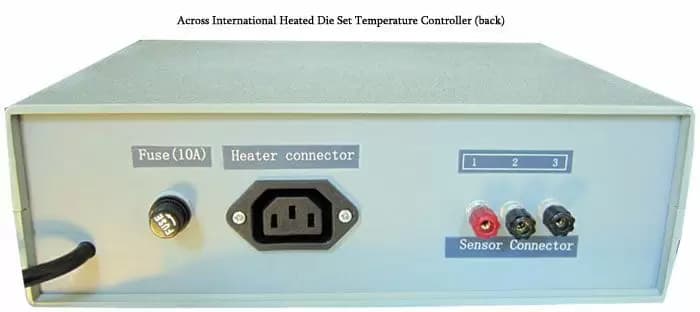

- One WK-1 digital temperature controller
Important
- Always wear protection goggles during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never apply pressure beyond 20 tons
SDS25.H
Overview
A set of 25mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 25mm diameter cylinder-shape pellets. Heating system with programmable digital temperature controller allows heating up to 250C.
Die set includes
- Two 25mm ID cylinder-shape core dies made of highly polished hardened steel
- One steel sleeve with PT-100 heater and sensor
- One steel support plate
- One thermal isolation plate
- One push rod
- One cylinder pellet ejector
- One WK-1 digital temperature controller
Important
- Always wear protection goggles during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never apply pressure beyond 70 tons
SDS50.H
Overview
A set of 50mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 50mm diameter cylinder-shape pellets. Heating system with programmable digital temperature controller allows heating up to 250C.
Die set includes
- Two 50mm ID cylinder-shape core dies made of highly polished hardened steel
- One steel sleeve with PT-100 heater and sensor
- One steel support plate
- One thermal isolation plate
- One push rod
- One cylinder pellet ejector
- One WK-1 digital temperature controller
Important
- Always wear protection goggles during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never apply pressure beyond 200 tons
SDS76.H
Overview
A set of 76mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 76mm diameter cylinder-shape pellets. Heating system with programmable digital temperature controller allows heating up to 250C.
Die set includes
- One 76mm ID cylinder-shape core dies made of highly polished hardened steel
- One steel sleeve with PT-100 heater and sensor
- One steel support plate
- One thermal isolation plate
- One push rod
- One cylinder pellet ejector
- One WK-1 digital temperature controller
Important
- Always wear protection goggles during operation
- Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
- Never apply pressure beyond 300 tons
| SDS13.H | SDS25.H | SDS50.H | SDS76.H | |
| Maximum Pressure | 20 tons | 70 tons | 200 tons | 300 tons |
| Maximum Temperature | 250°C | |||
| Rockwell Hardness | Rc 62 | |||
| Diameter (ID) | 13 mm | 25 mm | 50 mm | 76 mm |
| Sleeve Diameter (OD) | 92 mm | 130 mm | 160 mm | |
| Sleeve Height | 40 mm | 45 mm | — | — |
| Height | 75 mm (assembled without sample) | 105 mm (assembled without sample) | 120 mm (assembled without sample) | 135 mm ( assembled without sample) |
| Max. Load Height | 14 mm | 25 mm | — | 30 mm |
| Temperature Step | 1°C | |||
| Power | 215 watts | 270 watts | 800 watts | |
| Temperature Sampling | 3 times per second | |||
| Accuracy | +/- 1% | |||
| Working Environment | 0-50°C, <35% RH humidity | |||
| Pressing Die Tolerance | 0.01-0.02 mm (10-20 micron) | |||
| Material | Core die & push rod: W18Cr4V hardened carbon tool steel Sleeve, ejector & support: Cr12 hardened carbon mold steel | |||
